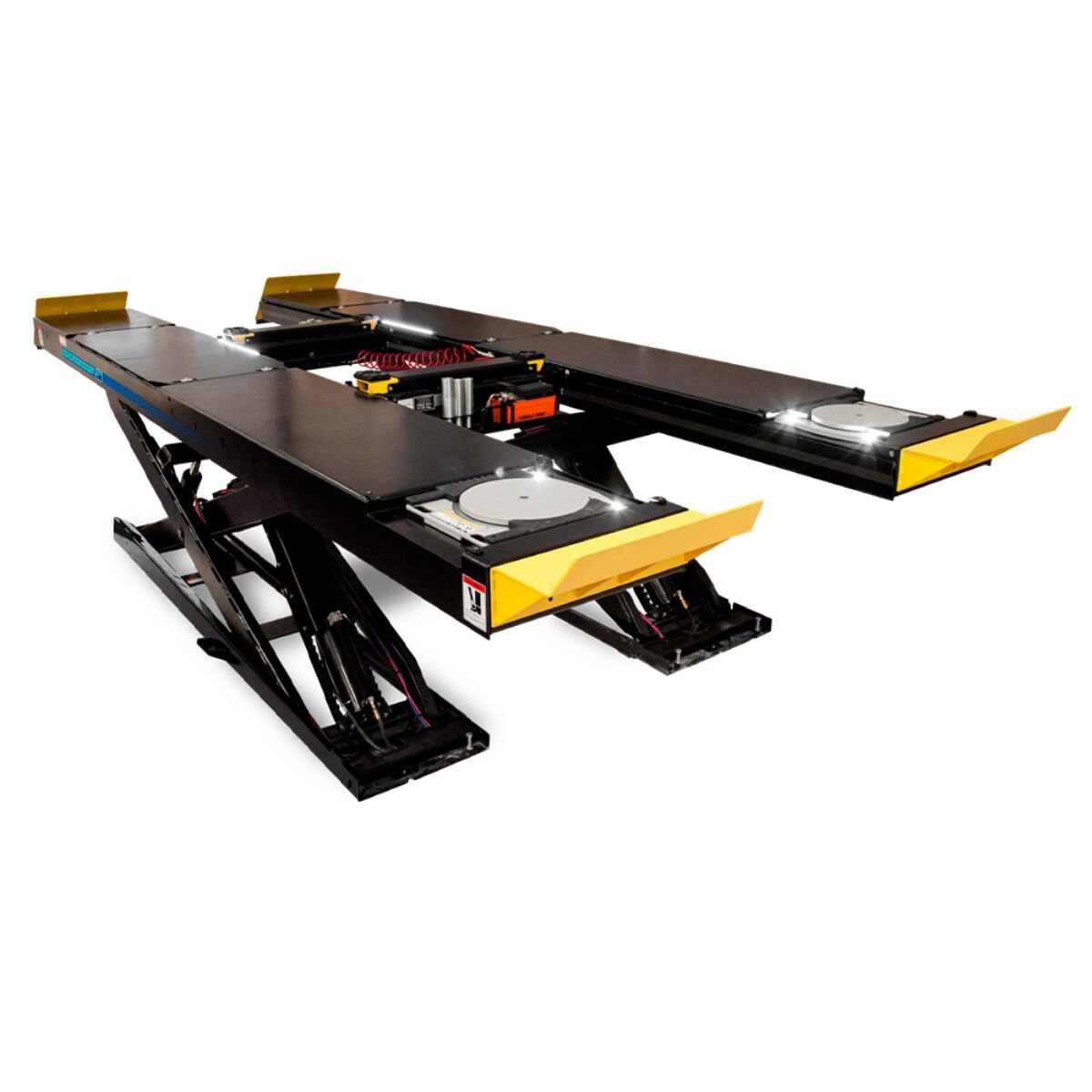

HOFMANN by Challenger 14K Lock & Lighted Alignment Lift - 2 Rolling Jacks

SKU: EELR789APKG
(0)No Reviews yet

Product Description

Hofmann 14k Scissor Alignment Lift

UNMATCHED PRODUCTIVITY, PERFORMANCE AND VALUE

Hofmann Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to fi ve scissor lifts to fi t into the same operating space as four 4-post lifts. Locked and Lighted models provide productivity enhancements while allowing the technician to perform critical tasks while minimizing alignment process operations, by illuminating both inspection and adjustment areas and by sequencing the locking of alignment plates.

TRUE TASK LIGHTING SYSTEM (LIGHTS AND LOCKS MODELS)

  • Patented auto on/off light feature ensures no power when operating in the hazard zone
  • Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
  • Approved for use in Class 1 Division 1 environments for both surface and flush mount models

TRUE TASK LIGHTING SYSTEM (LIGHTS AND LOCKS MODELS)

  • Patented auto on/off light feature ensures no power when operating in the hazard zone
  • Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
  • Approved for use in Class 1 Division 1 environments for both surface and fl ush mount models

Features

  • Maintenance reduced rear slip plates use oversized, encapsulated bearings that roll upward to protect against environment debris
  • Four hydraulic cylinders in a cross aligned arrangement provide secure lifting power and added safety
  • Approach ramps are equipped with end sliders to minimize noise and reduce floor damage
  • Adjustable maximum lift height suits locations with low ceilings
  • Safety systems include:
  • - Mechanical locking with pneumatic safety lock release from the control console
  • - Flow sensing valves within the hydraulic control circuit
  • - Redundant hydraulic safety system with cross aligned hydraulic circuits
  • On-board Filter/Regulator/Lubricator (FRL) provides clean and lubricated air to help reduce maintenance and protect pneumatic systems
  • All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011

Specifications

 Short bay surface mount EELR783APKG
 Short bay flush mount EELR784APKG
 Short bay surface mount
 with lights and locks
 EELR785APKG
 Short bay flush mount with
 lights and locks
 EELR786APKG
 Standard bay surface mount EELR787APKG
 Standard bay flush mount EELR788APKG
 Standard bay surface mount
 with lights and locks
 EELR789APKG
 Standard bay flush mount
 with lights and locks
 EELR790APKG
 Maximum capacity 14,000 lbs (6,350 kg)
 Overall width 92.5" (234.95 cm)
 Width between runways 38" (96.52 cm)
 Overall Length:
 Short Bay (Surface / Flush) 256.19"/222.38" (650.7/564.8 cm)
 Standard Bay (Surface / Flush) 270"/238.63" (685.8/606 cm)
 4 wheel alignment wheelbase 88"-155" (223.52 - 393.7 cm)
 2 wheel alignment wheelbase
 (Short / Standard) Up to 165" (419 cm)/180" (457 cm)
 General service wheel base
 (Short / Standard) Up to 179" (454.7 cm)/194"(492.8 cm)
 Runway surface length
 (Short / Standard) 195.5" (496.6cm)/210" (533.4 cm)
 Runway surface width 26" (66 cm)
 Maximum raised height
 (Surface / Flush) 72" (182.9 cm)/62" (157.5 cm)
 Minimum lowered height
 (Surface / Flush) 10" (25.4 cm)/0" (0 cm)
 Lifting time (at full load) 75-85 Seconds
 Air supply requirements 90-120 PSI
 Power supply requirements 230VAC 1Ph 60Hz 20AMP
 Shipping weights (without jacks):
 EELR783A 6,077 lbs (2,756 kg)
 EELR784A 5,877 lbs (2,665 kg)
 EELR785A 6,306 lbs (2,860 kg)
 EELR786A 6,106 lbs (2,770 kg)
 EELR787A 6,207 lbs (2,815 kg)
 EELR788A 6,007 lbs (2,725 kg)
 EELR789A 6,387 lbs (2,897 kg)
 EELR790A 6,187 lbs (2,806 kg)
 Console dimensions (D x W x H) 16.5" x 14.125" x 45.75"
 (41.9 x 35.9 x 116.2 c m)

 STANDARD ACCESSORIES
7,000 lb lifting capacity roller jacks for 14k scissor lifts Lights and locking turnplates included with specific lift models
 Premium turnplates (LxWxH)   18.5"x19.7"x2" (47x50x5 cm) EAK0289J06A
 Paddle kit EAK0277J28A

   OPTIONAL ACCESSORIES
 Turn plate hold down, shim pad,
 paddle kit
 EAK0277J67A





Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship.  Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense.  Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.

No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence.  This warranty only covers equipment delivered and used within the United States.
