HOFMANN Geodyna 7400L Wheel Balancer with LCD Monitos - High Volume

SKU: EEWB764AL
(0)No Reviews yet

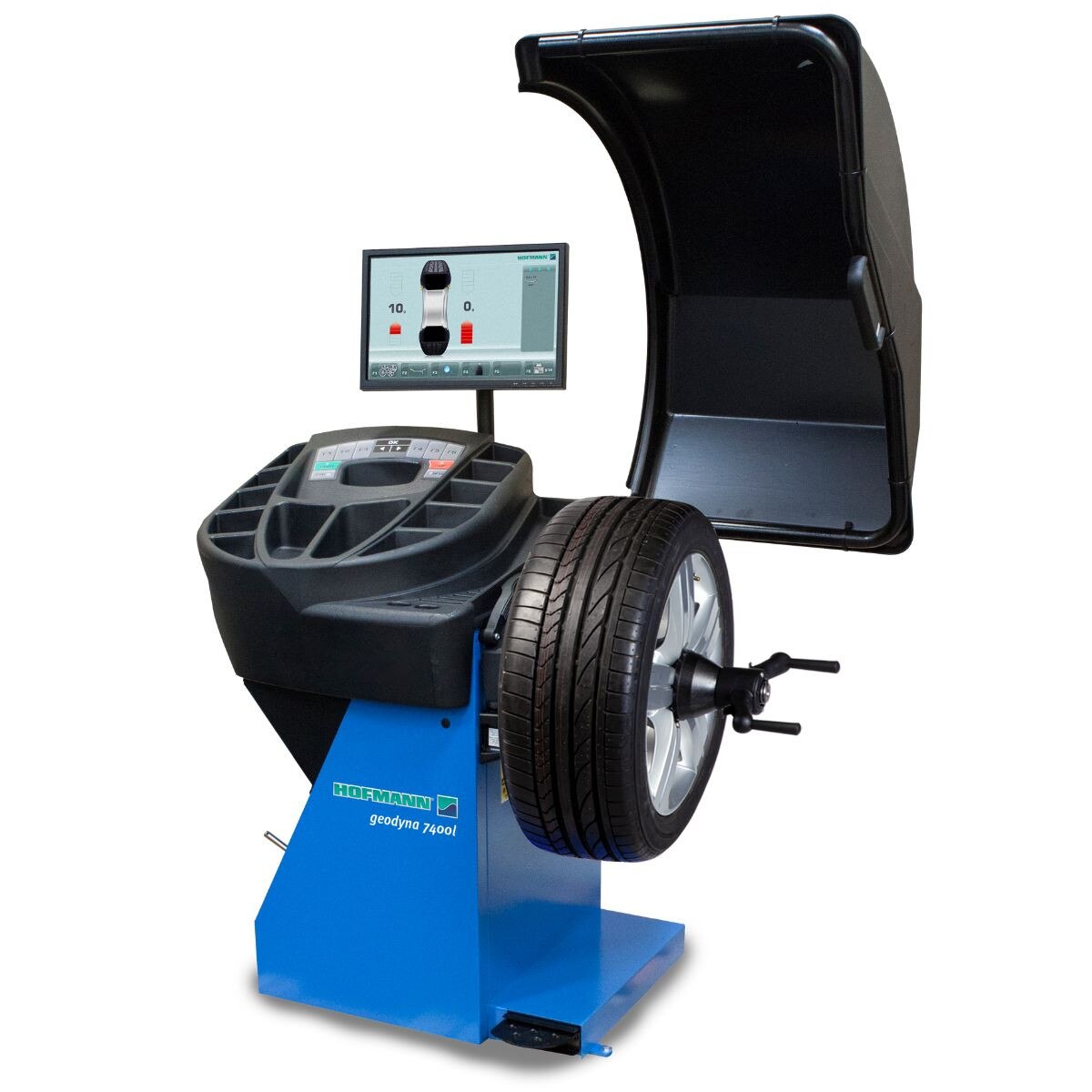

GEODYNA® 7400L
WHEEL BALANCER WITH LCD MONITOR
HIGH VOLUME

PRODUCT DESCRIPTION
Unparalleled speed and accuracy, with non-contact rim width acquisition via smartSonar, exact weight placement via the easyWEIGHT pinpoint laser, and a 19" LCD monitor featuring step-by-step video instructions and an intuitive user interface.

Part Number:  EEWB764AL

easyWEIGHT - Pinpoint indicator light offers an accurate, fast and easy solution to position adhesive weight on the wheel

Accurate and Quick Clamping - With the included cones or the optional stud-hold flange accessory, clamping is fast and easy

Short Balancing Cycle

The geodyna 7400l is equipped with a semi-automatic data entry for rim diameter and offset
smartSonar automatically detects rim width and the measurement cycle is started as soon as the wheel guard has been completely lowered
Intuitive Interface

User-friendly interface where all functions are clearly marked with picture icons
Large digits for the amount of the balance weight and bright indicators for weight position
Fast and intuitive selection of the cycle modes


MotorizedYes
Wheel clampingQuick nut
Diameter of shaft40 mm
Measuring speed< 200 rpm
Balancing accuracy0.035 oz
Length of shaft225 mm
Rim diameter range8" - 32"
Offset range1" - 20"
Rim width range1" - 20"
Max wheel diameter42 inch
Max. wheel weight154 lbs
Input power (VAC)115 VAC 1Ph 50/60 Hz
Dimensions LxWxH54.6" x 34.5" x 72.2"
Net weight308 lbs



Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship.  Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense.  Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.

No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence.  This warranty only covers equipment delivered and used within the United States.
