Challenger CL20 Series 20K Capacity Two-Post Lift
Product Description
Challenger CL20 Series Heavy-Duty Two-Post Adjustable Lift

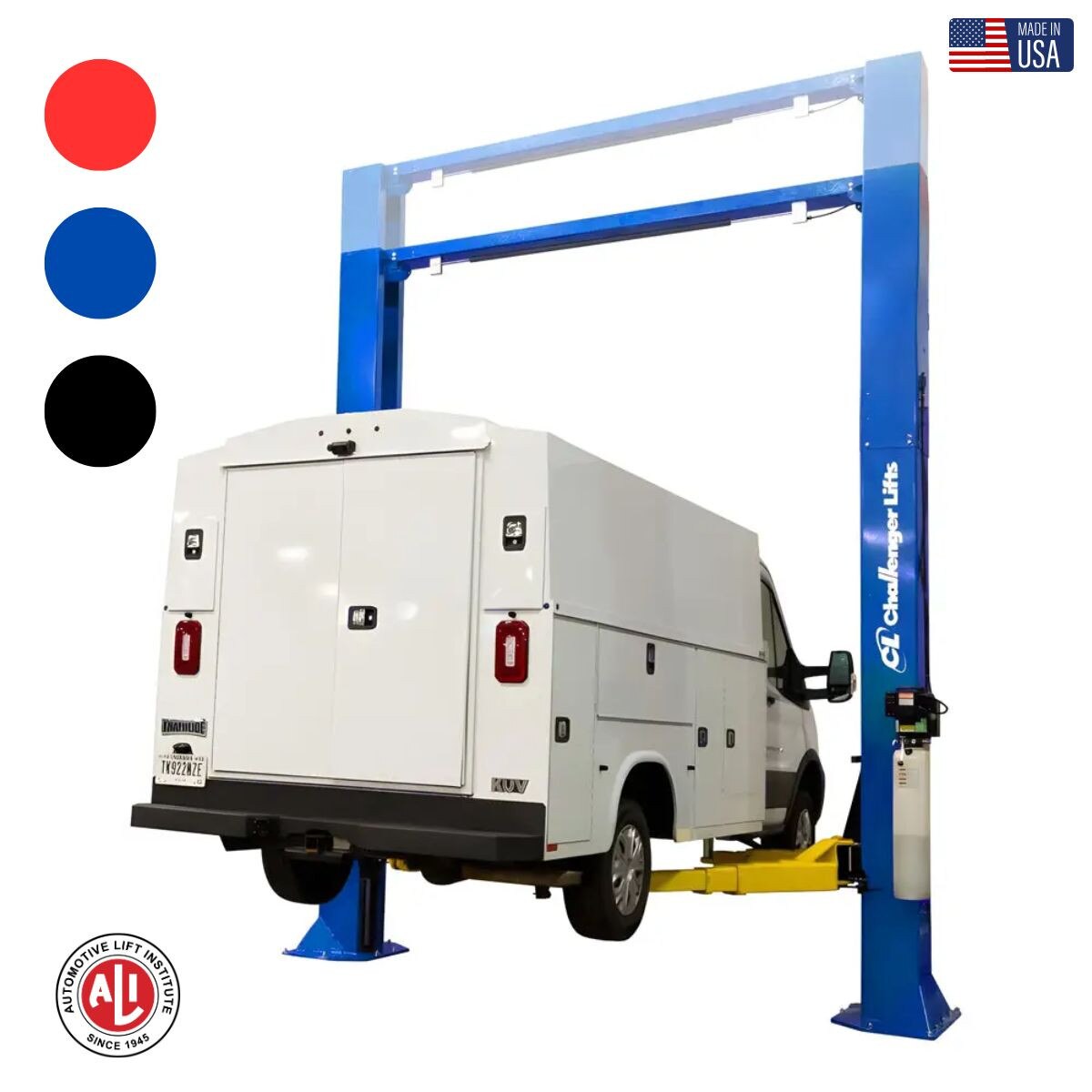

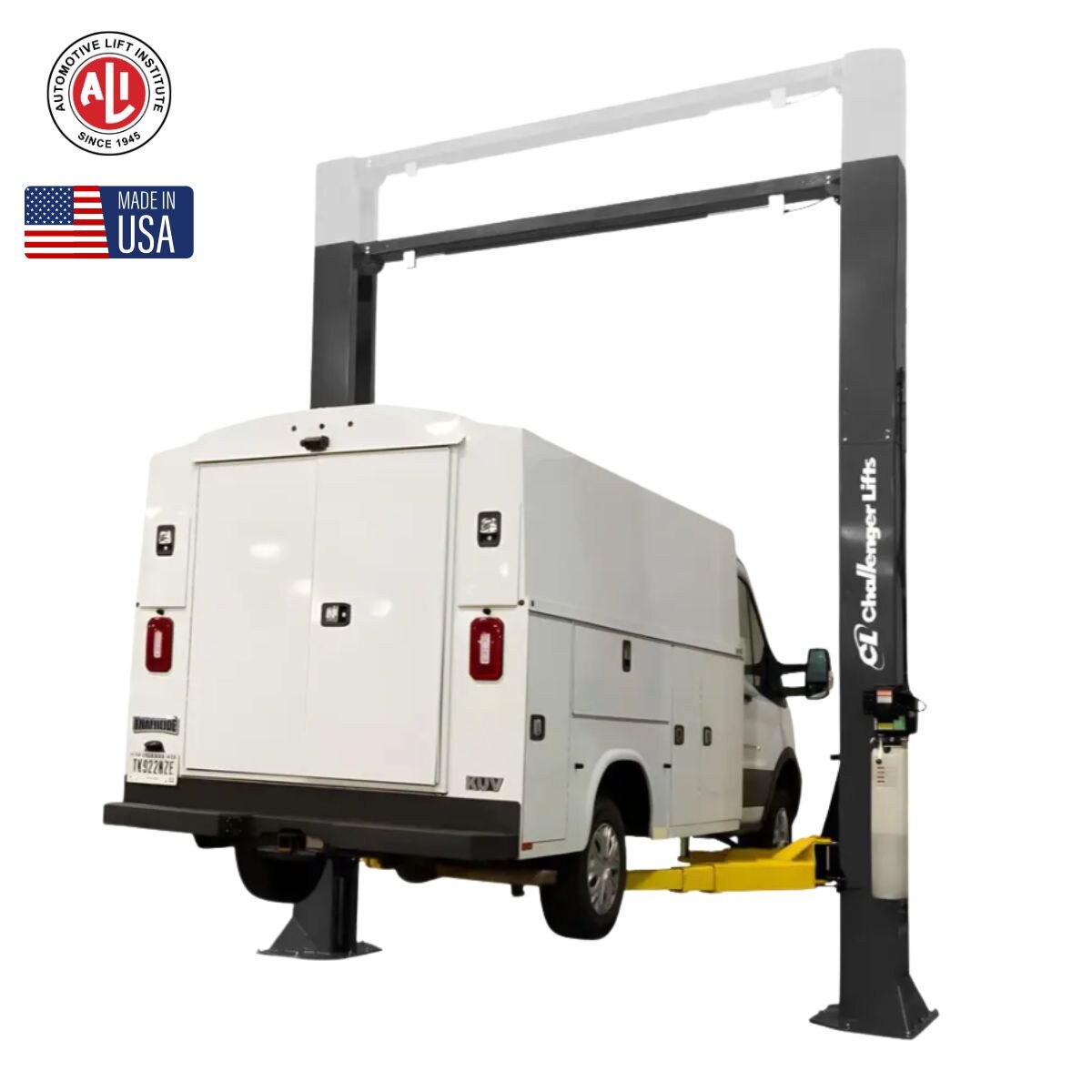

The Challenger CL20 series offers robust lifting solutions tailored for heavy-duty vehicles weighing up to 20,000 lbs. Built for fleet maintenance and commercial use, these lifts feature adjustable columns and 2-stage arms, allowing for flexible configurations to accommodate a variety of vehicles. Optional 2' column extensions are available for shops that need additional height for larger vehicles. Made in the USA and available in three colors—red, blue, and black—the Challenger CL20 series delivers superior durability, versatility, and performance.
Features & Benefits:
- High Capacity: 20,000 lbs., designed for trucks, buses, and other heavy-duty vehicles.
- Adjustable Height: Standard and extended height options available.
- Versymmetric® Technology: Allows for both symmetric and asymmetric lifting, increasing versatility in the service bay.
- 2-Stage Arm Design: Ensures stability and easy positioning for a wide range of vehicles.
- Durable Construction: Made from high-strength steel with a premium powder-coated finish for longevity.
- Padded Overhead Shut-Off System: Prevents vehicle damage by halting lift operation at maximum height.
- Single-Point Lock Release: Easy operation for increased safety and convenience.
- Color Options: Available in red, blue, and black.
- Made in the USA: Crafted with quality and precision to meet the demands of heavy-duty service environments.
Specifications Chart:
Specification | CL20-0 | CL20-2 |
---|---|---|
Description | 20K Standard | 20K Extended Height |
Lifting Capacity | 20,000 lbs. | 20,000 lbs. |
Lift Configuration | Symmetric | Symmetric |
Arm Configuration | 2-Stage Front/Rear | 2-Stage Front/Rear |
Maximum Load Per Arm | 5,000 lbs. | 5,000 lbs. |
Rise Height | 84.6" | 84.6" |
Height Options | 162", 168", 174" | 186", 192", 198" |
Width Options | 154.75", 160.75", 166.75" | 154.75", 160.75", 166.75" |
Drive-Thru Clearance | 104.25" | 104.25" |
Pad Height | 6.2"–7.6" | 6.2"–7.6" |
Between Columns | 120", 126", 132" | 120", 126", 132" |
Motor/Voltage | 208/230V, 1Ph, 60Hz | 208/230V, 1Ph, 60Hz |
Air Supply Required | 90–120 psi | 90–120 psi |
Rise Time | 62 seconds | 62 seconds |
Minimum Ceiling Height | 13'8", 14'2", 14'8" | 15'8", 16'2", 16'8" |
Important Note: 🚨 A forklift is REQUIRED to unload the lift from the truck. Please ensure the delivery location is properly equipped.
