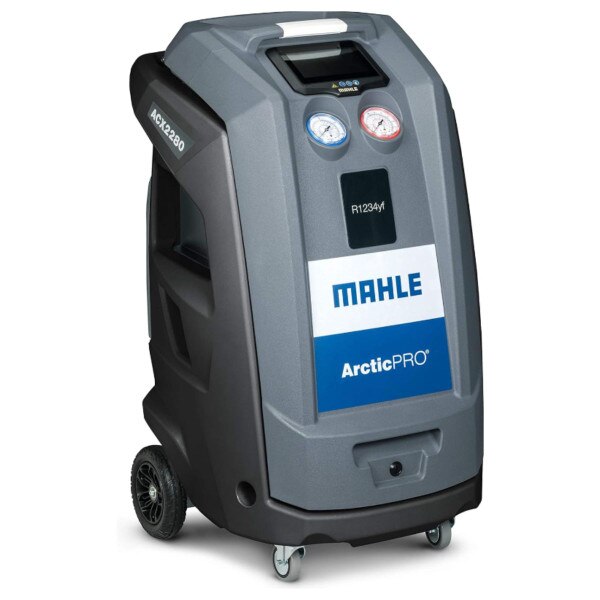

MAHLE ACX2280 ArticPro R1234yf Refrigerant System
MAHLE ACX2280 ArticPro R1234yf Refrigerant System
Overview:
The MAHLE ACX2280 ArticPro sets a new benchmark in refrigerant recovery, recycling, and recharging. Designed specifically for R1234yf refrigerant, this advanced system combines ergonomic design, intuitive operation, and cutting-edge technology to streamline every step of the service process. With a host of features such as a capacitive touch screen, remote app functionality, and automated operations, the ACX2280 offers unmatched efficiency, accuracy, and reliability.

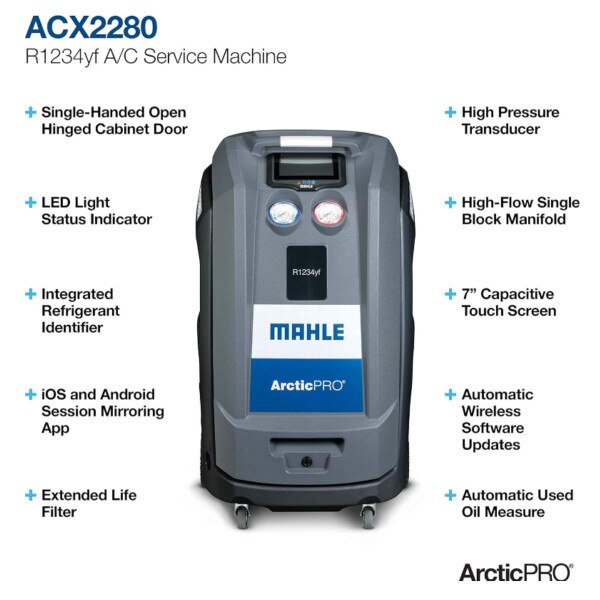

Key Features:
- Ergonomic and Intuitive Design:
- 7” capacitive touch screen and user-friendly interface simplify operation.

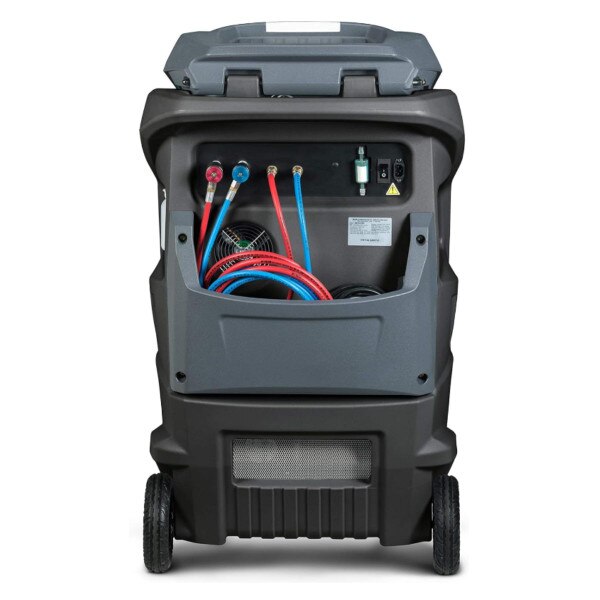

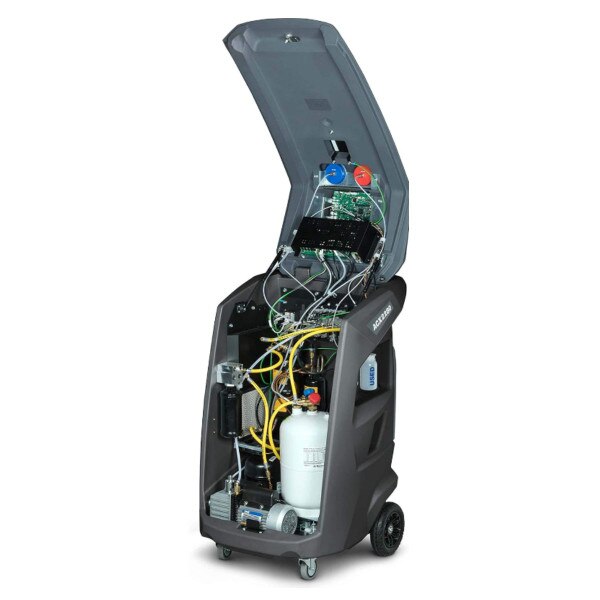

- Hinged service door for easy maintenance and component access.
- Advanced Connectivity and Updates:
- Wireless software updates ensure the system remains up-to-date.
- Remote access via iOS and Android app allows for service session mirroring and advanced troubleshooting.
- Enhanced Efficiency and Accuracy:
- Automatic oil weighing ensures accurate replenishment after service.
- Built-in analytics help optimize refrigerant use, schedule proactive maintenance, and maintain warranty records.
- Convenient Service Features:
- LED status indicator visible from anywhere in the shop.
- Network printing capability for professional service reports.
- Nationwide service centers and lifetime phone support ensure long-term reliability.
- Hybrid Vehicle Support:
- Certified for hybrid functions, making it suitable for a wider range of vehicles.
Specifications:
- Refrigerant Type: R1234yf only
- Certifications: SAE J2843, SAE J2888, UL 1963
- Charge Performance: ±0.5 oz. at 70° to 75°F (±15g at 21° to 24°C)
- Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
- Operation: Fully automatic
- Charging Cylinder: 30 lb. (13.6 kg) DOT
- Compressor: 3/8 HP-0.279kW
- Dimensions (H x W x D): 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
- Weight: 215 lb. (98 kg)
- Display: 7” capacitive touch screen
- Filter Drier Capacity: 150 lb. (68 kg), spin-on type
- Hoses: 9 ft. (2.75 m)
- Languages: English, French, Spanish
- Operating Ranges: 50°F - 122°F (10°C - 50°C)
- Power Source: 120 VAC - 60 HZ - 12 AMP
- Vacuum Pump: 2 CFM dual stage
