MAHLE ACX2180 High-Performance R134a A/C Service System
Product Description
MAHLE ACX2180 High-Performance R134a A/C Service System
Extra Transducers for Superior Performance
Overview:
The MAHLE ACX2180 A/C Service System is engineered for efficiency and precision. With advanced technology such as three transducers, a 7” capacitive touch screen, and integrated oil and UV dye injection systems, it sets a new standard for R134a air conditioning service equipment.
Key Features:
- Enhanced Efficiency with Extra Transducers:
- Reduces process times, offering a faster workflow compared to dual sensor units.
- State-of-the-Art Design:
- Ergonomic build with a 7” touch LCD display for ease of use.
- LED status indicator visible from anywhere in the workshop.
- Integrated Oil and UV Dye Systems:
- Automatically weighs recovered oil for accurate replenishment.
- Supports two types of oil injection and includes built-in UV dye injection for superior leak detection.
- Smart Connectivity and Serviceability:
- WiFi-enabled remote support for quick troubleshooting.
- Permanent wireless updates ensure the latest features are always available.

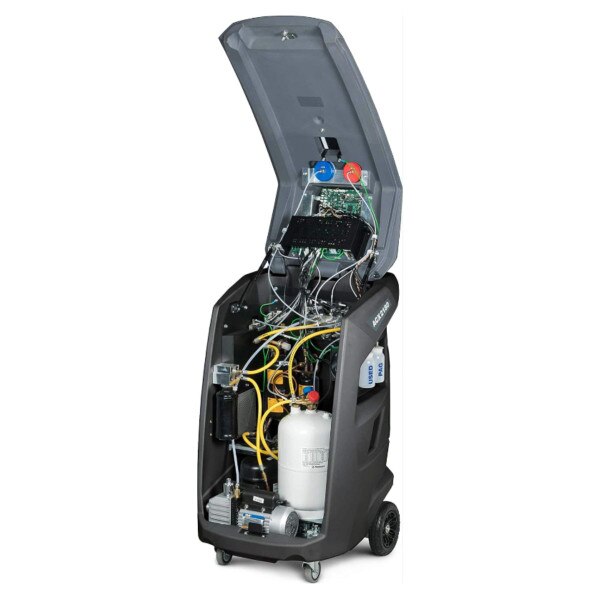

- Hinged service door makes maintenance straightforward.
- Data Management and Printing Options:
- Logs and monitors services, providing analytics for refrigerant usage and proactive maintenance.
- Network printing capability for detailed customer service reports.
- Optional Accessories:
- Thermal printer for easy report printing.
- Refrigerant identifier to prevent internal contamination.
Specifications:
- Certifications: SAE J2788, SAE J2099, UL 1963
- Charge Accuracy: ±0.5 oz. at 70° to 75°F (±15g at 21° to 24°C)
- Recovery Efficiency: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
- Operation Mode: Fully automatic
- Charging Cylinder Capacity: 30 lb. (13.6 kg) DOT
- Compressor Power: 3/8 HP – 0.279kW
- Dimensions (H x W x D): 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
- Weight: 215 lb. (98 kg)
- Filter Drier Capacity: 150 lb. (68 kg), spin-on type
- Hoses: 9 ft. (2.75 m)
- Hybrid Function Support: ACX2180H model only
- Languages Supported: English, French, Spanish
- Operating Range: 50°F - 122°F (10°C - 50°C)
- Power Source: 120 VAC, 60 Hz, 12 AMP
- Vacuum Pump: 2 CFM dual stage
- Warranty: 2 years parts, 1 year labor
