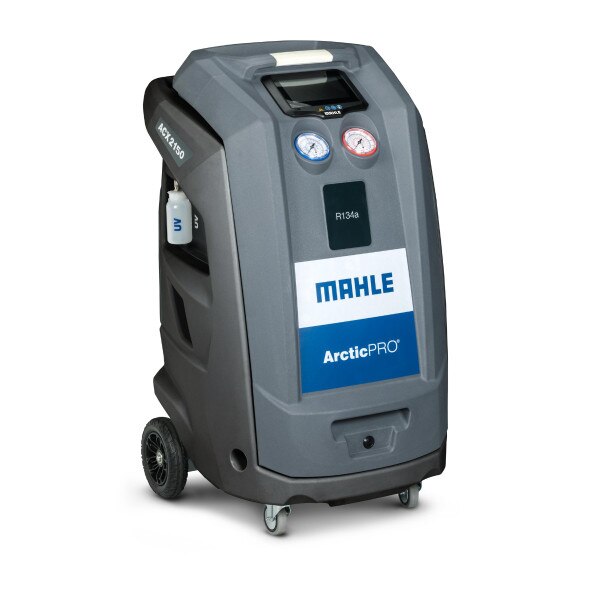

MAHLE ACX2150 ArticPro R134A Refrigerant Handling System

MAHLE ACX2150 ArticPro R134a Refrigerant System

Overview:
The MAHLE ACX2150 ArticPro delivers a state-of-the-art solution for R134a refrigerant recovery, recycling, and recharging. Its 7” capacitive touch LCD display, user-friendly interface, and ergonomic design redefine service efficiency and usability. Built with advanced oil system management, integrated UV dye injection, and permanent wireless updates, the ACX2150 ensures exceptional accuracy, reliability, and convenience for professional technicians.

Key Features:

• Ergonomic and Intuitive Design:
  • Industry-standard 7” capacitive touch screen for streamlined operation.
  • Ergonomic hinged service door simplifies maintenance.
• Built-In Diagnostics and Updates:
  • Automatic wireless software updates keep the system current.
  • Data management and reporting metrics help track service logs, optimize refrigerant use, and schedule proactive maintenance.
• Advanced Oil Management:
  • Onboard oil injection and automatic oil weighing ensure precise replenishment.
• Integrated UV Dye Injection:
  • Enhances A/C leak detection capabilities.
• Remote Support:
  • WiFi connectivity enables MAHLE technicians to troubleshoot and provide advanced support remotely.
• Customer-Friendly Features:
  • Network printing allows easy record retention and customer-ready service reports.
  • Compact, ergonomic design with LED status indicators visible across the workshop.
• Nationwide Service & Warranty:
  • Easily serviceable by the owner. Supported by nationwide service centers and lifetime phone support, plus a two-year standard warranty.

Optional Features:

• Thermal Printer:
  • Print detailed service reports.
• Refrigerant Identifier:
  • Prevents contamination by verifying refrigerant purity.
• Remote App Support:
  • iOS and Android apps allow session mirroring and advanced diagnostics.

Specifications:

• Certifications: SAE J2788, SAE J2099, UL 1963
• Charge Performance: ±0.5 oz. at 70° to 75°F (±15g at 21° to 24°C)
• Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
• Operation: Fully automatic
• Charging Cylinder: 30 lb. (13.6 kg) DOT
• Compressor: 3/8 HP-0.279kW
• Dimensions (H x W x D): 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
• Weight: 215 lb. (98 kg)
• Display: Color, 7” capacitive touch screen
• Filter Drier Capacity: 150 lb. (68 kg), spin-on type
• Hoses: 9 ft. (2.75 m)
• Languages: English, French, Spanish
• Operating Ranges: 50°F - 122°F (10°C - 50°C)
• Power Source: 120 VAC, 60 HZ, 12 AMP
• Printer: Optional
• Vacuum Pump: 2 CFM dual stage
