LV Series Rotary Compressor for Efficient Air Compression
LV/LVR Series Oil Lubricated Rotary Compressors
Oil lubricated rotary vane technology
The LV/LVR Series unenclosed fixed speed rotary vane compressor line offers first-class reliability and flexibility. The LV/LVR Series has the smallest footprint of any rotary compressor in the industry.
Features
The LV/LVR Series range of compressors is engineered to meet highly stringent specifications. Their compact, simple, robust and integrated design allows them to fit anywhere undercover. They are easy to maintain and install, and are extremely quiet. The LV/LVR Series is available in either tripod or tank mounted versions. They are designed for a wide variety of applications including automobile, car body shops, wood working, dentistry, laundry, packaging and machine tools.
- 2-15hp
- Less than 3 ppm Oil Carryover

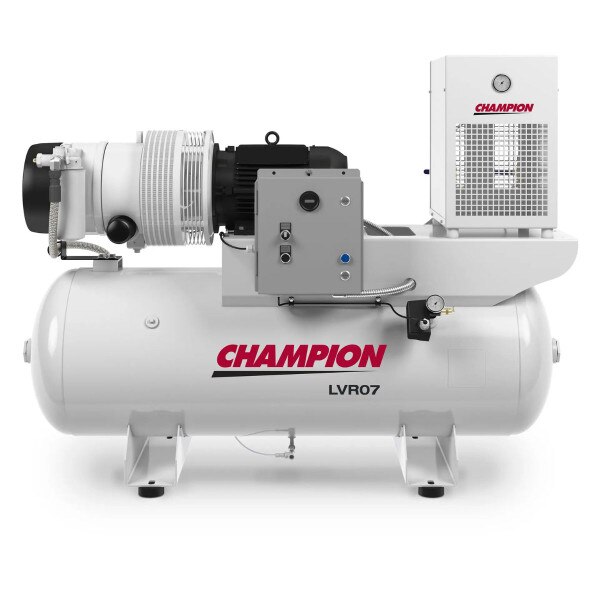

- Available as Airend Only, Compressor/Motor, Tank Mounted Simplex/Duplex, or hypac total system (compressor+Tank+dryer)
- HOA switch and hour meter
- Slow Speed: 1760 rpm (60 Hz)
- 100% Duty Cycle
- Continuous Run or Start/Stop
- TEFC Motor
- Direct Drive
Benefits
Reliable
- Up to 100,000+ operating hours due to its simple integral design
- Delivering quality pulse free air with automatic regulation
- Low speed, direct drive, minimal stresses and no roller bearings to replace
Versatile
- Quiet in operation and can be located at the point of use
- Air intake modulation produces only the air you require
- Complete packages or separate air ends
Powerful and Cost Effective
- Reduced Energy Venting System (REVS) for lower off-load power consumption
- Easy and cost competitive maintenance
- 10 year Platinum™ extended warranty program
LV Series Rotary Compressor for Efficient Air Compression The LV Series Rotary Compressor offers a blend of efficiency, reliability, and ease of operation. Designed for industrial and commercial applications, this compressor provides consistent, high-quality compressed air while minimizing energy consumption. Its robust construction and advanced rotary technology make it a trusted choice for professionals seeking reliable air compression performance. Key Features: Advanced Rotary Technology: Ensures smooth, continuous airflow and consistent performance, even during high-demand cycles. Energy Efficiency: Engineered to deliver maximum output with minimal power consumption, reducing operational costs. Compact and Quiet Operation: Space-saving design and low noise levels make it suitable for indoor installations. Durable Construction: Built with premium materials for long-lasting performance in rigorous industrial environments. User-Friendly Interface: Simple controls and clear indicators allow for easy operation and maintenance. Reliable Air Delivery: Provides stable, high-quality air suitable for a variety of tools and applications. Specifications: Compressor Type: Rotary. Pressure Range: Up to 175 PSI. CFM Output: Varies by model, available in a range of capacities to meet different application needs. Voltage Options: Multiple configurations available to suit your facility’s power requirements. Weight and Dimensions: Compact footprint for easy integration into existing systems. Applications: Suitable for industrial, manufacturing, and commercial operations. Applications: Manufacturing facilities. Industrial workshops and production lines. Commercial businesses requiring efficient and reliable compressed air. Operations focused on minimizing energy use and maximizing output.
