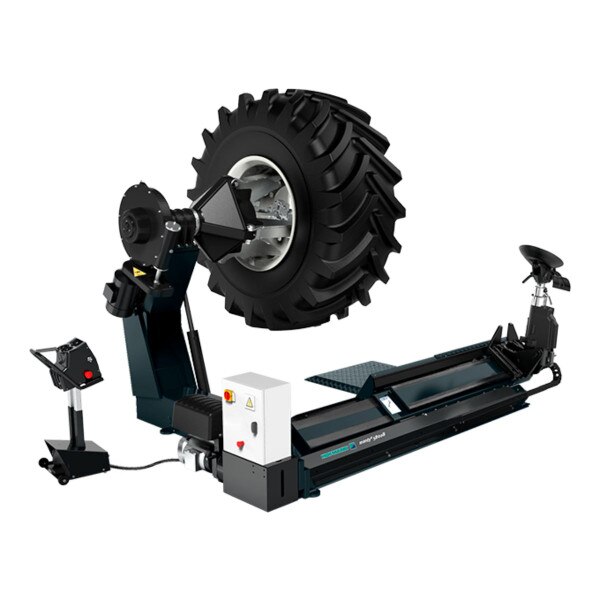

Hofmann Monty 5800B Heavy-Duty Tire Changer

The Hofmann Monty 5800B is a powerful and reliable heavy-duty tire changer, designed to handle large commercial, agricultural, and off-road vehicle tires with ease. Its hydraulic operation and advanced clamping system make it an excellent choice for professional tire service centers, fleet maintenance facilities, and industrial applications.

Key Features:

Wide Rim Clamping Range: Accommodates 14" to 58" rims, providing versatility for various large vehicle tires.

High-Pressure Hydraulic Bead Breaker: Delivers exceptional force for breaking even the most stubborn tire beads.

Self-Centering Hydraulic Chuck: Ensures a secure grip on different rim sizes for safe and precise tire service.

Heavy-Duty Construction: Built with reinforced steel to withstand heavy use in commercial settings.

Multi-Speed Rotation System: Offers adjustable torque settings for controlled mounting and demounting.

Hands-Free Operation: Reduces operator strain with a user-friendly control panel that enhances productivity.

Versatile Applications: Ideal for semi-trucks, buses, tractors, industrial equipment, and earthmovers.

Specifications:

Rim Clamping Range: 14” – 58”

Max Tire Diameter: 98”

Max Wheel Width: 42”

Bead Breaker Force: Hydraulic high-pressure system

Control System: Foot pedal and lever-operated

Power Supply: 220V 3-Phase

The Hofmann Monty 5800B is designed for efficiency, durability, and precision, making it the perfect choice for shops handling heavy-duty and oversized tires.

Back

ADJUSTABLE MOUNTING TOOL

Equipped with a bead breaker disk and lever tool, the versatile mount/demount tool features a 180° rotational capacity, enabling seamless operations on both sides of the tire.

BEAD BREAKER

The bead breaker disk is equipped with a special tilting system in order to increase bead breaking effort and to make sure the disk is always in optimum position relative to the rim.

CHUCK

Two chuck speeds of 4 or 8 rpm are to be preset by switch. Slow speed allows thorough monitoring of critical operations, whereas quick speed allows quick mounting/demounting in less critical phases.

EXTREMELY WIDE CLAMPING RANGE

With an expansive clamping range of 14 to 58 inches without extensions, the elongated jaws can easily accommodate rims with substantial offset. This feature makes it ideal for tire shops handling the mounting and demounting of tires for commercial trucks and trailers, extending to heavy-duty agricultural and earthmoving vehicles.

Mobile Control Unit

A single technician can safely oversee all tire changing operations from a distance while utilizing the wired remote control console, efficiently boosting productivity in the process.

MOUNTING TOOL

Semi-automatic

14”-58” | 36-147cm

Rim Clamping Range

59” | 150cm

Max. Wheel Width

98.5” | 250cm

Max. Wheel Diameter

4,409 lbs. | 2,000 kg

Max. Wheel Weight

208V 3Ph 60Hz

Power Supply

79”x 167”x 83” | 201x424x211cm

Dimensions HxWxD
