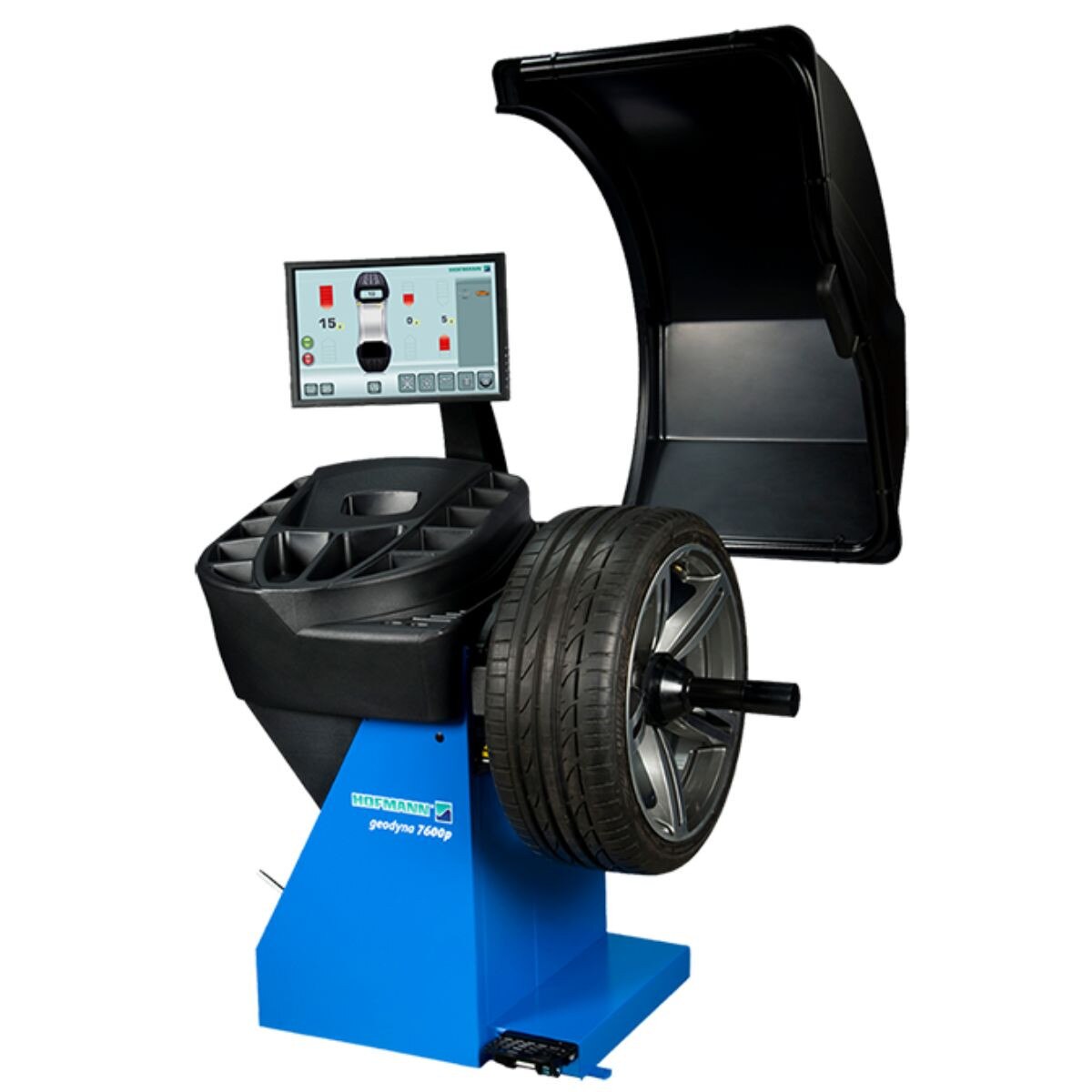

GEODYNA® 7600P
WHEEL BALANCER WITH TOUCHSCREEN MONITOR
HIGH VOLUME
PRODUCT DESCRIPTION
The wheel balancer for tire shops, car dealerships and garages with medium to high tire service volume: with touchscreen monitor and easyWEIGHT pinpoint indicator light – An accurate, fast and easy solution to position adhesive weights on the wheel.
Part Number: EEWB765AP
Intuitive User Interface - New touchscreen, user-friendly interface on a flat panel, resistive touch display. Fast and intuitive selection of the cycle modes.
easyWEIGHT - Pinpoint indicator light - the accurate, fast and easy solution to position adhesive weight on the wheel.
Power Clamp - The electromechanical power clamp always clamps the wheel accurately with a constant force, which is most important for every balancing operation.
Data Entry - The Smart Sonar automatically detects rim width and the measuring run is started as soon as the wheel guard has been completely lowered. 30% time savings compared to manual input.
VPM Measurement Technique - The geodyna® 7600 series comes with the patented Virtual Plane Measurement (VPM) technique which ensures accurate balancing results, while being insensitive to ambient conditions
MotorizedYes
Wheel clampingPower Clamp
Diameter of shaft40 mm
Measuring speed< 200 rpm
Balancing accuracy0.035 oz
Angular resolution± 0,35°
Length of shaft225 mm
Start/Stop balance time - Check spin4 s
Rim diameter range8" - 32"
Offset range1" - 20"
Rim width range1" - 20"
Max wheel diameter42 inch
Max. wheel weight154 lbs
Input power (amperage)1.1 A
Input power (VAC)115 VAC 1Ph 50/60 Hz
Dimensions LxWxH54.5" x 34.6" x 77.2"
Net weight308 lbs
Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship. Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense. Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.
No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence. This warranty only covers equipment delivered and used within the United States.
