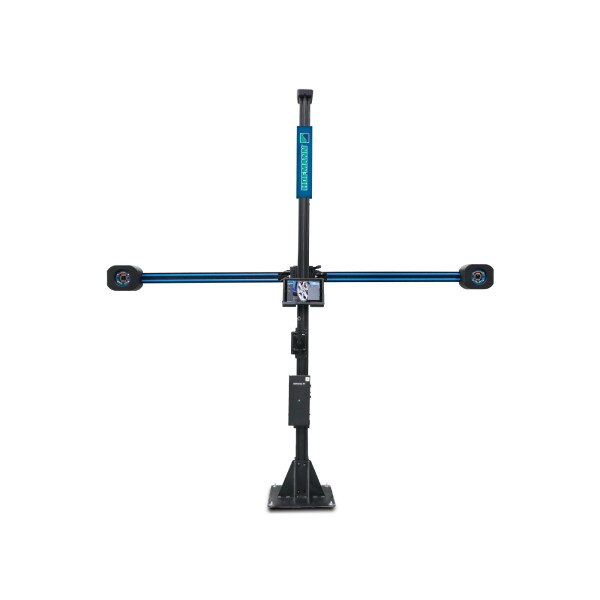

HOFMANN Geoliner 609 Imaging Wheel Aligner

(0)No Reviews yet

Available from 3 to 5 business days after your purchase





Uncompromising features in a compact design – the geoliner® 609, has all the same core features of our advanced imaging alignment systems in a compact, economical design. Ready out of the box with minimal installation, this alignment system offers greater lift compatibility with an extended camera beam and two-wheel elevated compensation mode - making the geoliner 609 a flexible alignment solution to support in-house alignment services.


Part Number:  EEWA741TH3


Clamp Storage Cart: EAK0363J89A




Minimal shop space, no console needed

Control the aligner from anywhere in the shop using the tablet

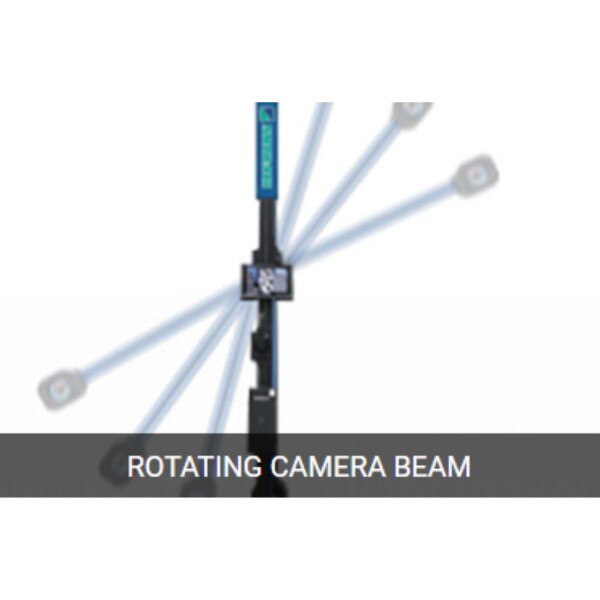

Rotating camera beam for smaller storage footprint


Efficient Design


Pre-assembled, ready-to-install

Lightweight, allows one-person installation

Robust mechanical winch for precise camera beam movement


Intelligent Software Tools


Elevated two-wheel compensation mode for customers with limited space, no alignment lift, or vehicles too large for the lift

Predictive alignment flow and automatic error detection system

Video-speed imaging for fast roll-back compensation

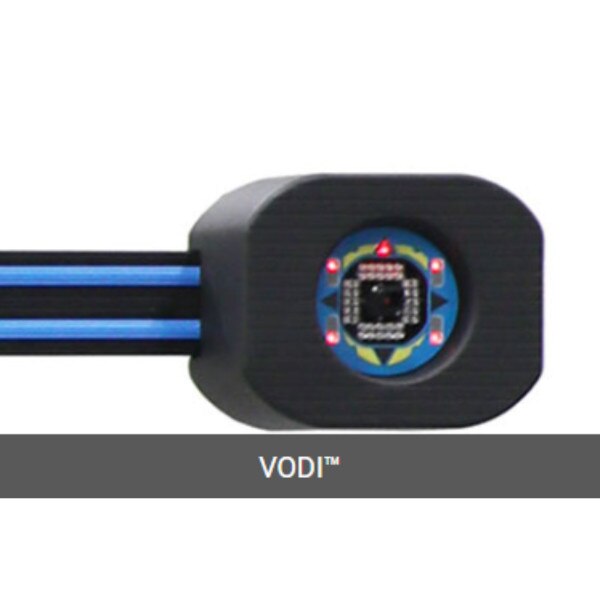

Patented VODI™ technology guides efficient measuring


Online Connectivity


Network updatable software and specifications

Quick access to vehicle specifications and repair information, TSBs, recalls, TPMS, ADAS information

Cloud services printing


Wheel Size (AC200)         12″–24″ | 305-610mm

Power supply     115 VAC 1Ph 50/60 Hz

Track width         48″–96″ | 1219–2438mm

Wheel base        79″–180″ | 2007–4572mm

Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship.  Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense.  Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.

No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence.  This warranty only covers equipment delivered and used within the United States.
