HOFMANN Geodyna 9000P Dignostic Wheel Balancer w/Touch Screen & 3D Camera Technology

SKU: EEWB771AP230
(0)No Reviews yet
GEODYNA® 9000P
DIAGNOSTIC WHEEL BALANCER WITH TOUCH SCREEN AND 3D CAMERA TECHNOLOGY
PREMIUM SERVICE

PRODUCT DESCRIPTION

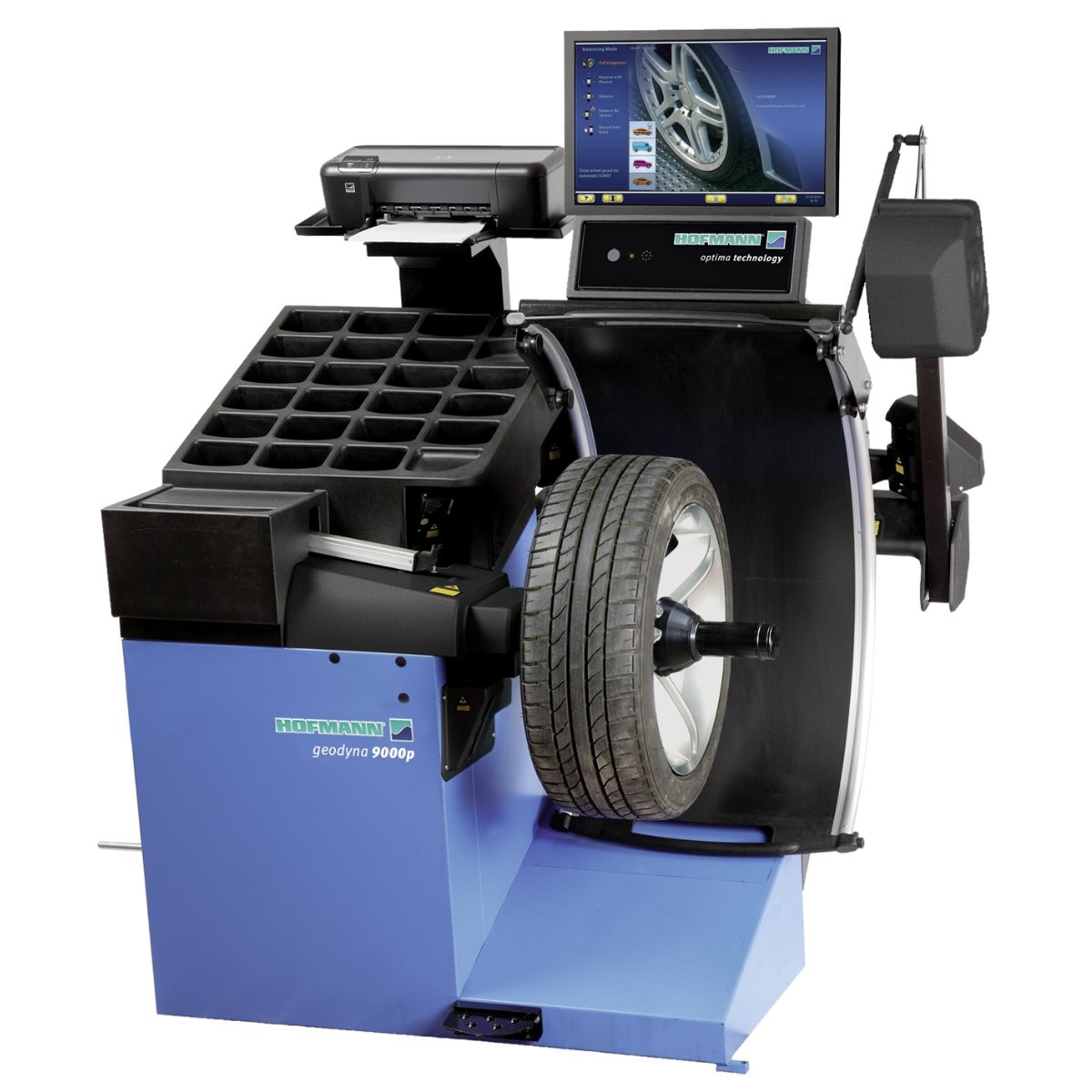

A video wheel balancer for cars and light trucks, the geodyna® 9000p features fully automatic non-contact acquisition of all data via 3D imaging technology and five high-resolution cameras, the Power Clamp clamping system, pinpoint easyWEIGHT laser, plus a touch screen interface for unequaled usability, performance and precision.

Part Number:  EEWB771AP230

Automatic Acquisition - Non-contact 3D imaging technology is virtually error-proof: just clamp the wheel, close the guard and let the geodyna 9000p do the rest. Automatic and non-contact detection of wheel dimensions, balancing mode, number and position of spokes, amount and position of weights, lateral and radial run-out of tire and rim, match mounting and geometric issues

Run-Out Measurement - Non-contact 3D imaging technology scans the rim and tire profile to measure radial tire run-out, bead seat run-out on the bare rim and radial and lateral rim run-out on both sides

3D Imaging - Five high resolution laser cameras scan the complete rim and tire profile to provide visual evidence of results, increase customer awareness and improve customer satisfaction

Run-Out Force Vectoring (RFV) - Determines the virtual loaded run-out contact patch of the wheel assembly and calculates the spring rate by measuring tread width, sidewall height, surface singularities and estimated tire pressure

Sidewall & Tread Analysis - The wheel is scanned to within 0.1 mm accuracy to examine all externally visible scratches, cuts, bulges, blisters, flat spots and uneven wear-out that could potentially lead to safety issues

Tire Wear-Out Prediction - Predicts the tire wear-out point to help prepare the customer for when a replacement Ithaqua be needed

Advanced Spoke Detection - Detects spokes to provide optimum placement of weights, allowing for accurate balancing of alloy spoke rims while preserving their visual appearance

Wheel Data Freeze - Allows the operator to save the data detected on the first rim of a set of identical wheels, reducing data acquisition time for subsequent identical wheels

Smart Profile - Automatically detects optimum balancing program by determining amount, position and type of the balance weights on the basis of rim dimensions saved in memory and imbalance data determined during measurement

Patented Automatic Power Clamp - Ensures consistent and constant wheel-clamping force- ensuring accurate balance on all wheels


MotorizedYes
Wheel clampingPower Clamp
Diameter of shaft40 mm
Measuring speed< 200 rpm
Balancing accuracy0.035 oz
Angular resolution± 0,35°
Length of shaft225 mm
Rim diameter range15" - 30"
Offset range1" - 20"
Rim width range3" - 20"
Max wheel diameter30 inch
Max. wheel weight154 lbs
Input power (amperage)4 A
Input power (VAC)230 VAC 1Ph 50/60 Hz
Dimensions LxWxH57" x 38.98" x 67.32"
Net weight462 lbs




Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship.  Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense.  Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.

No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence.  This warranty only covers equipment delivered and used within the United States.
