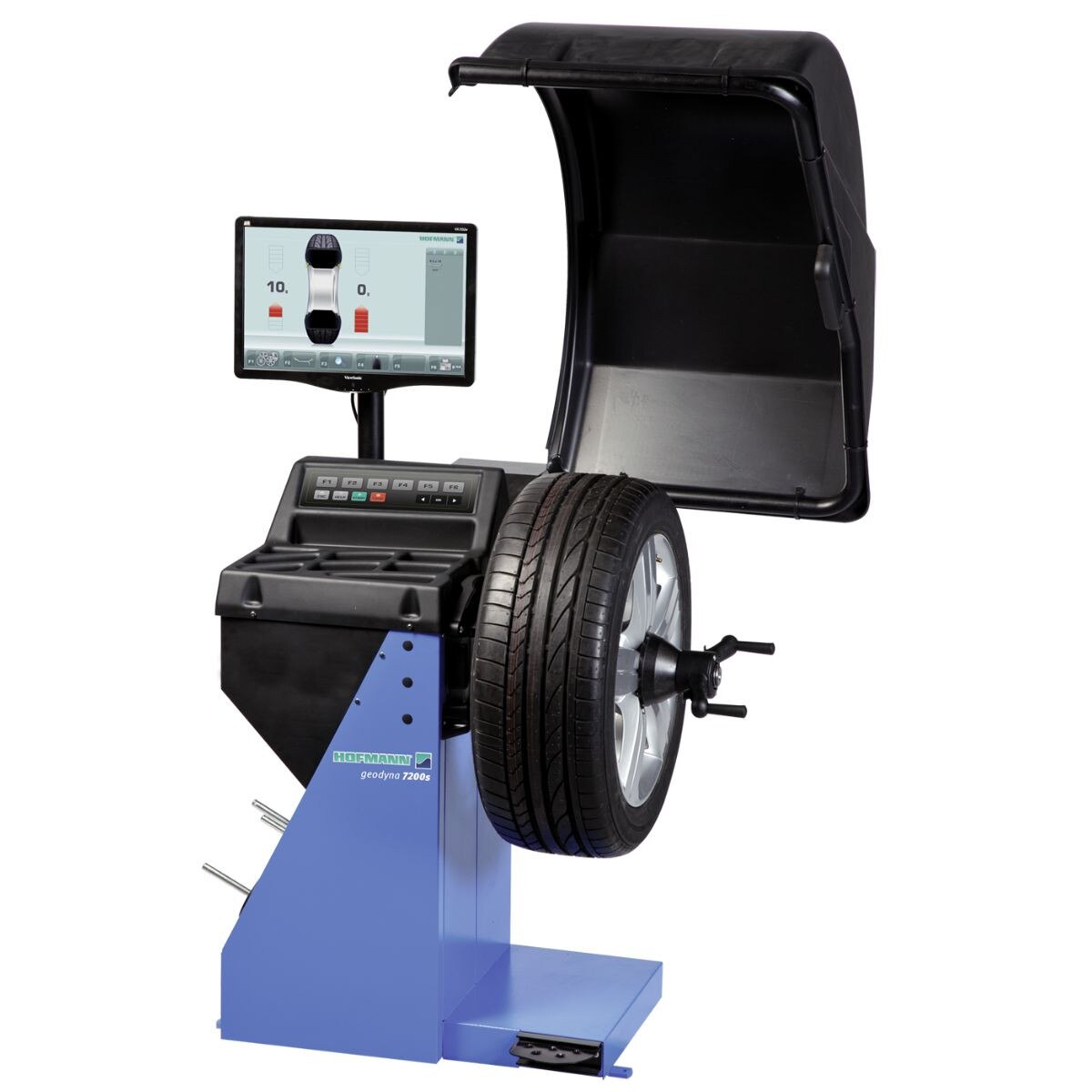

HOFMANN 7200S Wheel Balancer with LCD Monitor

SKU: EEWB746AS
(0)No Reviews yet

Product Description

GEODYNA® 7200S
WHEEL BALANCER WITH LCD MONITOR
GENERAL REPAIR

PRODUCT DESCRIPTION
The geodyna® 7200s High Performance Wheel Balancing System is ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results.

Part Number:  EEWB746AS

Ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design

In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location

The fast spin cycle provides accurate measurement with minimum cycles for fast results

smartSonar simplifies parameter entry

Patented Virtual Plain Imaging (VPI) for precise measuring

Hidden weight mode

Automatic braking of the wheel after measurement

Pedal operated main shaft lock

Tire and wheel optimization program

Compact dimensions - for installation close to a wall



MotorizedYes
Wheel clampingQuick nut
Diameter of shaft40 mm
Measuring speed< 200 rpm
Balancing accuracy0.035 oz
Angular resolution± 0,35°
Length of shaft225 mm
Start/Stop balance time - Check spin4 s
Rim diameter range8" - 32"
Offset range1" - 20"
Rim width range1" - 20"
Max wheel diameter42 inch
Max. wheel weight154 lbs
Input power (amperage)1.1 A
Input power (VAC)115 VAC 1Ph 50/60 Hz
Dimensions LxWxH40" x 30" x 72"
Net weight180 lbs



Hofmann USA warrants to the original purchaser that its equipment installed in the United States will be free from defects in materials & workmanship.  Should any failure in the above mentioned warranty on workmanship & material appear within one (1) year of delivery, Hofmann USA shall, upon being satisfied that its product has been properly handled, stored, installed and operated, correct such defects by repair or replacement at its expense.  Any service labor required by reason of repair or replacement within six (6) months will be provided free of charge.

No Warranty is made to any equipment which has been altered or repaired by anyone other than an authorized service representative of Hofmann USA, or as to any product which has been subject to abuse, misuse or negligence.  This warranty only covers equipment delivered and used within the United States.
