Atlas Garage Hobbyist 8,000 Lbs Capacity 4 Post Lift

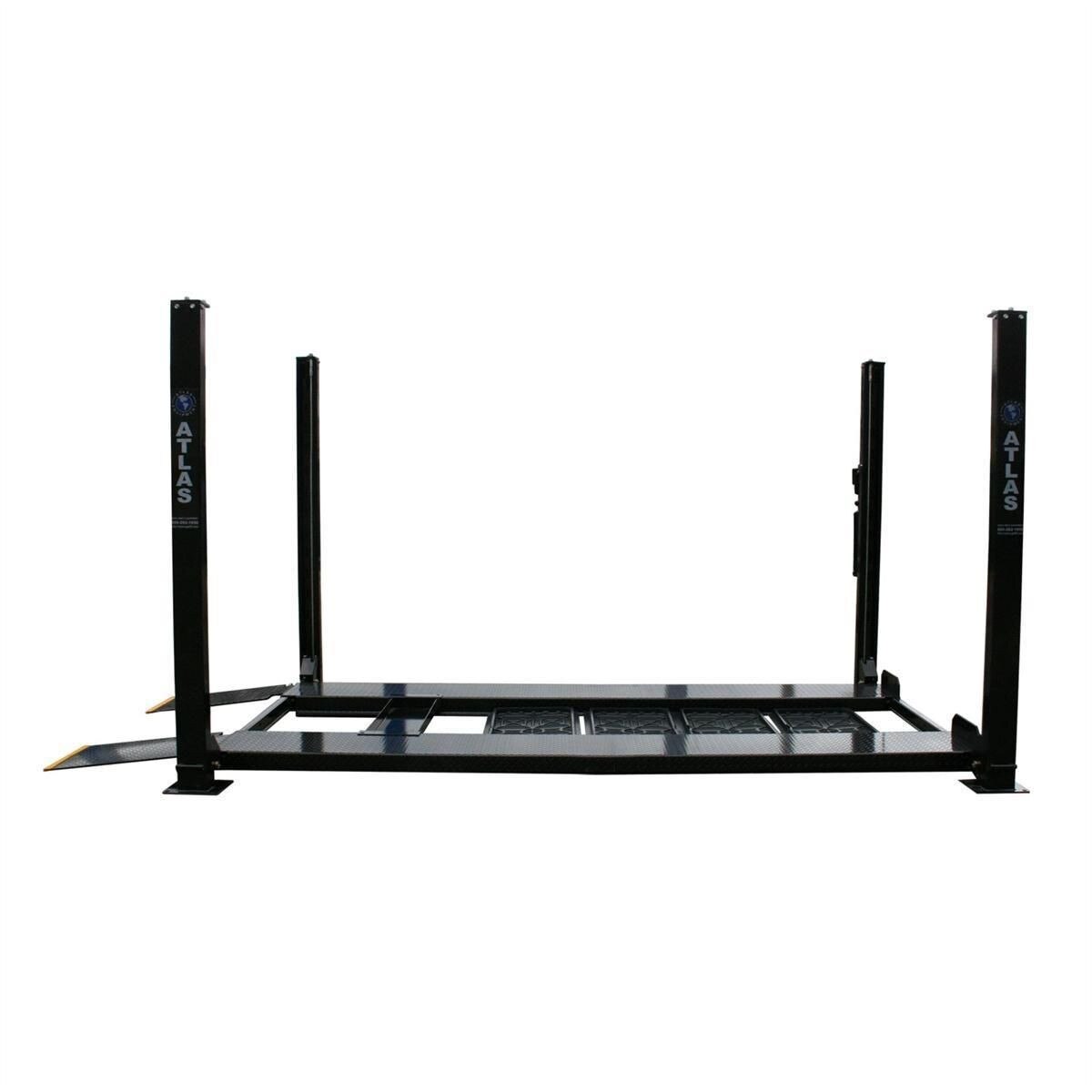

Atlas Garage PRO8000EXT – 8,000 lb. Extra Tall Portable 4-Post Lift | Hobbyist Series

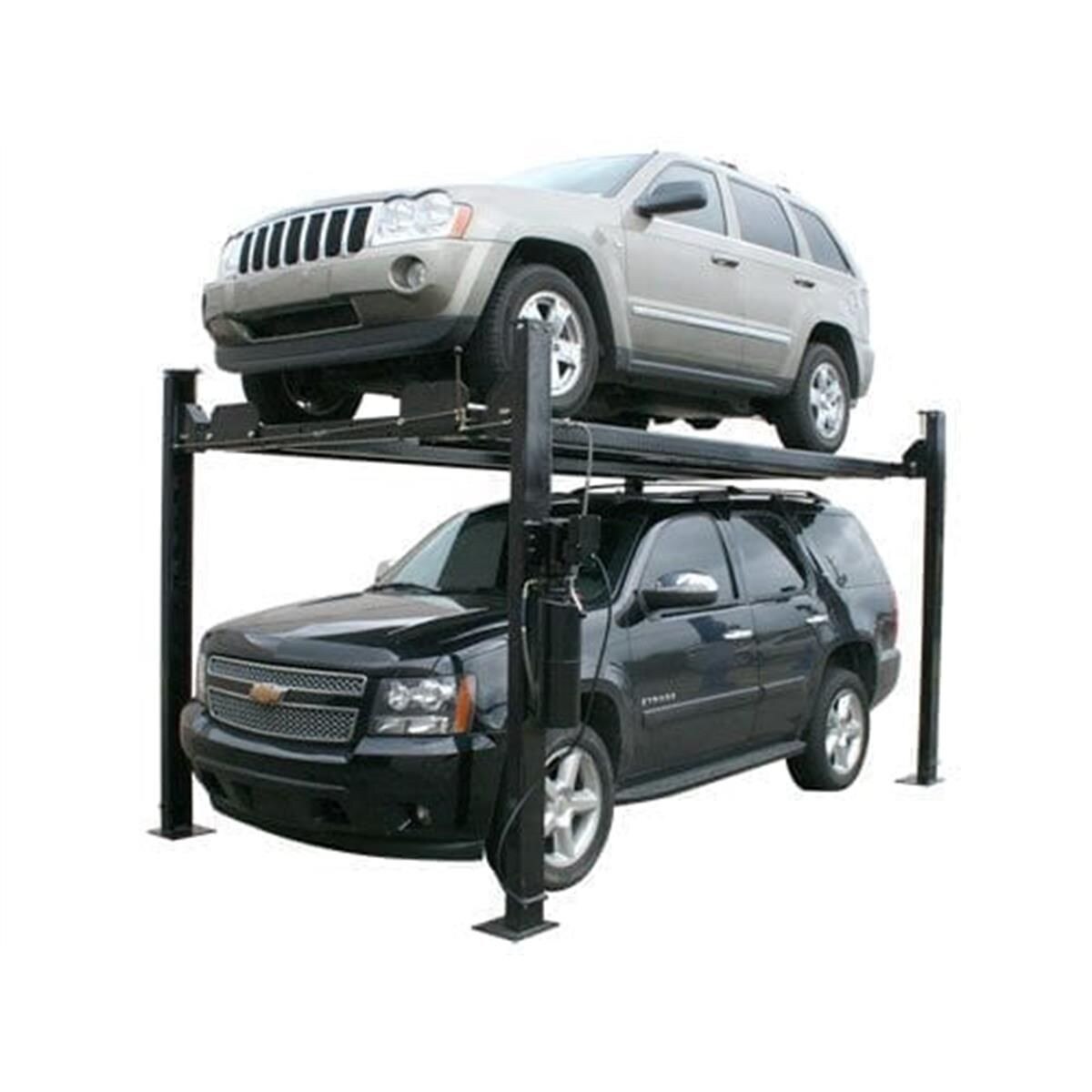

The Atlas Garage PRO8000EXT is one of the most popular hobbyist 4-post lifts, designed with the homeowner and restoration enthusiast in mind. With an 8,000 lb. lifting capacity and extra-tall design, this lift is perfect for storing a vehicle on top while parking an SUV or pickup truck underneath—maximizing garage space without requiring extra-long runways.

Unlike competitor models that extend length when adding height, the PRO8000EXT provides 79" of under-runway clearance while maintaining a compact footprint, making it ideal for garages where space efficiency is critical. Built to the same standard as the Atlas Garage PRO Series, this model includes numerous accessories and safety features for dependable operation.

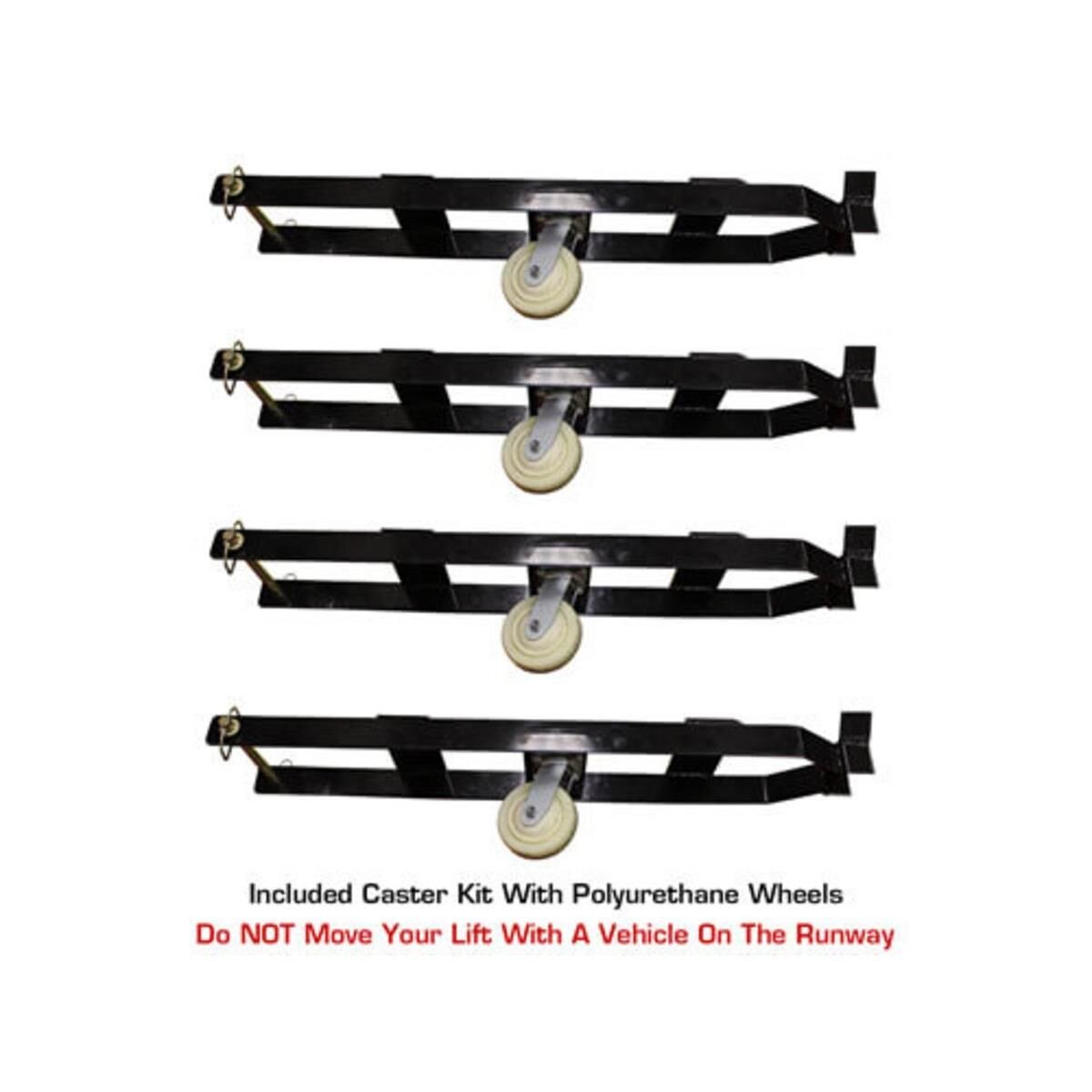

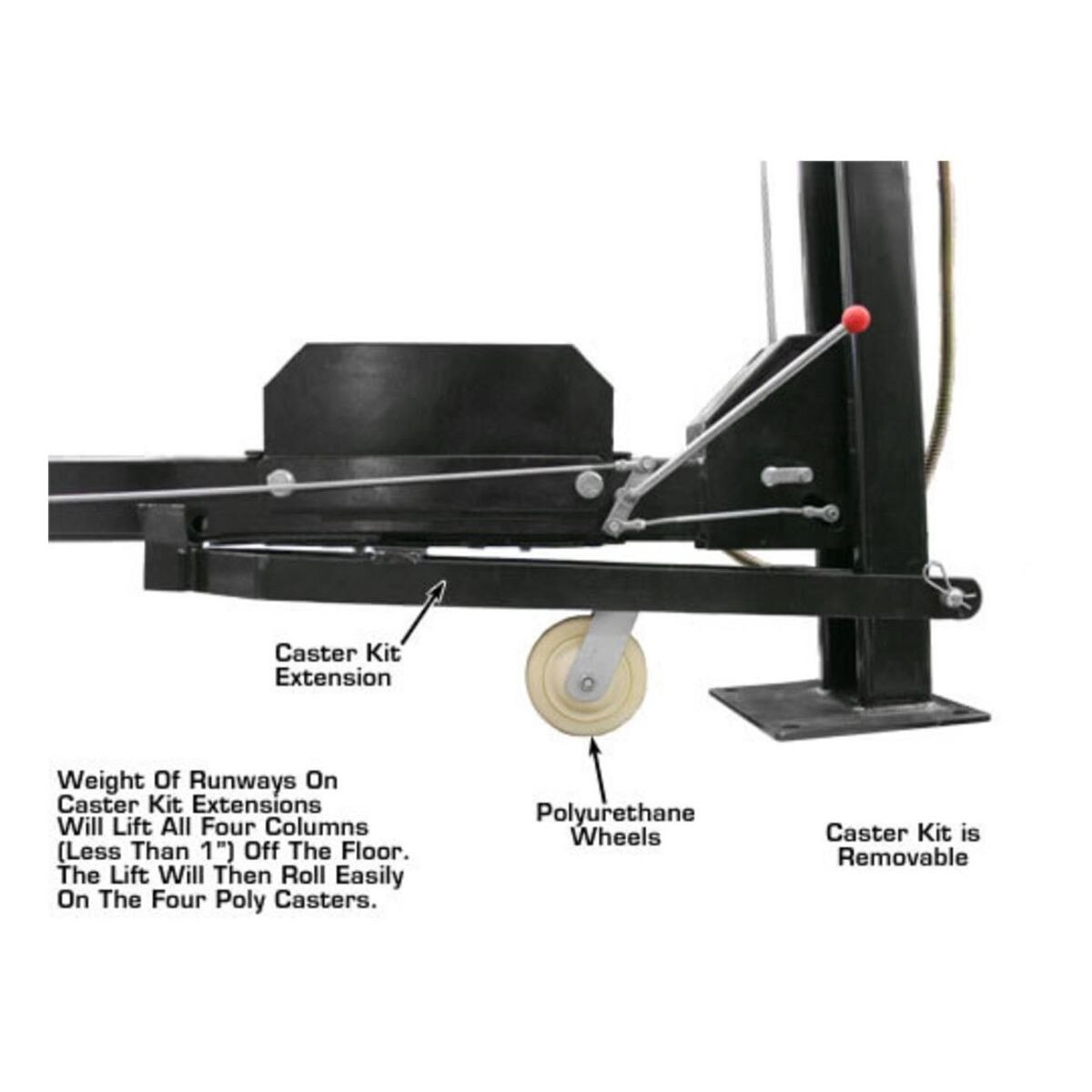

This free-standing, portable lift comes equipped with a caster kit, allowing you to move the lift between bays or even outdoors when needed. It’s also loaded with value, including steel approach ramps, a jack tray, plastic drip trays, wheel stops, and rubber wheel chocks at no additional cost.

Note: This lift is not intended for daily commercial repair shop use—it is specifically engineered for storage, light maintenance, and hobby applications.

Key Features:

Capacity: 8,000 lbs.

Design: Free-standing, portable with caster kit

Extra-tall design with 79" under-runway clearance

Lock Ladder Design with double lock safety system

Single-point lock release for convenience

Diamond-plated runways for traction and durability

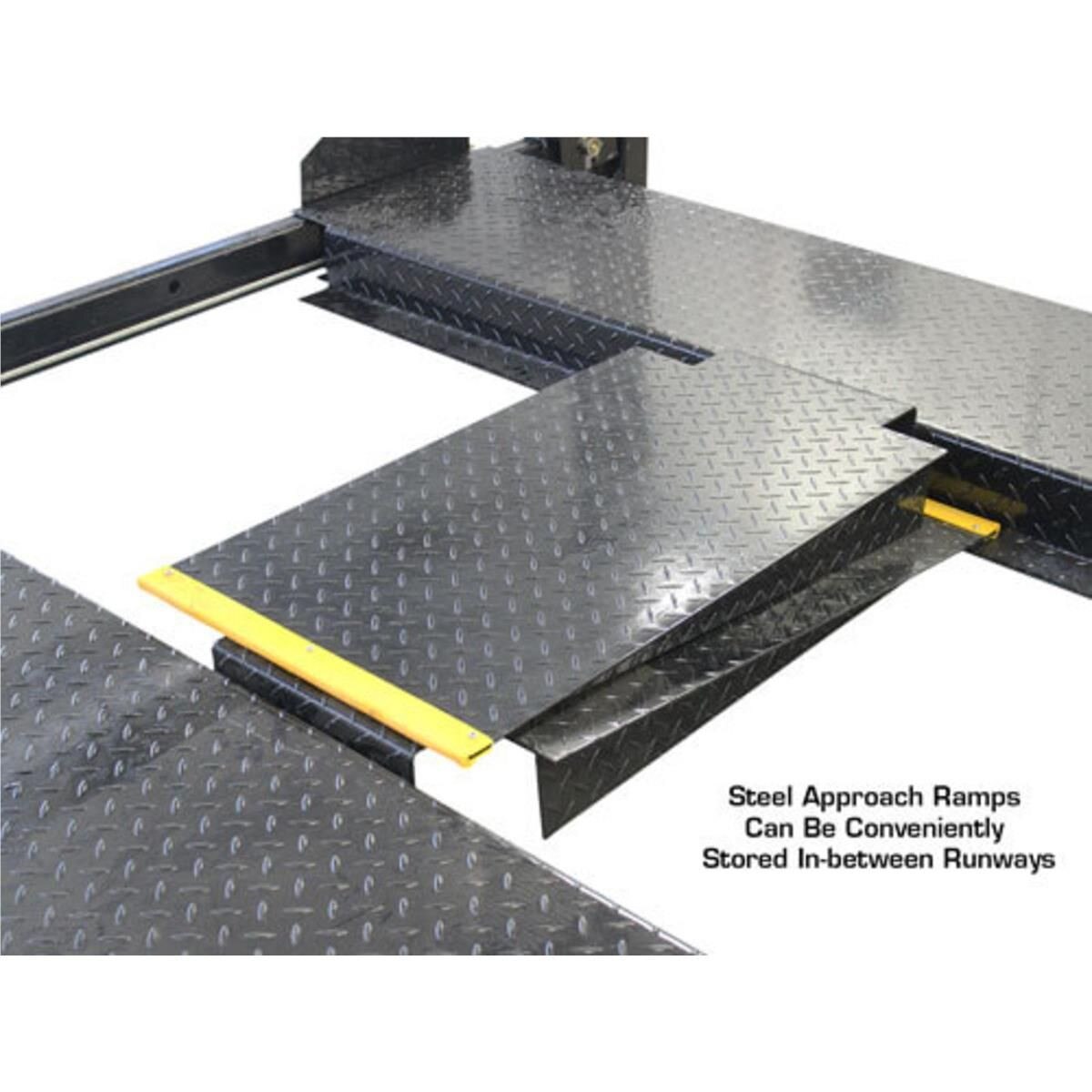

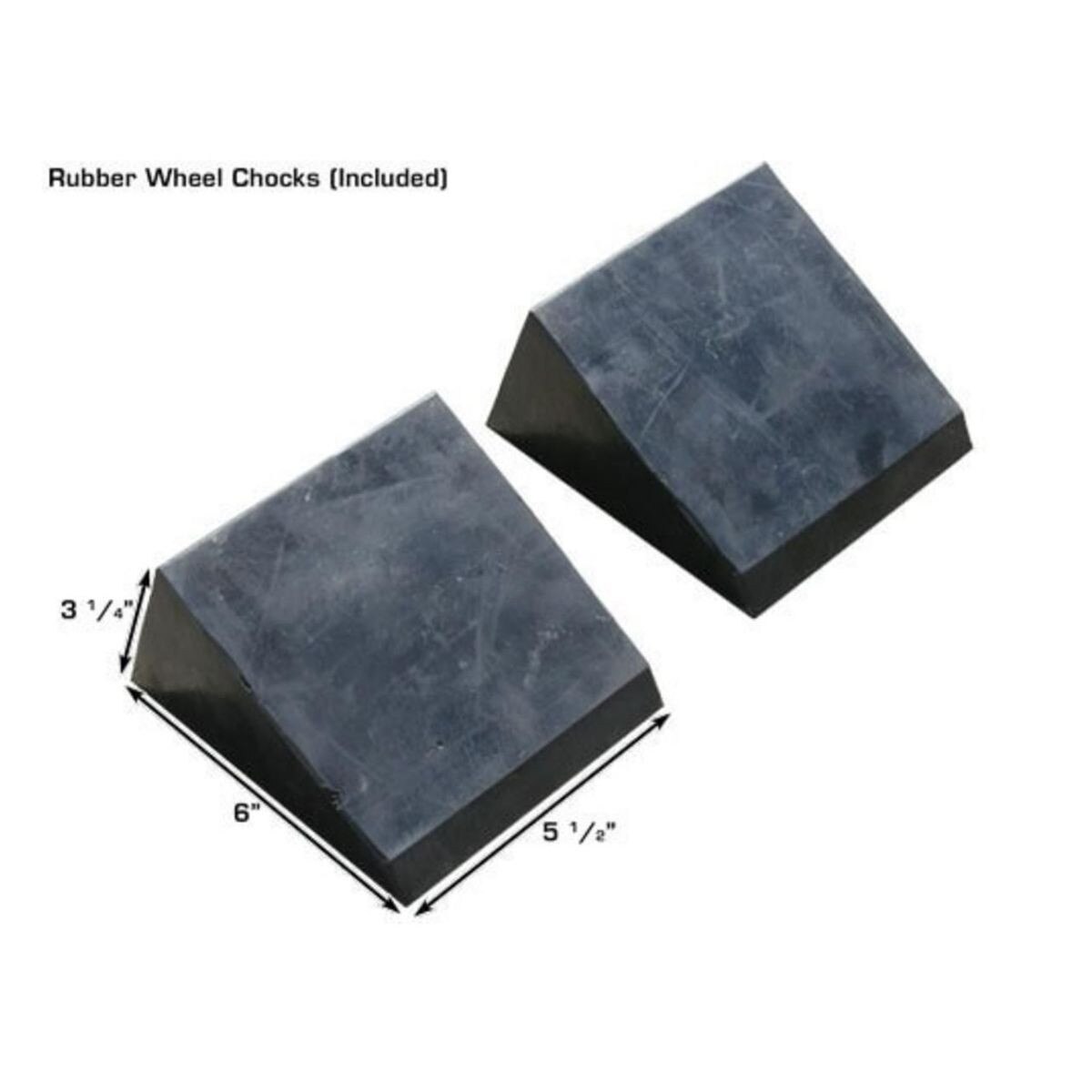

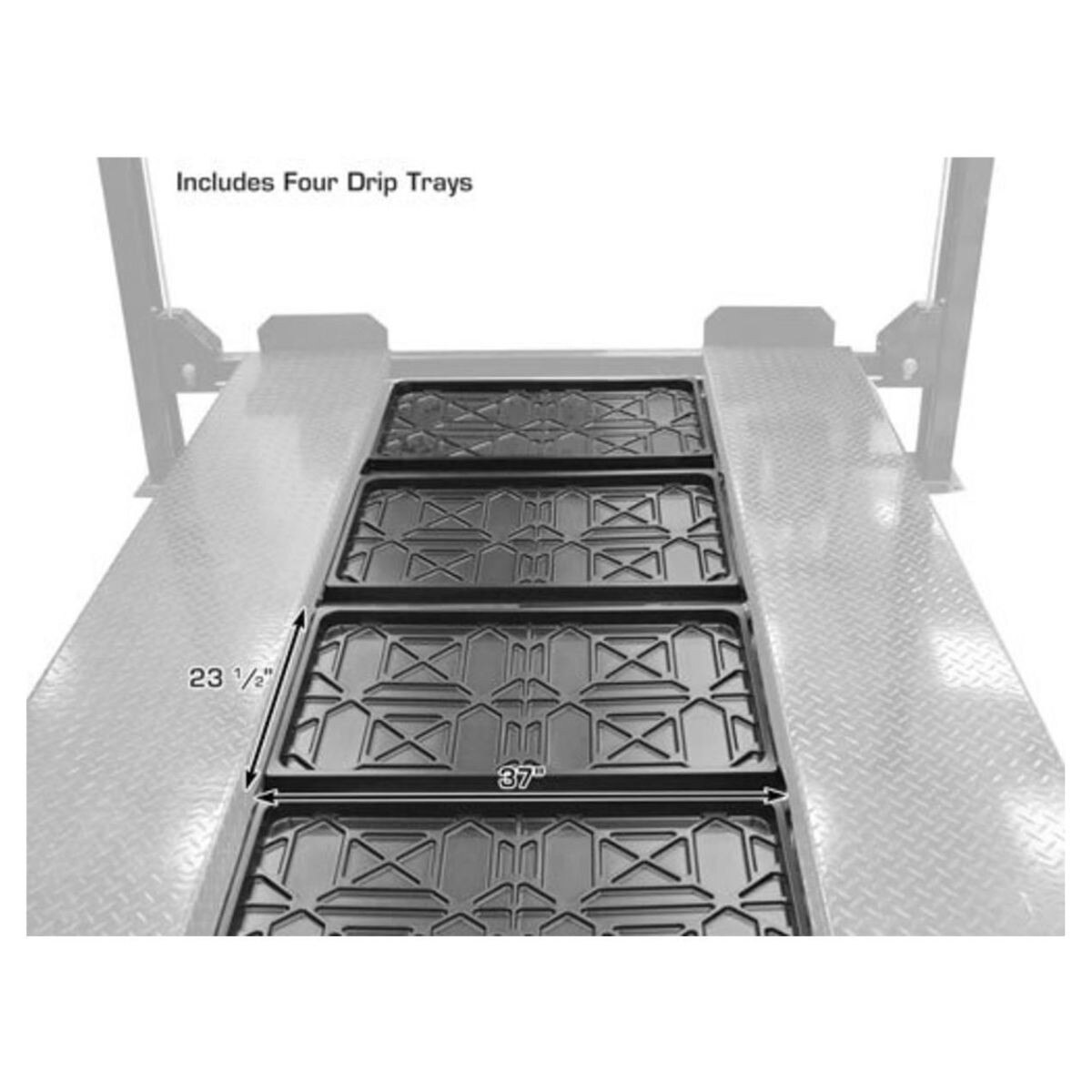

Steel approach ramps, jack tray, drip trays, wheel stops & chocks included

Compact size compared to oversized commercial lifts

110V electric operation (30A breaker required)

Powder-coated finish for long-lasting durability

2-year structural, 1-year hydraulic warranty

Specifications:

Lifting Height (to runway top): 84.25"

Clearance Under Runways: 79"

Height of Columns: 98.5"

Overall Width (w/o Motor): 104.5" | (with Motor): 115"

Overall Length with Ramp: 206.75"

Runway Length: 165.75" | Width: 21.25" (with rails)

Width Between Runways: 37" | Outside-to-Outside: 74.625"

Clearance Between Columns: 94.5"

Length Between Columns: 157.5"

Max Wheelbase: 153.5"

Drive-Thru Width: 80.5"

Runway Thickness: 4.5"

Approach Ramp Length: 37"

Motor/Electrical Requirement: 110V, 30A breaker required

Shipping Weight: 1,850 lbs.

Ideal For:

Home garages & hobbyists

Vehicle storage & stacking

Restoration shops (non-commercial)

SUV and pickup truck owners needing extra vertical clearance

Warranty Info:

1-Year Warranty on material and workmanship

Warranty returns may need to be processed directly with the manufacturer. Please review the manufacturer’s warranty policy for complete details.
