Corghi Service PRO124 Swin Arm Tire Changer
Product Description
Corghi Service Pro 124 Electric Swing Arm Tire Changer
Part Number: 0-11901604/00
2024 4th Quarter Rebate: 10% Cash Back!
Get 10% Cash Back on ALL Corghi Machines, Helper Arms, and Related Accessories during the 4th quarter. This rebate is direct from Corghi. Hurry while supplies last—cash in before the holidays!
Bundle & Save: Purchase a helper arm with your tire changer now and save up to 10% on the price of the arm. Simply add the "tire changer with helper arm" option to your cart for bundled savings.

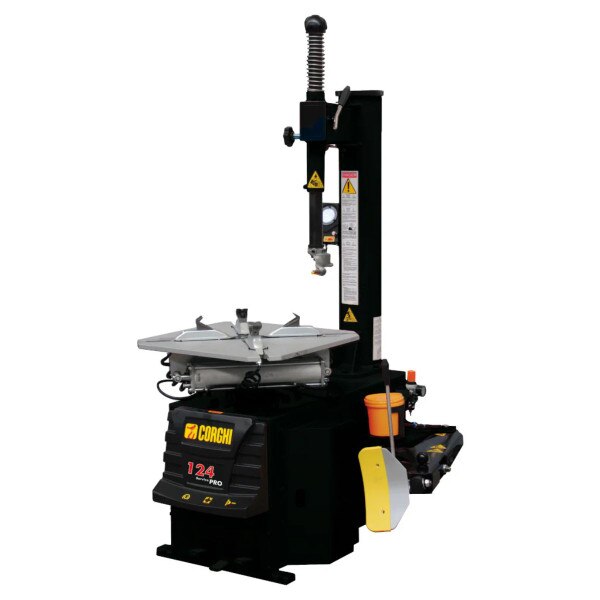

The Corghi Service Pro 124 is a semi-automatic electric swing-arm tire changer engineered for reliability and strength. It can handle rims up to 24" and is ideal for medium to large-sized tire changing needs.

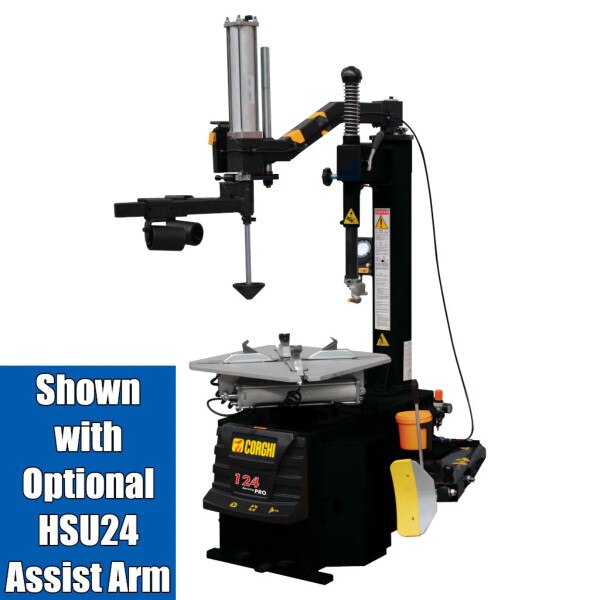

Helper Assist Arm Option: Enhance your tire changing process with the HSU24 Helper Assist Arm. Designed for pressing the bead and helping with difficult tire applications, it significantly eases the operation for technicians.
Technical Specifications:
- Outside Clamp: 11″ - 24″
- Inside Clamp: 13″ - 26″
- Max Wheel Diameter: 47″ (1250 mm)
- Tire Width: 3″ - 13″
- Bead-Breaking Opening: 13.4″ (340 mm)
- Bead-Breaking Power: 3372 lbf (15000 N)
- Working Air Pressure: 116 - 145 psi (8 - 10 bar)
- Motor Power: 1.47 hp (1.1 kW)
- Power Supply: 115 V / 60 Hz / 1 Ph
- Chuck Rotation Speed: 6.5 rpm
- Noise Level: Less than 70 dB
- Net Weight: 527 lbs (239 kg)
- Gross Weight: 593 lbs (269 kg)
- Max Dimensions (L x D x H): 50″ x 49″ x 75″ (1280 x 1250 x 1910 mm)
