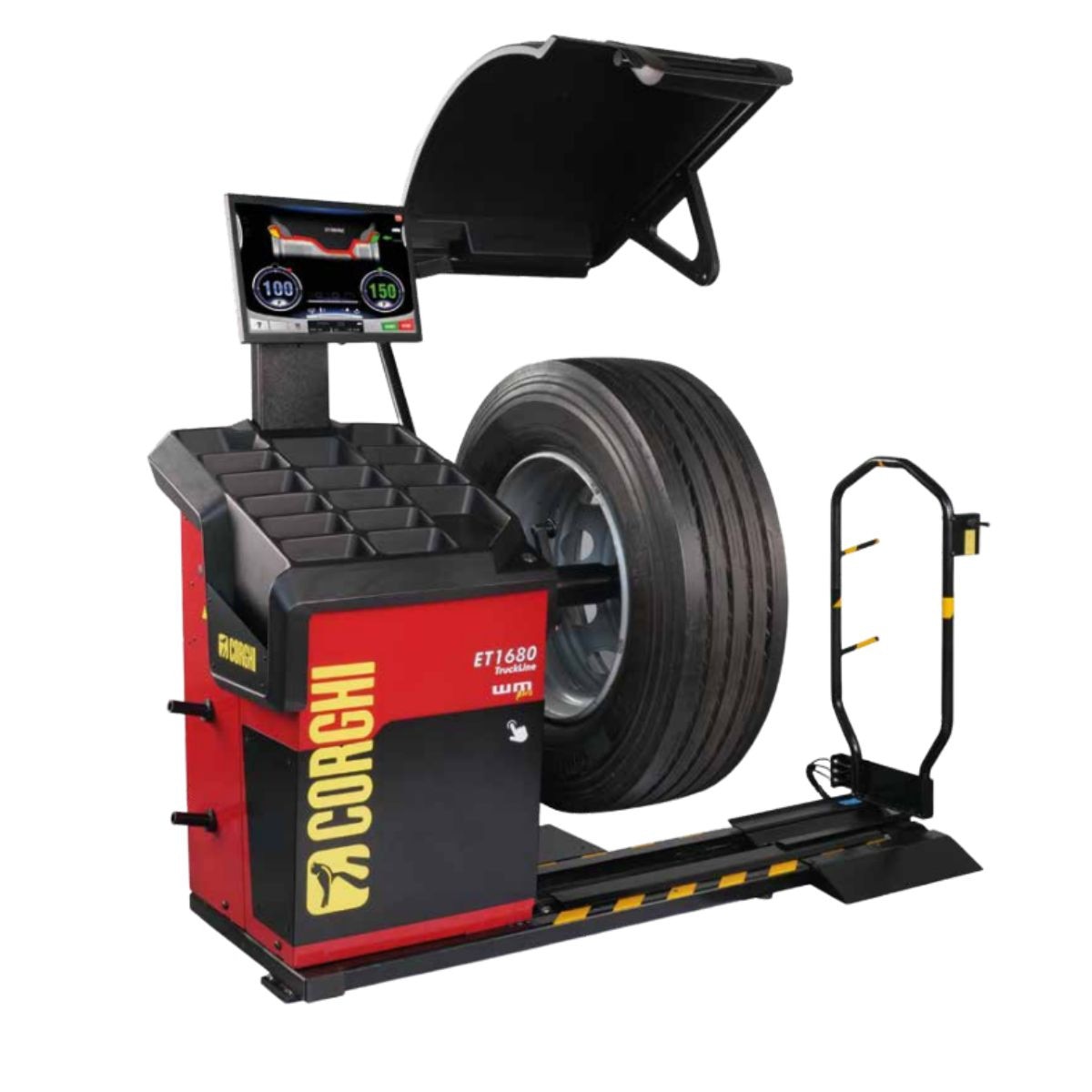

Corghi ET1680 TruckLine Wheel Balancer
Product Description
Corghi ET1680 TruckLine Wheel Balancer
The Corghi ET1680 TruckLine is a heavy-duty touchscreen wheel balancer designed for trucks, buses, and commercial vehicles. It combines modern technology, precision, and efficiency to deliver top performance in professional service environments.
Key Features:
22″ Touchscreen Display – Intuitive graphical interface simplifies program selection and balancing operations.
Smart Arm Plus – Automatically measures wheel distance and diameter (up to 30″) through the Fast Selection Program (FSP) and integrated LaserBlade pointer.
Low-Speed Spin & Measuring System – Reduces spin time, lowers energy consumption, and enhances operator safety.
Rotational Weight Tray & One-Touch Button – Keeps tools organized and allows fast access to main functions.
DPA & Electromagnetic Brake – Direct Positioning automatically aligns the wheel for weight placement; the magnetic brake ensures accuracy during correction.
Integrated Pneumatic Wheel Lift – Pedal-free pneumatic lift supports wheels up to 300 kg (≈ 660 lb), making mounting and centering easy and efficient.
Technical Specifications:
Rim width range: 1.5″ to 20″ (40–510 mm)
Rim diameter range: 10″ to 30″ (265–765 mm)
Maximum wheel weight (8 bar): 300 kg (≈ 660 lb)
Balancing precision: 1 g (cars) / 10 g (trucks)
Power supply: 200–230 V / 1Ph / 50–60 Hz (optional 100–115 V)
Ideal For:
Commercial workshops, fleet maintenance centers, and heavy-duty tire service shops seeking accurate, time-saving wheel balancing solutions.
