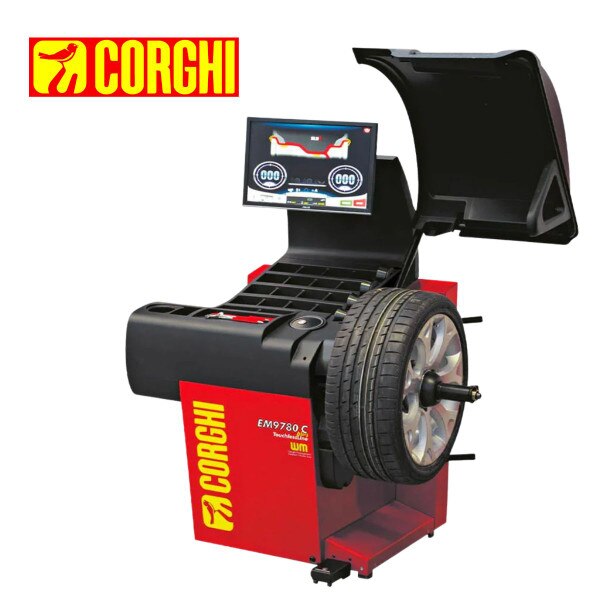

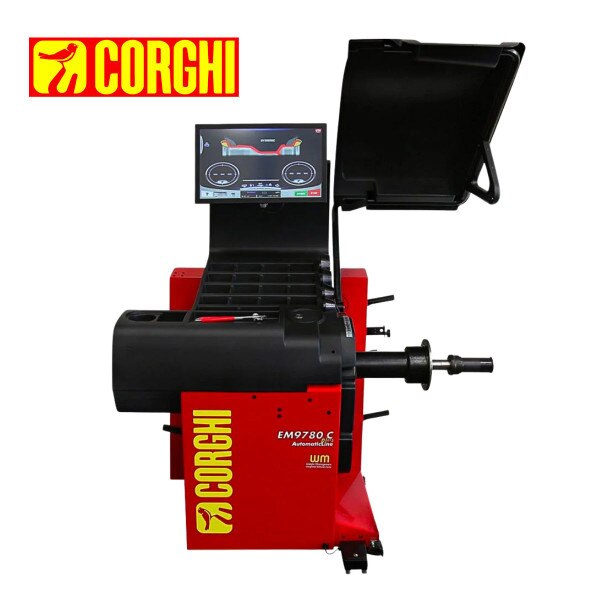

Corghi EM9780Plus & EM9780CPlus – Automaticline Wheel Balancers | Touchscreen & Contactless

The Corghi EM9780Plus and EM9780CPlus Automaticline Wheel Balancers are designed for high-volume tire service centers, car dealerships, and OEM workshops that demand speed, precision, and automation.

These advanced wheel balancers are fully automatic—requiring no manual measurement—thanks to their contactless dimensioning system with an internal laser sensor and external sonar sensor (Sonar AWD). The result is unmatched speed and accuracy in wheel diagnostics and balancing.

At the end of each spin cycle, the wheel is automatically braked and positioned (RPA) for weight application. An integrated LED illuminator enhances visibility for rim cleaning and precise counterweight placement, while the point laser system ensures exact adhesive weight positioning.

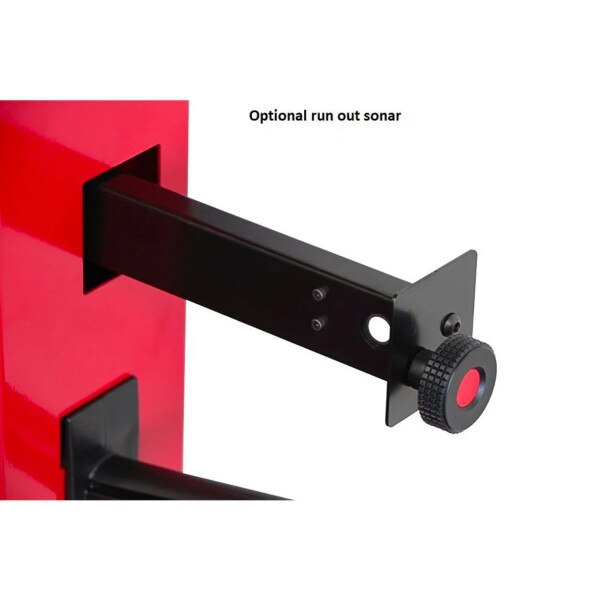

For advanced diagnostics, the EM9780CPlus offers optional SONAR technology to measure run-out and provide four specialized diagnostic programs (Fast Matching, Best-Fit, Intelligent Positioning Lite, and Run-Out Measurement). Additional features such as the Hidden Weight Program, Weight Management Suite, and OPT Flash Noise Reduction make it one of the most advanced wheel balancers available.

Both models feature a large touchscreen interface, multifunction weight tray, USB connectivity, and a compact, slanted-front design for ergonomic use. With the optional Winut electromechanical clamping system (EM9780C), operators benefit from faster, more precise wheel clamping.

Key Features:

Automatic, contactless measurement system with laser + sonar sensors

Touchscreen interface with intuitive program selection

Automatic braking & positioning (RPA) after spin cycle

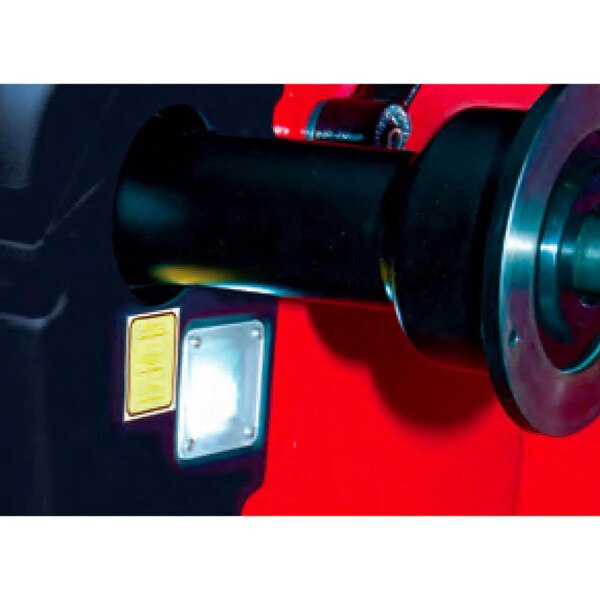

LED illuminator for enhanced visibility

Point laser for precise adhesive counterweight placement

Optional SONAR diagnostic functions (CPlus model): run-out measurement, fast matching, best-fit, intelligent positioning

Hidden Weight Program – hides weights behind spokes

Weight Management Suite – reduces weight usage and service times

OPT Flash Technology – reduces road noise by optimizing tire positioning

Winut electromechanical clamping system (CPlus) or quick ring manual clamping (Plus)

USB ports for software updates and printer integration

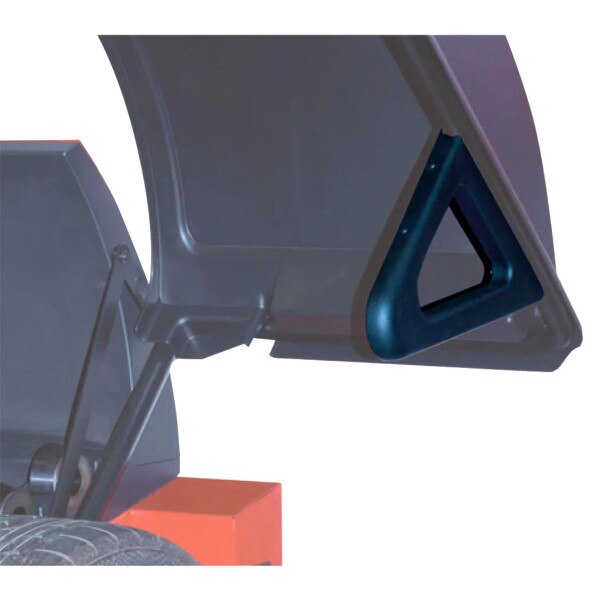

Compact, ergonomic design with patented wheel guard

Technical Specifications:

Power Supply: 115–230V, 1Ph, 50/60Hz

Total Power: 550 W

Balancing Speed: 75–98 rpm

Max Imbalance Value: 999 g (35.3 oz)

Resolution: 1–5 g (0.035–0.176 oz)

Average Measurement Time (14kg wheel): 7 s

Shaft Diameter: 40 mm (1.57")

Rim Width Range: 1.6"–23.6"

Rim Diameter Range: 2"–35" (measurement up to 32")

Max Wheel Width (with guard): 23.6"

Max Wheel Diameter (with guard): 44"

Max Wheel Weight: 85 kg

Machine Weight: 183 kg

Dimensions (L × W × H): 1453 × 894 × 1884 mm

Recommended Accessories (with part numbers):

TT-Ø Wheel Lifter (Automatic, “Weightless Effect”) – PN: 8-21100230

TT-R Wheel Lifter (Manual, “Weightless Effect”) – PN: 8-21100248

ROD Kit – Sonar Run-Out Detector Kit – PN: 8-21100250 (for EM9780C diagnostic upgrade)

USB A4 Color Inkjet Printer with Stand – PN: 8-21120005 | Stand: PN 8-21100236/90

HPC Precision Bushing Set (8 pcs) – PN: 8-21100244

RAL 3002 Support Column for HPC Bushings – PN: 8-21100253/16 | Alternate Color: PN 8-21100253/90

Adhesive Counterweight Dispenser Kit – PN: 8-21100251

Adhesive Counterweight Coil (Iron, 5 g × 1200 pcs) – PN: 8-21100252
