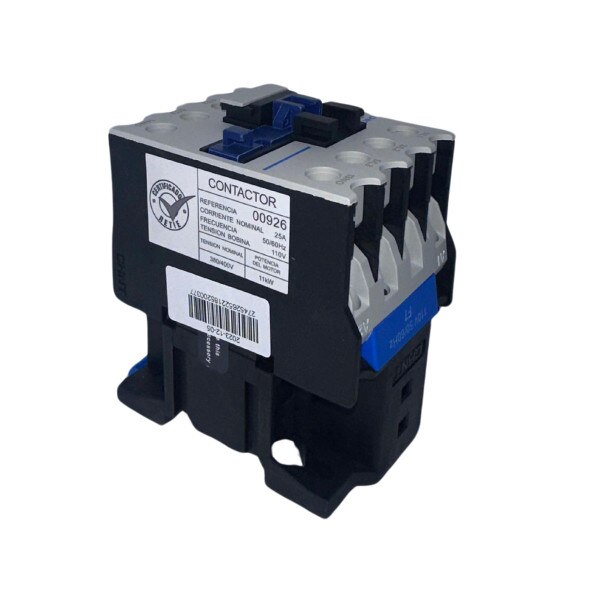

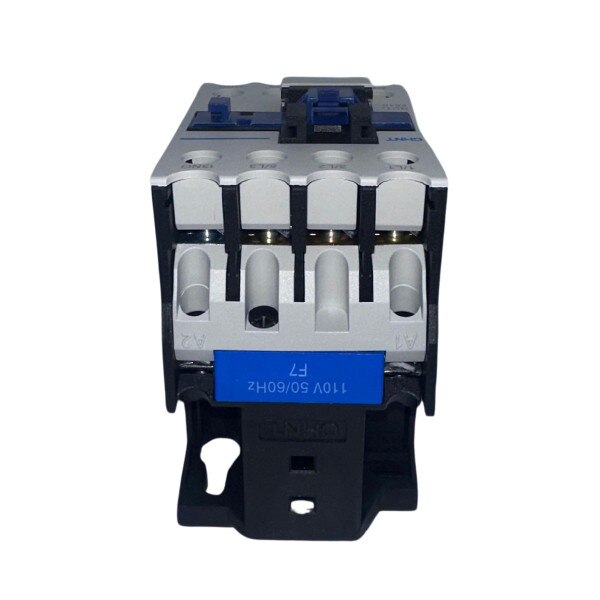

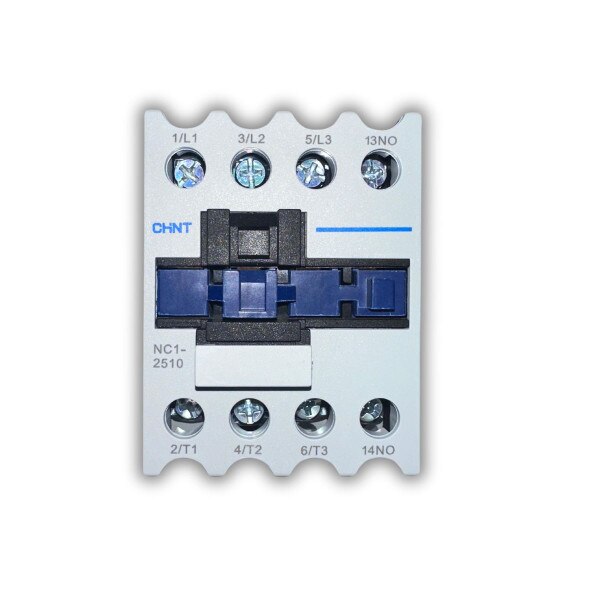

Contactor 25A 110VAC UL Brand CHINT - NC1-2510

Contactor 25A 110VAC UL Brand CHINT - NC1-2510

Overview:
The CHINT NC1-2510 Contactor is a high-quality 3-pole contactor designed for reliable performance in industrial and commercial applications. With a 25A rating and a 110VAC coil, this contactor ensures efficient control of motors and other electrical equipment. Built to UL standards, it is suitable for various electrical control systems.

Key Features:

• 3-Pole Configuration:
  • Provides efficient control for industrial and commercial applications.
• High Current Capacity:
  • Rated for 25A (AC3) and 40A (AC1) loads.
• 110VAC Coil:
  • Designed for standard 110VAC control circuits.
• Auxiliary Contact:
  • Includes one normally open (N/O) auxiliary contact for additional control options.
• DIN Rail Mount:
  • Allows easy installation on standard DIN rails.
• Durable Construction:
  • Manufactured to UL standards for long-lasting performance and safety.
• Screw-Type Terminals:
  • Ensures secure and reliable wiring connections.

Specifications:

• Model: NC1-2510
• Coil Voltage: 110VAC
• Rated Current: 25A (AC3) / 40A (AC1)
• Power Rating: 11 kW
• Poles: 3 N/O (Normally Open)
• Auxiliary Contact: 1 N/O (Normally Open)
• Mounting Type: DIN Rail
• Terminal Type: Screw-type connections
• Certifications: UL Listed

Applications:

• Controlling motors in industrial and commercial settings.
• Electrical panels and control systems.
• Automation systems requiring reliable contactor performance.
