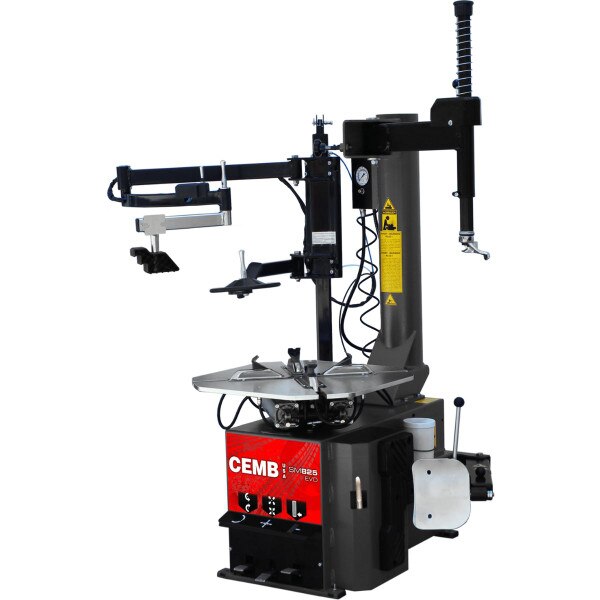

CEMB SM825PA Swim Arm Tire Changer + Press Arm

The SM825PA is a specialized press arm designed for tire changers, specifically to assist in handling tough sidewall tires and custom wheels. Below are the detailed technical specifications of the press arm:

• Model: SM825PA
• Type: High-performance press arm for swing arm tire changers
• Compatible Tire Changer: SM825EVO and similar models
• Rim Clamping Capacity:
  • External Clamping: 13" - 24"
• Maximum Wheel Width: 15"
• Maximum Tire Diameter: 44"
• Operating Pressure: 145 PSI (10 bar)
• Power Supply: 110V, single-phase (air-powered motor option available)
• Bead Breaking Force: Multi-angle adjustable bead breaker
• Safety Features:
  • Safety limiter and bead sealing inflation jets integrated into the clamping jaws
  • Custom mount/demount head with replaceable plastic inserts for wheel protection
• Mounting Mechanism: Dual table clamping cylinders with added specifications for alloy wheel protection
• Weight: 630 lbs (286 kg)

Applications:

• Suited for mid to high-volume tire shops.
• Ideal for servicing stiff sidewall tires and custom wheels.

The SM825PA press arm enhances precision and efficiency, ensuring smooth tire changing with minimized risk to high-end wheels.
