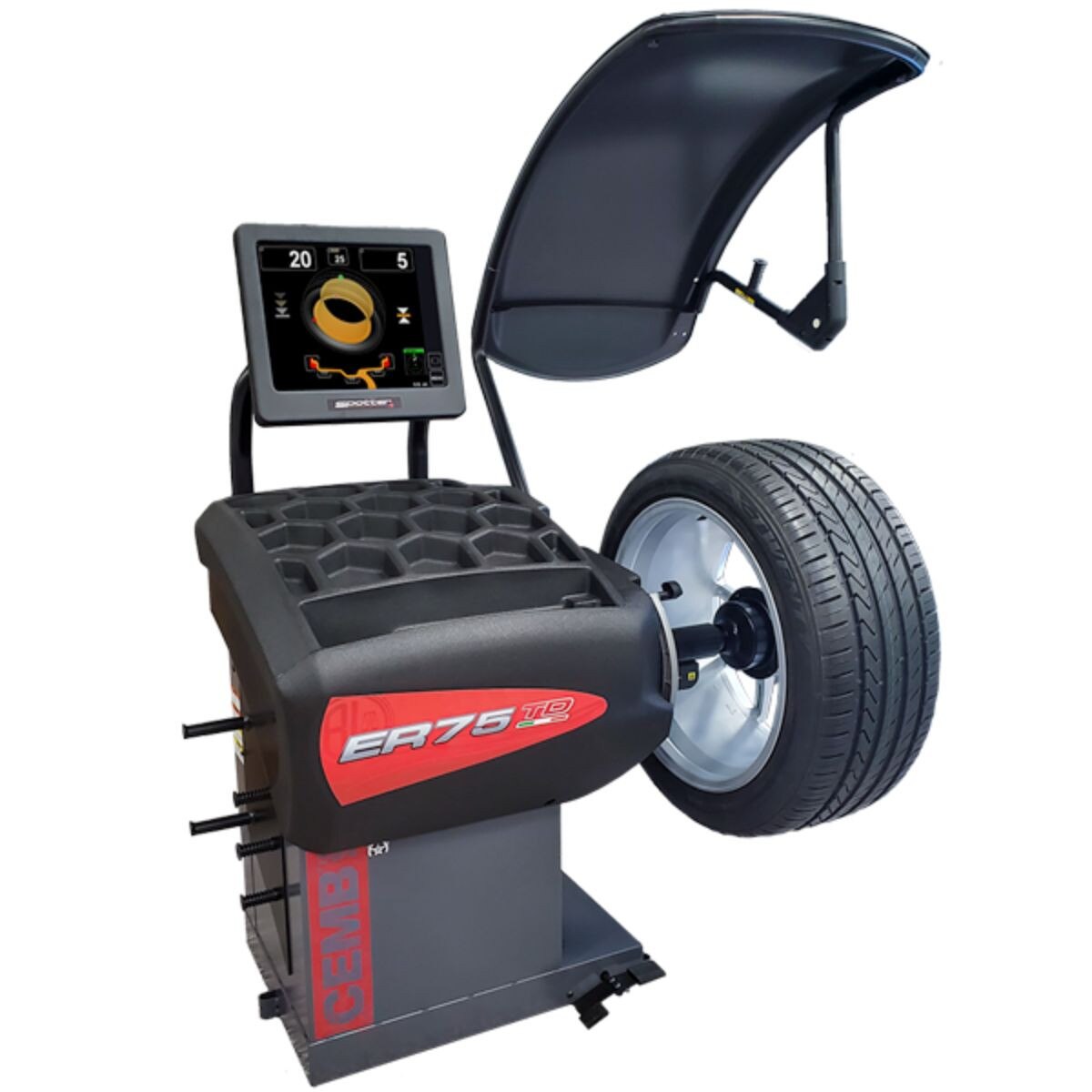

CEMB ER75TD HubMatch® RFV Automatic Wheel Balancer
The CEMB ER75TD is a high-volume diagnostic wheel balancer designed to enhance efficiency and precision in tire service operations.Equipped with advanced technology and an ergonomic design, it offers intuitive operation and accurate balancing for a wide range of wheel types.
Key Features:
AutoAdaptive™ Mode: Automatically calculates tolerance values to minimize steering wheel vibrations.
One Plane Balancing (OPB): Simplifies the balancing process by reducing it to a single plane, saving time and improving accuracy.
HubMatch® Technology: Ensures the assembly is round when rolling on the vehicle, enhancing ride quality.
Automatic Approach System: Positions the wheel within 15° of the correction point, reducing operator effort.
Touchscreen Interface: Provides an intuitive user experience for efficient operation.
Laser Spotter: Indicates exact weight placement locations inside the rim for optimal balance.
EMS Sonar: Utilizes sonar sensors for precise, contactless measurement of rim width.
Ergonomic Design: Features a spacious weight tray and user-friendly layout to enhance workflow efficiency.
Technical Specifications:
Power Supply: 220V, 1-phase
Wheel Clamping Type: Pneumatic
Maximum Rim Diameter: 30" (765 mm)
Maximum Rim Width: 20" (510 mm)
Maximum Tire Diameter: 42" (1,067 mm)
Maximum Wheel Weight: 165 lbs. (75 kg)
Balancing Speed: < 100 rpm
Balancing Accuracy: < 0.1 oz (< 1 g)
Average Cycle Time: Approximately 5 seconds
Overall Dimensions: 51.5" W x 59" H x 52" D
Shipping Weight: Approximately 375 lbs. (170 kg)
