CEMB ER72 Series Digital Wheel Balancers – ER72TD & ER72SE
CEMB ER72 Series Digital Wheel Balancers – ER72TD & ER72SE
The CEMB ER72 Series represents cutting-edge technology in digital wheel balancing, offering two powerful models to meet the demands of professional tire shops: the ER72TD with quick manual clamping, and the ER72SE with pneumatic clamping for high-speed operations. Both models come equipped with AutoAdaptive™ technology, laser-guided weight placement, and intuitive interfaces that simplify balancing while enhancing accuracy.
Whether you're looking for a cost-effective, fast-balancing solution (ER72TD) or a high-throughput, pneumatic clamping machine (ER72SE), the ER72 Series delivers unmatched performance and reliability.
✅ Shared Features:
AutoAdaptive™ Technology minimizes vibration by adjusting balance tolerances to vehicle-specific parameters
Spotter Laser System ensures precise adhesive weight placement
OPB (One Plane Balancing) reduces labor time by applying weights on a single plane
Automatic 3D Measurement of rim distance, diameter, and width
Electromagnetic Brake holds the wheel in place at correction point
LED-lit workspace for increased visibility inside the rim
Ergonomic design with easy-to-use interface and compact footprint
🔄 Model Options:

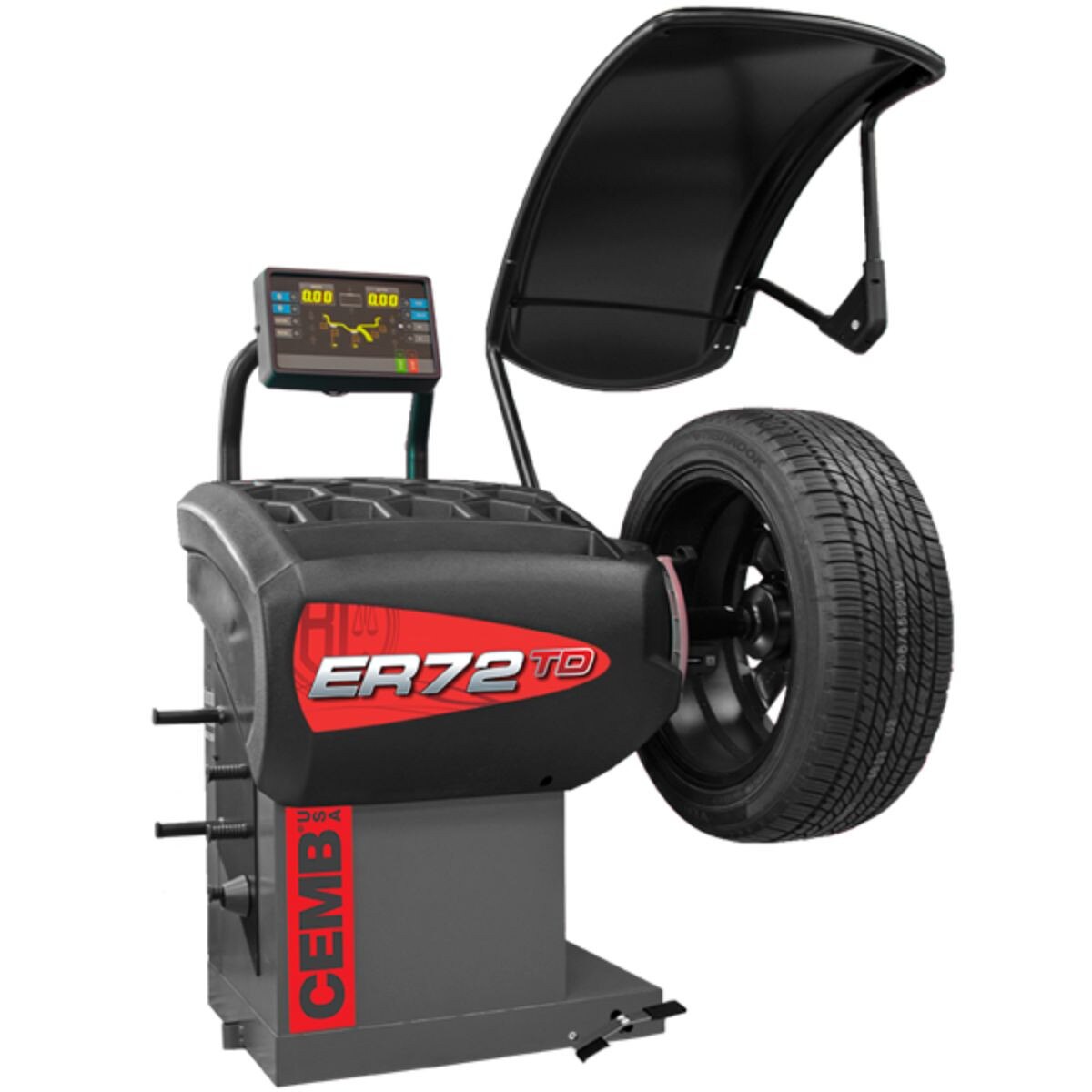

🧰 ER72TD – Manual Clamping:
Manual quick-locking wingnut
Perfect for medium-volume shops
110V or 220V power options
Cost-effective and operator friendly
⚙️ ER72SE – Pneumatic Clamping:
Pneumatic clamping for faster setups
Ideal for high-volume, commercial shops
220V operation for maximum efficiency
Enhanced stability and centering accuracy
📐 Specifications (Both Models):
Rim Diameter: 10"–30"
Rim Width: 1.5"–20"
Max Tire Diameter: 42"
Max Wheel Weight: 165 lbs
Cycle Time: ~5 seconds
Balancing Accuracy: < 0.1 oz (1 g)
| Feature | ER72TD (Manual Clamping) | ER72SE (Pneumatic Clamping) |
|---|---|---|
| Clamping Type | Quick-locking manual wingnut | Pneumatic clamping |
| Ideal For | Medium-volume tire shops | High-volume, professional shops |
| Power Supply | 110V or 220V | 220V only |
| AutoAdaptive™ Technology | ✅ Yes | ✅ Yes |
| Laser Spotter System | ✅ Yes | ✅ Yes |
| OPB (One Plane Balancing) | ✅ Yes | ✅ Yes |
| Automatic 3D Measurement | ✅ Yes | ✅ Yes |
| Electromagnetic Brake | ✅ Yes | ✅ Yes |
| LED Work Area Light | ✅ Yes | ✅ Yes |
| Max Wheel Weight | 165 lbs (75 kg) | 165 lbs (75 kg) |
| Cycle Time | ~5 seconds | ~5 seconds |
| Balancing Accuracy | < 0.1 oz (1 g) | < 0.1 oz (1 g) |
| Rim Diameter Range | 10"–30" | 10"–30" |
| Rim Width Range | 1.5"–20" | 1.5"–20" |
| Max Tire Diameter | 42" | 42" |
