Branick 5130 Tire Spreader for Passenger/Light Trucks

Branick 5130 Tire Spreader for Passenger Cars & Light Truck Tires

Overview:

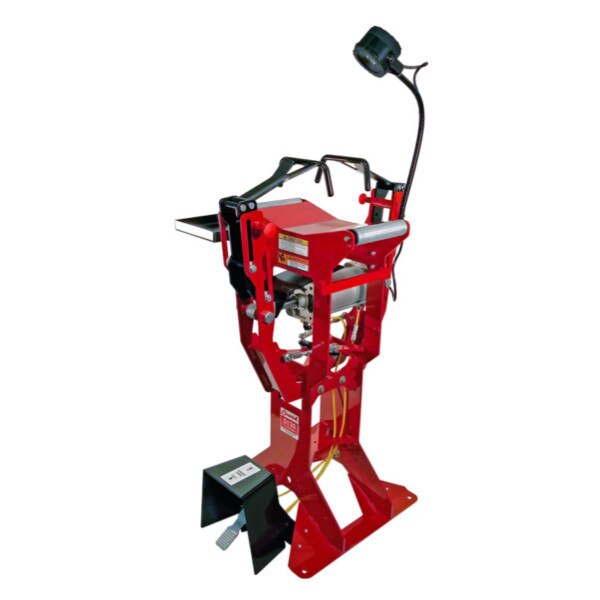

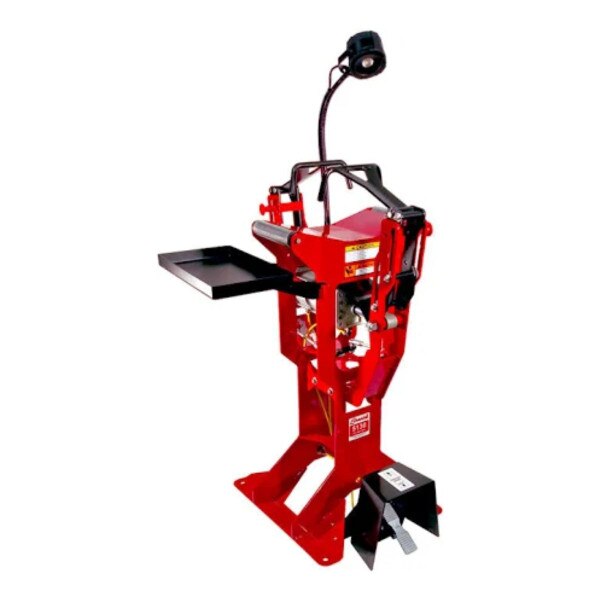

The Branick 5130 Tire Spreader is the ultimate solution for tire inspection and repair. Designed to handle both passenger and light truck tires, this air-powered spreader is engineered for efficiency, durability, and ease of use. With a built-in tool tray, debris blocking cylinder guard, and spring-loaded pin adjustment, the Branick 5130 provides unmatched convenience. Its compact footprint minimizes shop space requirements, while the stable base can be securely bolted to the floor for extra stability. The inclusion of a high-impact industrial light on a flexible arm further enhances visibility, making every inspection and repair job smoother and more precise.

Key Features & Benefits:

• Efficient Air-Powered Operation:
  • Reduces operator fatigue while increasing productivity.
• Compact & Space-Saving Design:
  • Takes up minimal shop space, yet delivers maximum performance.

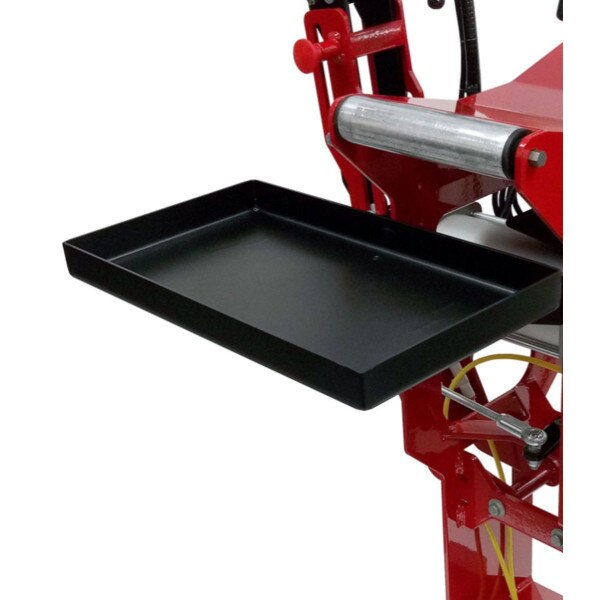

• Convenient Built-In Tool Tray:
  • Keeps essential tools within arm’s reach.
• Enhanced Safety and Durability:
  • Equipped with a debris-blocking cylinder guard.
• Adjustable Spreading Capability:
  • Quick spring-loaded pin adjustment allows for easy adaptation to various tire sizes.
• RMA-Compliant LED Lighting:
  • Built-in industrial light provides over 200' candles of illumination for clear visibility.
• Stable Base:
  • Can be bolted to the floor for added security.
• Made in the USA:
  • Constructed with quality materials to ensure long-lasting performance.
• One-Year Manufacturer Warranty:
  • Peace of mind backed by the manufacturer’s guarantee.

Specifications:

• Tire Cross Section: Up to 14 inches
• Bead Diameter: Up to 22.5 inches
• Base Dimensions: 18 x 25 inches
• Overall Dimensions: 27 x 25 x 40 inches

Operating Instructions:

1. Move spread hooks out from the tire platform.
2. Position the tire on the platform, steady it with one hand, and insert the spread hooks over the tire beads.

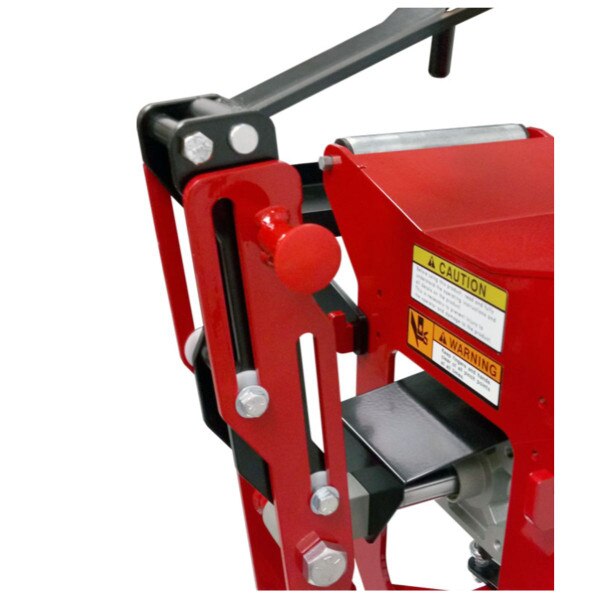

3. Adjust the spread hooks to the proper height by pulling the quick pin, moving the spread hook arms to the desired height, and releasing the pin.

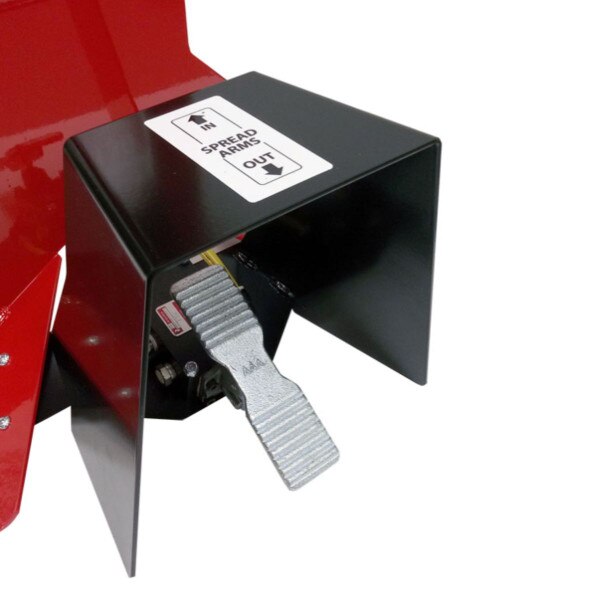

4. Use the foot valve to spread the tire to the desired width, then adjust the light for optimal visibility.
5. If the tire lifts off the spread platform, lower the spread hook arms to ensure a proper fit.
6. To rotate the tire, release pressure on the spread hooks and rotate the tire on the rollers.
7. Once inspection and repairs are complete, move the light away, release the spread hooks using the foot valve, and remove the spread hooks from the tire beads.
