Balcrank PANTHER® HP 3:1 Oil Piston Pumps
Product Description

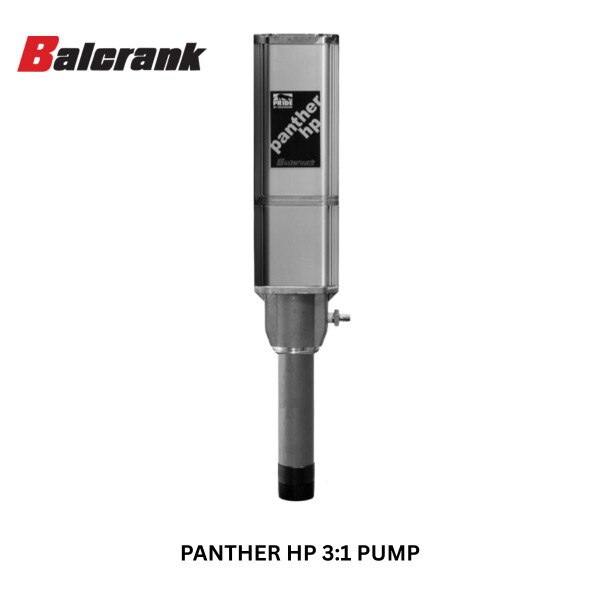

Balcrank Panther® HP 3:1 Oil Piston Pumps
The Panther® HP 3:1 double-acting pump is engineered for durability and consistent performance in dispensing lubricating oils (up to SAE 90), hydraulic fluids, and transmission fluids. Ideal for medium-volume applications like maintenance shops, small dealerships, and quick lubes.
Key Features & Performance:
Pump Ratio: 3:1 Medium-pressure, high-volume
Flow Rate: Up to 8 GPM (30 L/min)
Air Pressure Range: 100–150 PSI (7–10 bar)
Air Consumption: 19.7 SCFM at 100 PSI
Cycles per Gallon: 34 (8.98/L)
Max Fluid Stall Pressure: 490 PSI (33.7 bar)
Air Inlet: 1/4” NPT(F)
Fluid Inlet: 1” NPT(F) or 1 1/2” NPT(M)
Fluid Outlet: 3/4” NPT(F)
Construction:
Wetted Materials: Steel, Nickel-Plated Steel, Stainless Steel, Aluminum, Ultrathane, Buna-N™, Nylon
Air Piston Diameter: 2.5” (63.5 mm)
Free Flow (SAE 10W30 @ 68°F, 100 PSI): 4 GPM
Built-In Pressure Relief Valve Kit: Included for system protection
Dimensions (in / mm):
| Model | A | B | C | D |
|---|---|---|---|---|
| 1130-015 / 020 | 23.5" (523.9 mm) | 14 3/8" (285 mm) | 2 1/8" (54 mm) | 6 1/2" (158.7 mm) |
| 1130-017 | 21 8/9" (555.6 mm) | 14 3/8" (285 mm) | 2 1/8" (54 mm) | 7 1/2" (190.5 mm) |
Model Variants:
1130-015: 3:1 Bare Stub Pump (Carbon Steel)
1130-017: 3:1 Bare Stub Pump with Flange Mount
1130-020: 3:1 Pump with Bung Adapter
Important Notes:
Do NOT use with flammable fluids or the Pride Series in hazardous environments.
Use a pressure relief valve to prevent system damage from thermal expansion.
Compatible Fluids: Synthetic & mineral-based lubricants, hydraulic and transmission fluids.
