Atlas TC229 Tire Changer with Dual Arms for Service
Product Description

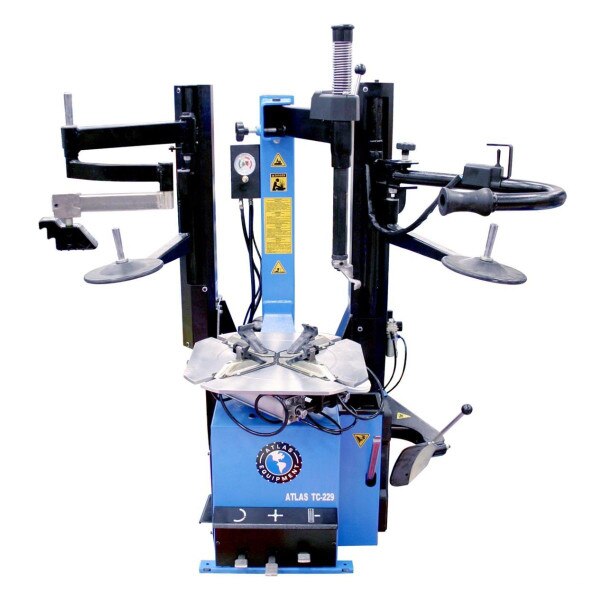

Atlas TC229 Tire Changer with Dual Assist Arms
Overview:
The Atlas® TC229 Tire Changer is a robust, versatile solution designed to handle a wide range of tires with ease. It features dual assist arms for efficient operation and includes a bead blaster system to simplify inflation of stiff sidewall tires. Ideal for homeowners, small garages, or ATV and motorcycle dealers, the TC229 is engineered for both professional and personal use.
Key Features and Benefits:
- Rim Clamp/Swing Arm Design:
- Simple yet effective mechanism for mounting and demounting tires.

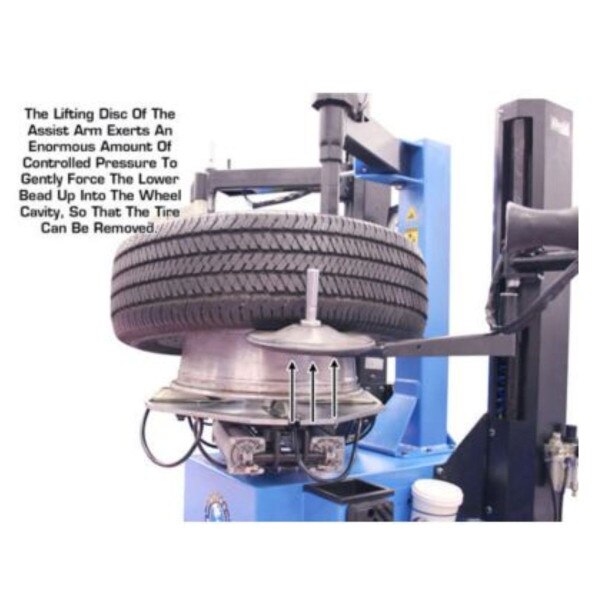

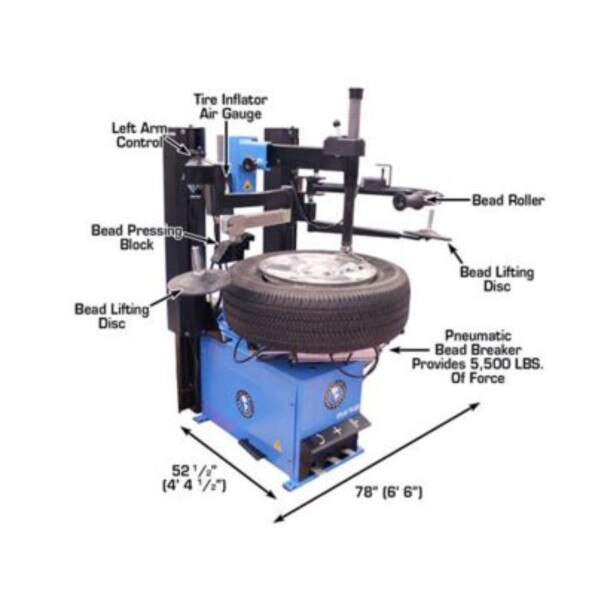

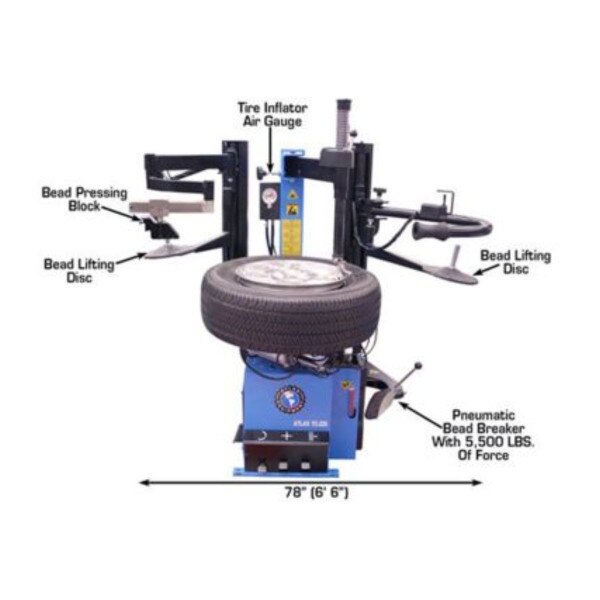

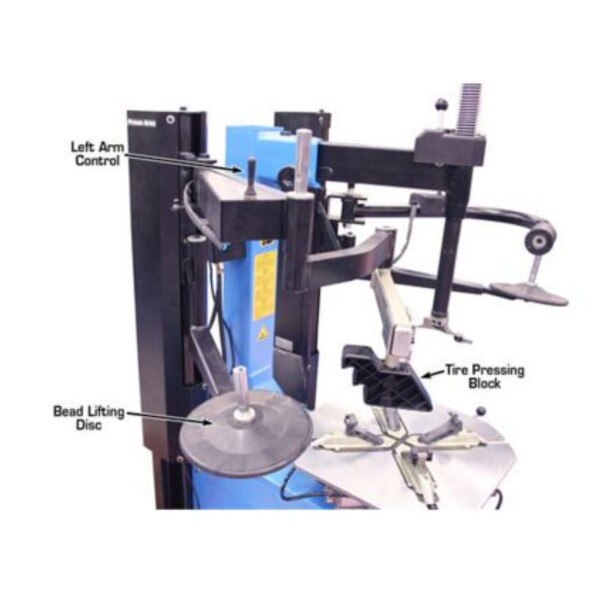

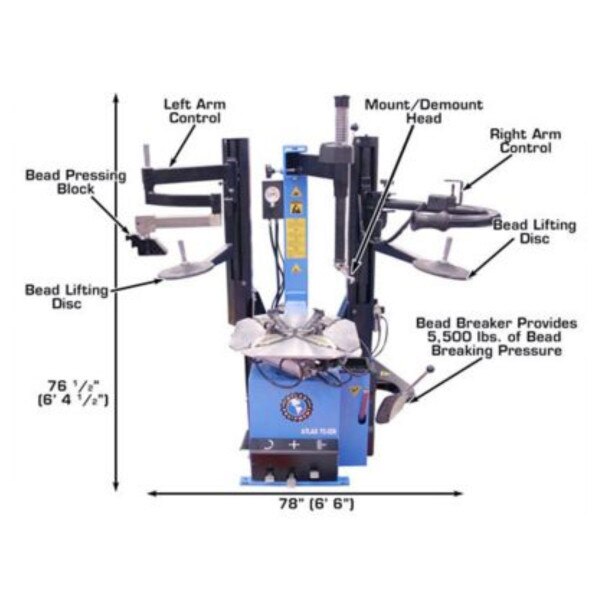

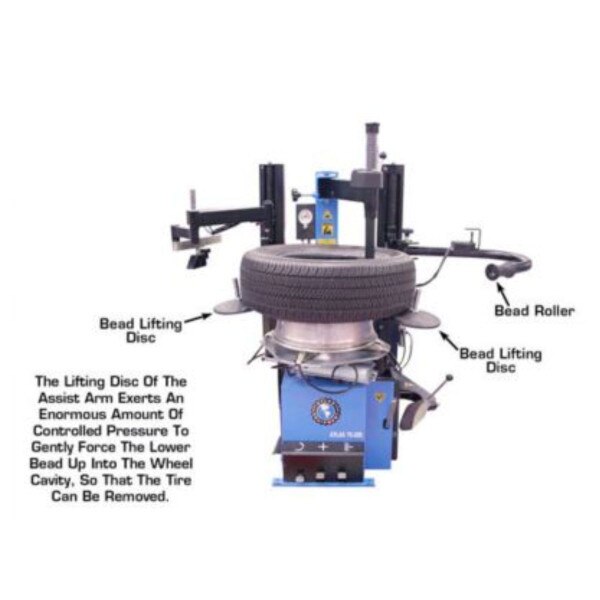

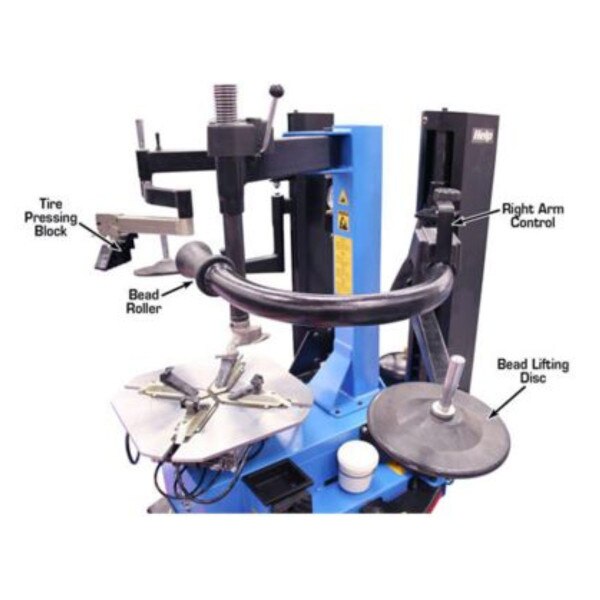

- Dual Assist Arms Included:
- Additional pressing and lifting arms make it easier to handle low-profile and run-flat tires.
- Air Operated Jaws & Bead Breaker:
- Provides powerful clamping and bead breaking force (5500 lbs) for stubborn tire beads.

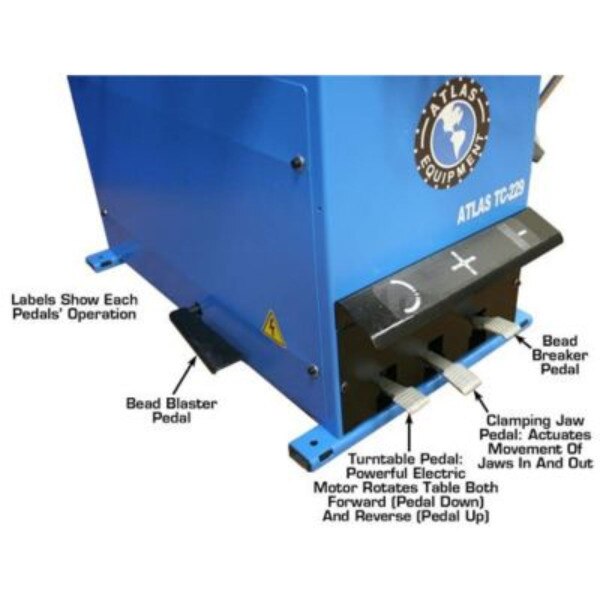

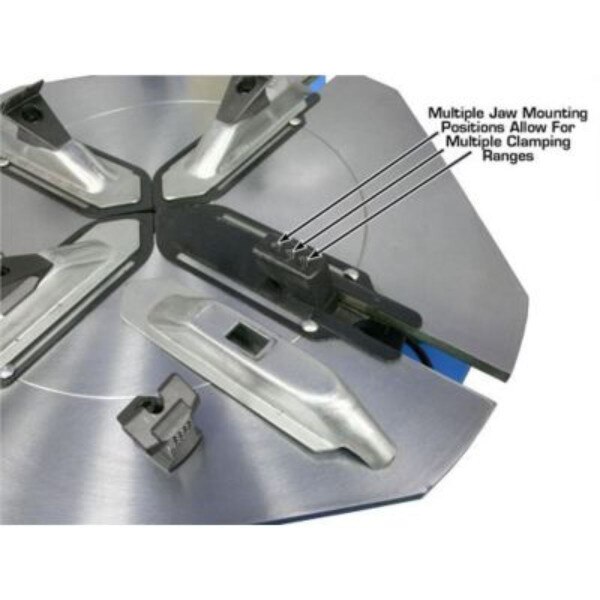

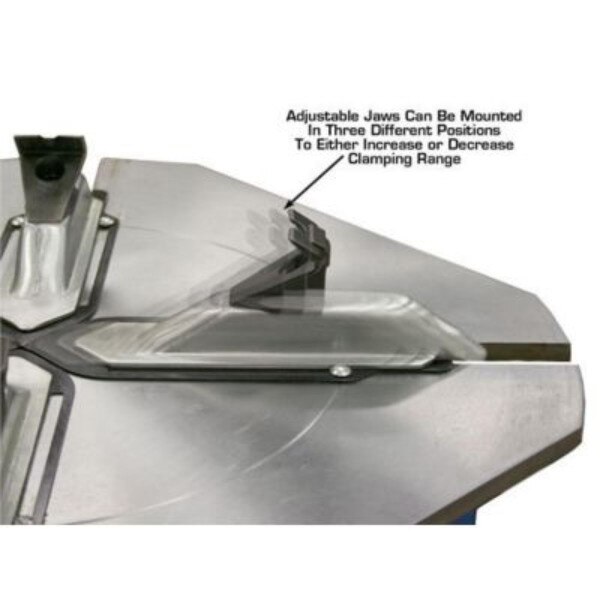

- Electric Turntable with Adjustable Jaws:
- Three mounting positions accommodate a variety of rim sizes.

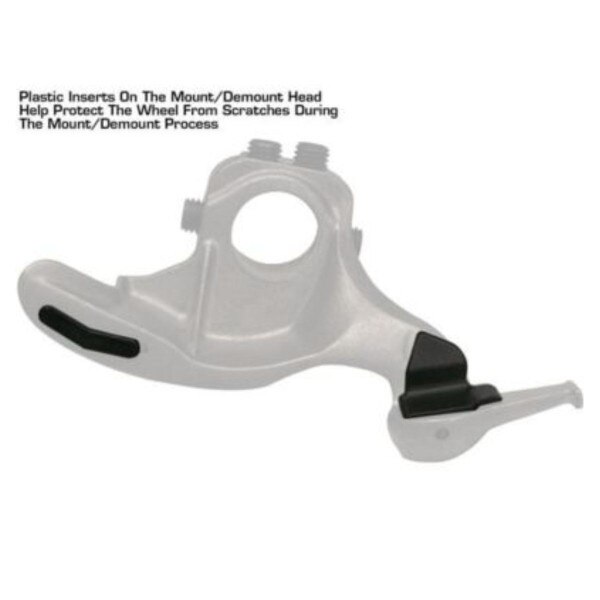

- Metal Mount/Demount Head:
- Features replaceable plastic inserts to protect rims.

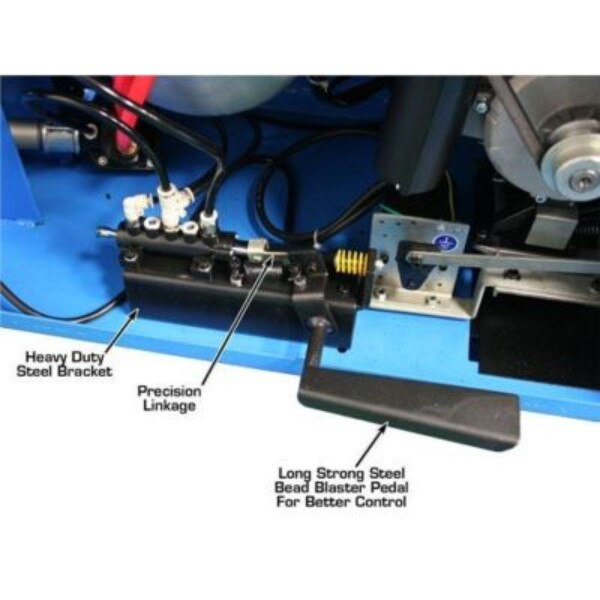

- Built-in Bead Blaster System:
- Makes inflating difficult tires fast and efficient.

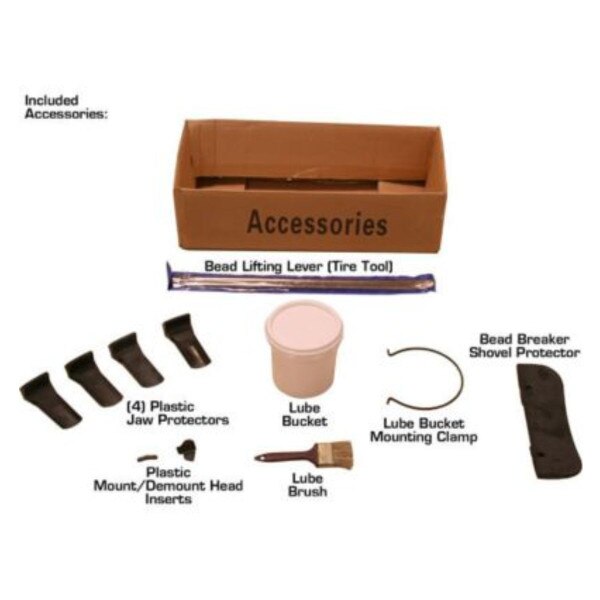

- Convenience Accessories Included:
- Lube bucket and brush, large plastic jaw covers, bead breaker shovel cover, and replacement plastic inserts.
- Additional Options Available:
- Motorcycle and ATV adapters, center post adapter, quick-change mount/demount head kit, and more.
- Warranty & Support:
- 1-year parts-only warranty, with replacement parts and wear items always in stock.
Specifications:

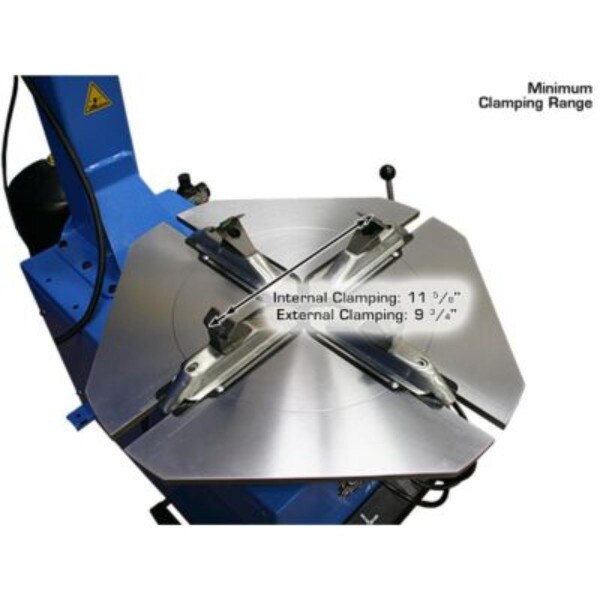

- External Locking Rim Dimensions: 9 3/4" to 23 1/4"

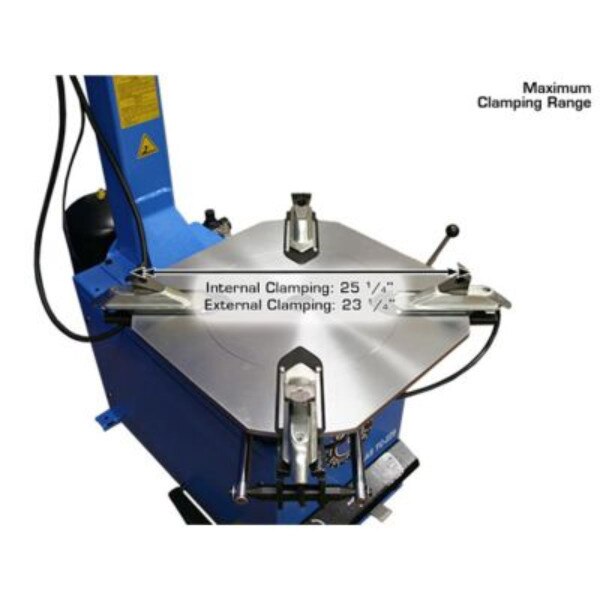

- Internal Locking Rim Dimensions: 11 5/8" to 25 1/4"
- Maximum Tire Diameter: 39"
- Maximum Wheel Width (Bead Breaker): 13"
- Table Motor: 1 HP
- Turntable Rotating Torque: 885 ft/lbs.
- Bead Breaker Force: 5500 lbs.
- Air Requirement: 90–110 PSI (must not exceed 140 PSI)
- Electric Requirement: 110V

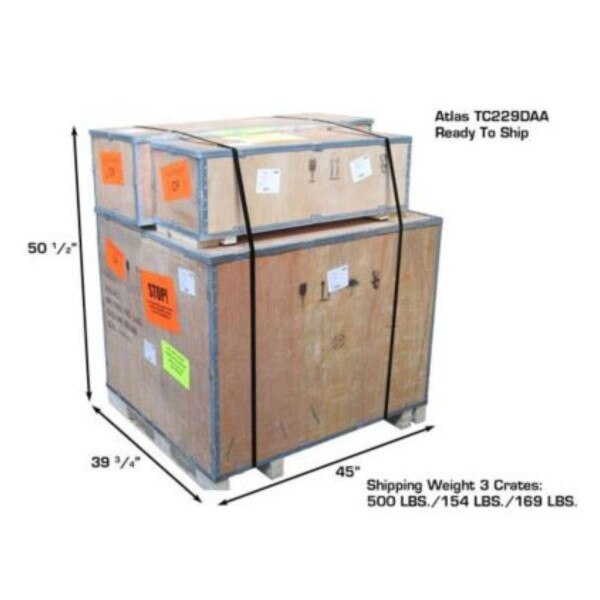

- Shipping Weight: 800 lbs.
Applications:
- Mounting and demounting high-performance, low-profile, and run-flat tires.
- Servicing alloy and steel wheels without damaging rims or tires.
- Suitable for light trucks, SUVs, motorcycles, and ATVs.
