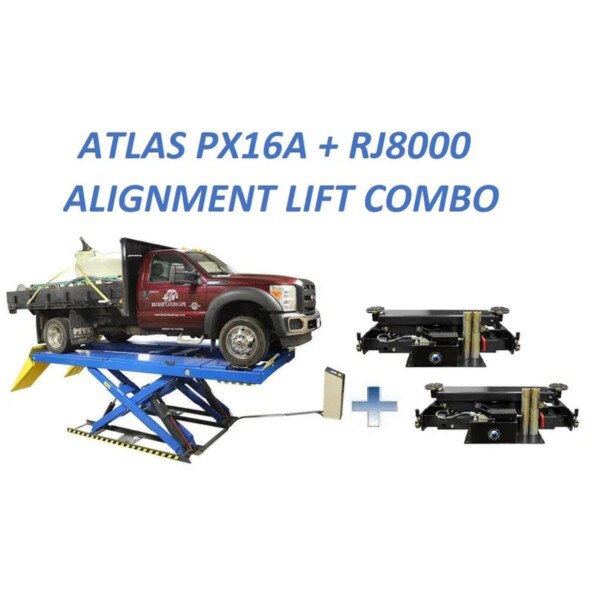

Atlas PX16A Scissor Alignment Lift W/RJ8 Rolling Jack Combo

The Atlas® PX16A Scissor Alignment Lift and RJ8 Rolling Jacks Combo is a comprehensive lifting solution designed for service shops that require a space-efficient alignment lift capable of accommodating a wide range of vehicles, from passenger cars to heavy-duty long-wheelbase trucks and vans

Key Features:

High Lifting Capacity: The PX16A lift boasts a 16,000 lb. capacity, making it suitable for various vehicle types.

Space-Saving Design: Its narrow width allows for installation in shops with limited space without compromising functionality.

Comprehensive Alignment Capabilities: Equipped with built-in slip plates and includes alignment turntables, facilitating precise 4-wheel alignments for vehicles with wheelbase lengths ranging from 96 inches to 184 inches.

Open Center Design: Provides easy access to the underside of vehicles, enhancing service efficiency.

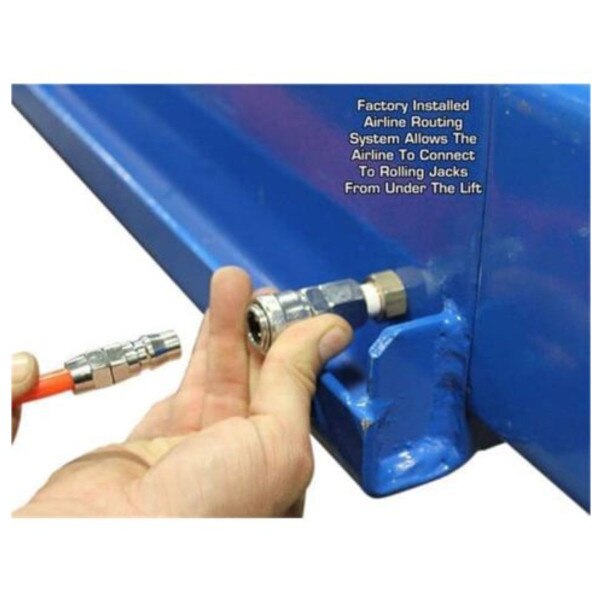

Air-Operated Single Point Lock Release: Ensures safety and ease of use (requires external air supply, not included).

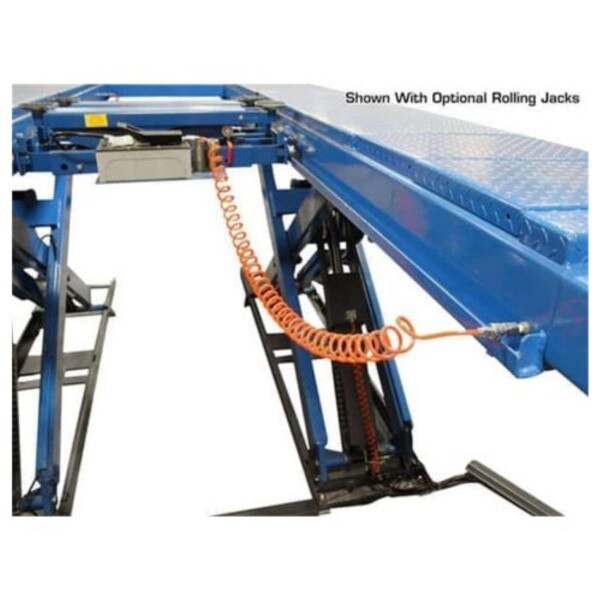

RJ8 Rolling Bridge Jacks: The combo includes two RJ8 rolling jacks, each with an 8,000 lb. capacity, ideal for lifting vehicles off the runways for tire and brake services.

Specifications:

Atlas® PX16A Lift:

Capacity: 16,000 lbs.

Minimum Lift Height: 13 1/4 inches

Maximum Lift Height: 71 1/2 inches

Overall Length with Ramps: 271 inches

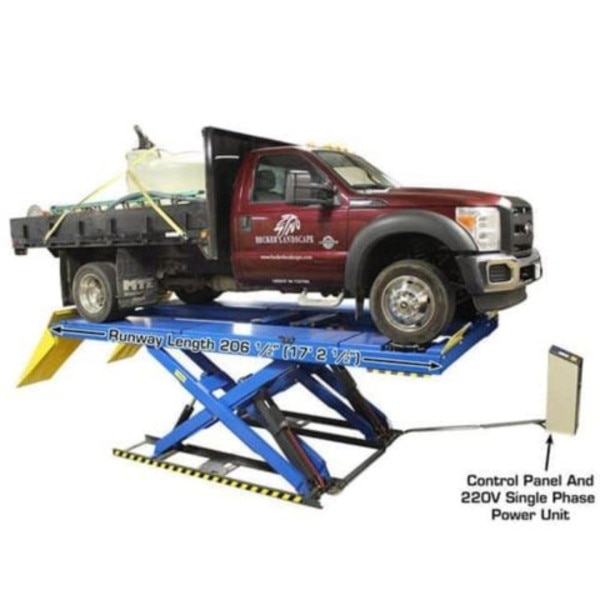

Overall Length without Ramps: 206 1/2 inches

Overall Width: 94 inches

Runway Width: 23 3/4 inches

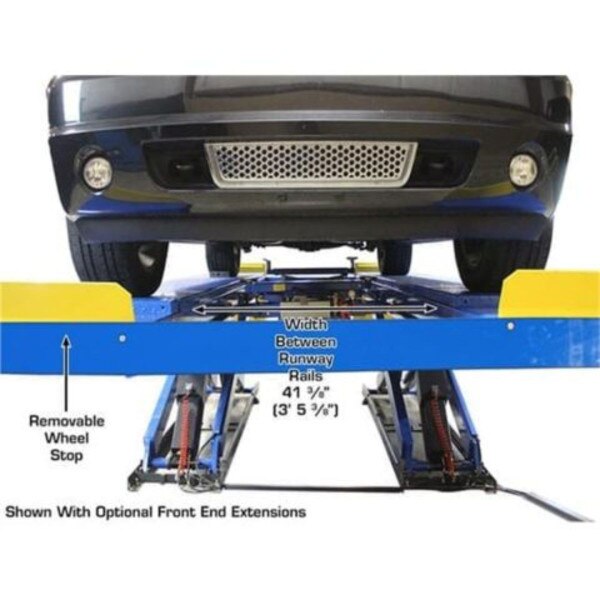

Distance Between Runways: 44 7/8 inches at top; 41 3/8 inches at rails

Air Requirement: 85-120 PSI

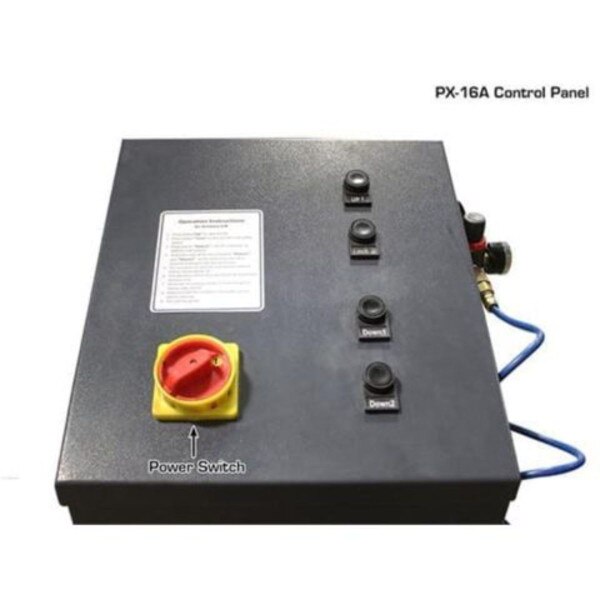

Motor/Electrical Requirement: 220V ±5% (209-231V), single-phase, 30-amp breaker required

Oil Requirement: 3-5 gallons of AW32 or AW46 (not included)

Shipping Weight: 6,200 lbs.

Atlas® RJ8 Rolling Jacks:

Capacity: 8,000 lbs. each

Maximum Width: 66 1/2 inches

Minimum Width: 40 inches

Distance Between Runway Capability: 34 1/2 inches to 55 inches

Maximum Lifting Height (with Adapters): 30 inches

Air Requirement: 70-115 PSI (external air supply required, not included)

Shipping Weight: 390 lbs.

Adapter Heights: Two each of 2 inches and 3 inches

Arm Hole/Adapter Peg Size: 1.5 inches

This combo package offers a robust and versatile solution for automotive service shops aiming to perform efficient alignments and comprehensive vehicle maintenance. The inclusion of the RJ8 rolling jacks enhances the lift's functionality, allowing for easy wheel-off procedures necessary for tire and brake services.
