Atlas Electric Battery Lifting Table, 3300 lb Capacity
Product Description
Atlas Equipment Electric Battery Lifting Table
Features and Benefits:
- Heavy-Duty Electric Battery Lifting Table
- 3300 lb. Capacity for handling heavy EV battery assemblies
- 110V Electric/Hydraulic Operated (external 110V power supply required)
- Highly Portable & Easy to Move
- Versatile Tilting Platform Adjustments for precise positioning
- Extendable Platform Length for accommodating various battery sizes

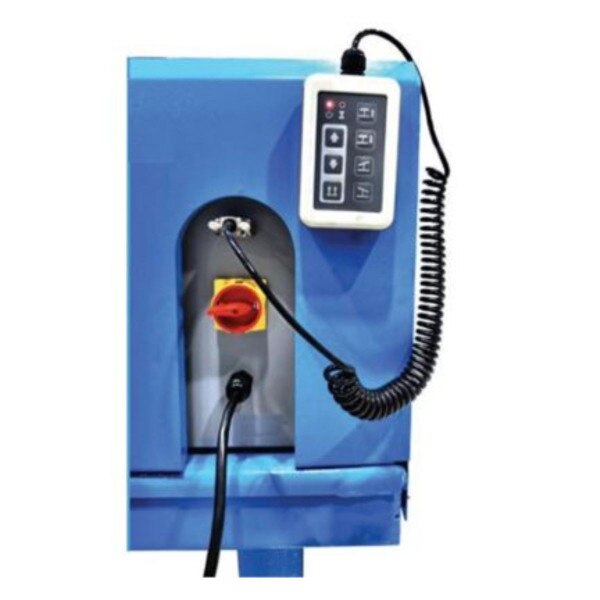

- Wired Remote Control for both lifting and tilting functions
- Tabletop with Multiple Threaded Holes for accessory attachment (accessory kit sold separately)

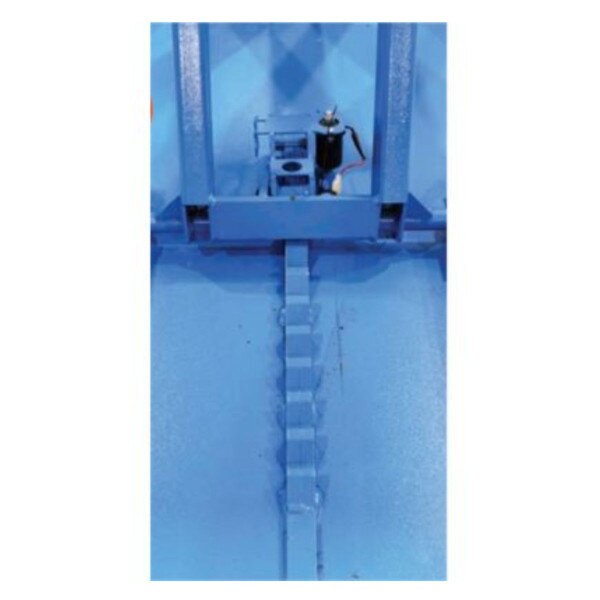

- Built-in Safety Lock Ladder with manual release
- Reinforced Legs for extra stability when in use
- 2-Year Structural & Hydraulic Warranty
- 2-Year Warranty on Material and Workmanship
- FREIGHT PREPAID
As Electric Vehicles (EVs) become more prevalent, the demand for specialized tools to support battery handling and maintenance is growing. The Atlas® Electric Battery Lift Table combines high lifting capacity, versatile platform adjustments, and robust design, making it the perfect solution for handling EV battery assemblies in both large and small automotive shops.
This lift table ensures efficiency and safety when working with various EV models, allowing easy removal and installation of battery packs.
Atlas® EVBL3310 Specifications
- Capacity: 3,300 lbs.
- Maximum Lift Height: 71 1/4"
- Minimum Lift Height: 29 1/4"
- Expandable Lifting Platform Length: 68 1/4" - 79 3/4"
- Platform Width: 31 3/4"
- Tilting Angles: ±5.1° (left/right) | ±2.2° (front/rear)
- Motor/Electrical Requirement: 110V single-phase (30-amp breaker recommended)
- Shipping Weight: 1,500 lbs.
