Atlas® BP12000X Heavy-Duty 12,000 LB. Capacity Base Plate 2-Post Lift


Product Overview

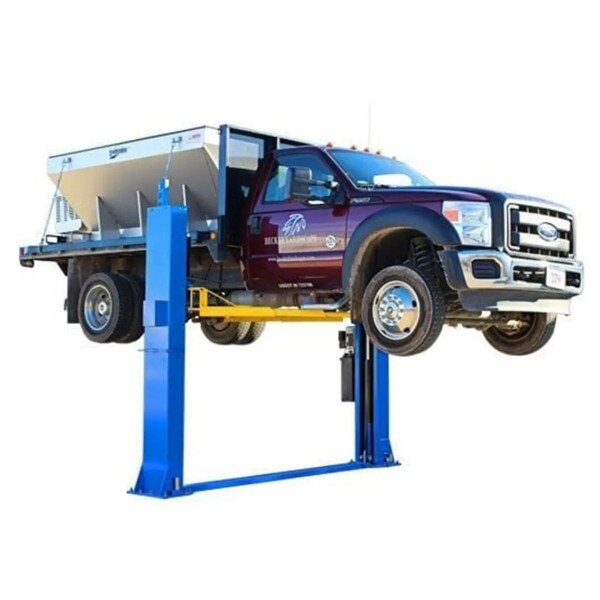

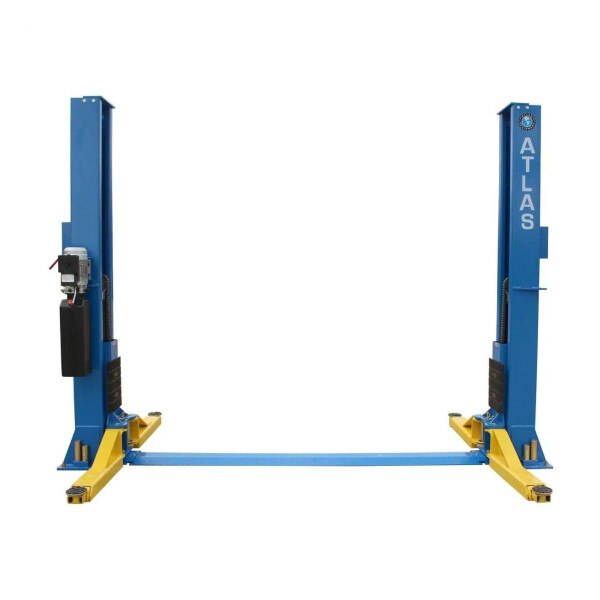

The Atlas® BP12000X is a robust, commercial-grade, heavy-duty 12,000 lb. capacity 2-post lift. Featuring oversized columns, symmetric three-stage arms, and a single-point lock release, this lift is specifically designed for commercial garages handling heavier vehicles with limited ceiling height. The adjustable width settings make it versatile for wider trucks, trailers, and convenient drive-through configurations.


Key Features

  • Capacity: 12,000 lb.
  • Design: Base plate, open-top style for low ceiling applications.
  • Adjustable Width: Customizable installation width for wider vehicles or easier access between columns.
  • Arms: 3-stage symmetric arms with automatic arm restraints for versatility and safety.

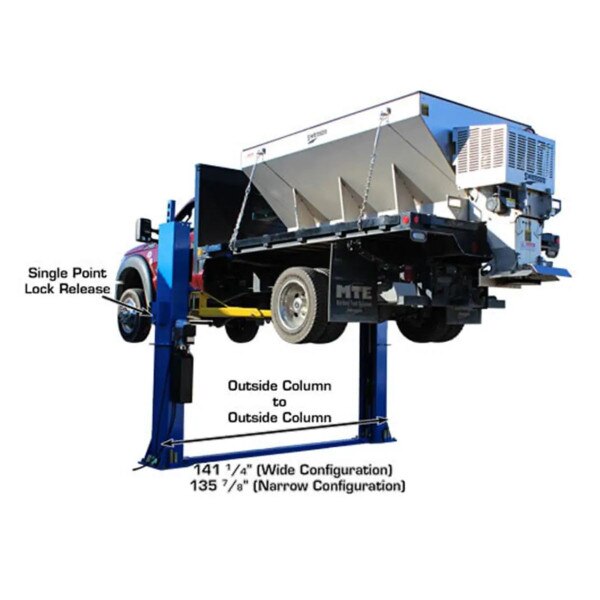

  • Locking Mechanism: Single-point lock release for ease of operation.
  • Construction: Powder-coated finish, rubber guards on carriages, and dual hydraulic chain-over cylinders.
  • Adapters: Includes a 12-piece truck adapter set for additional lifting flexibility.
  • Mounting Hardware: Included for easy installation.
  • Warranty: 5-year structural and 2-year hydraulic warranty (parts only).

Specifications

ParameterValue
Capacity12,000 lb.

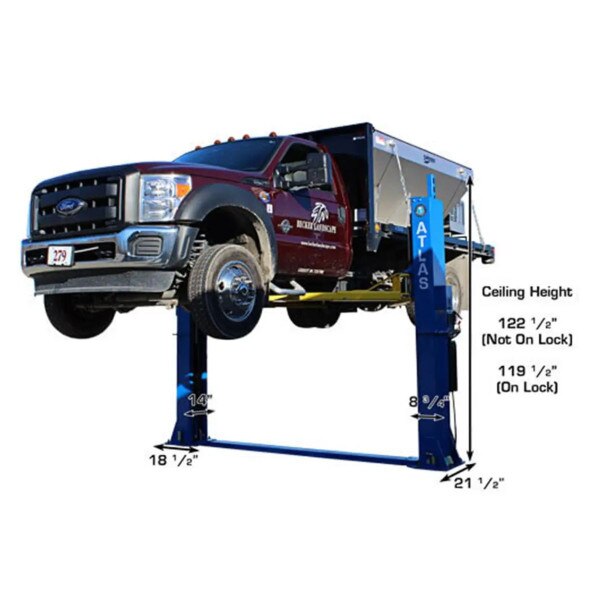

Overall Height122 1/2" (10′ 2 1/2")
Overall Floor Width149 3/8" or 154 1/2"
Inside Column Width118 1/8" or 123 1/2"

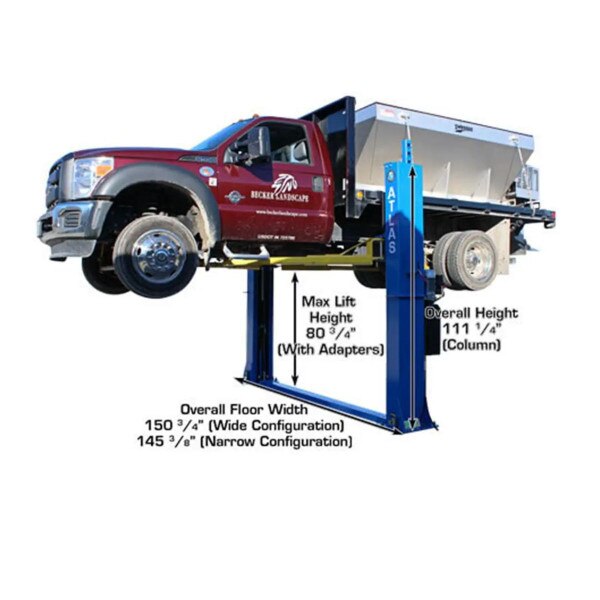

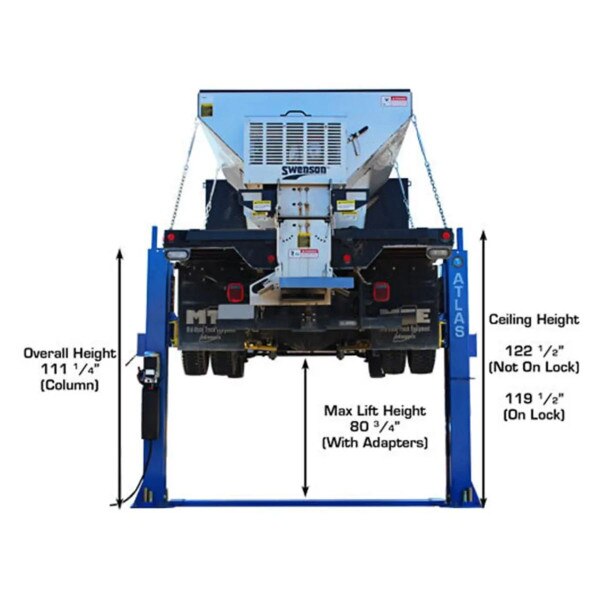

Maximum Lift Height77 1/2" (Without Adapters)
88 1/2" (With Adapters)
Minimum Arm Height4"

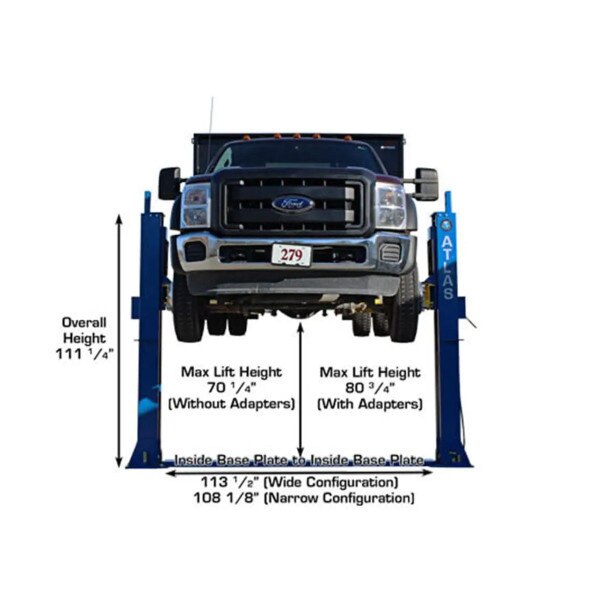

Drive Through Width103 5/8" or 109"
Column Size8 3/4" x 14"
Steel Column Thickness6mm
Base Dimensions18 1/2" x 21 1/2"
Motor/Electrical220V Single Phase, 30 Amp
Oil Requirement3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight2,130 lbs.
Concrete RequirementsMinimum 6" at 3000 psi.

Why Choose the Atlas® BP12000X?

  • Heavy-Duty Performance: Built to handle the most demanding vehicles with precision and safety.
  • Space Efficiency: Designed for garages with low ceiling heights, offering maximum utility without compromising on performance.
  • Versatility: Adjustable width and three-stage arms make it suitable for a wide variety of vehicle sizes.
  • Durability: High-quality materials and construction ensure long-lasting reliability.

Contact for More Information or Orders:

📧 Email: info@vpstiresrepair.com
📞 Phone: +1 (305) 592.9982

Equip your shop with the Atlas® BP12000X for a superior heavy-duty lifting solution today.
