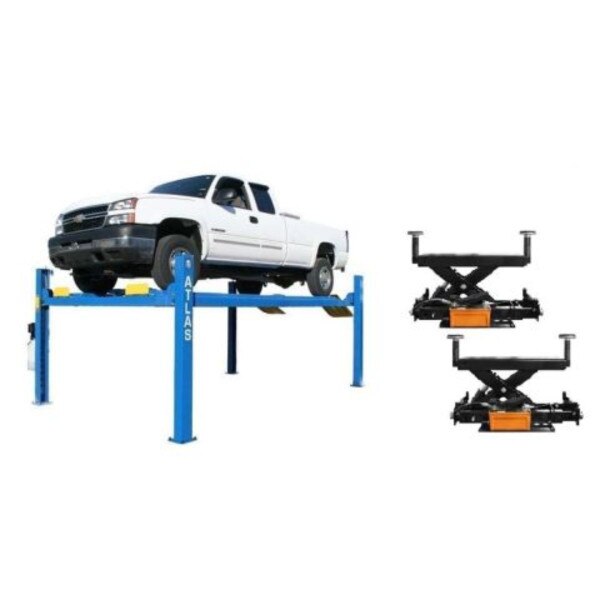

Atlas 412A Alignment Lift with RJ6 Rolling Jacks Combo

Atlas Equipment 412A Alignment Lift + RJ6 Rolling Jacks Combo

Features & Benefits:

• Heavy-Duty Commercial Grade Lift
  • Built for long-term, professional use.
• Extra Tall, Extra Wide & Extra Long Design
  • Accommodates a wide variety of vehicles.
• Diamond-Plated Runways
  • Provides superior traction and durability.

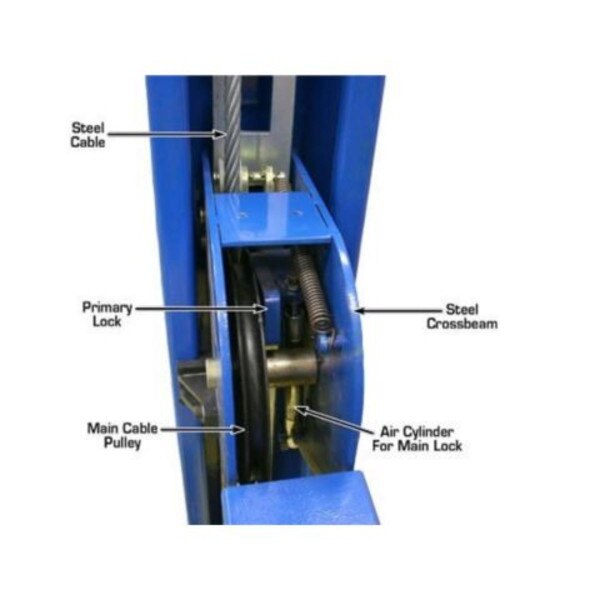

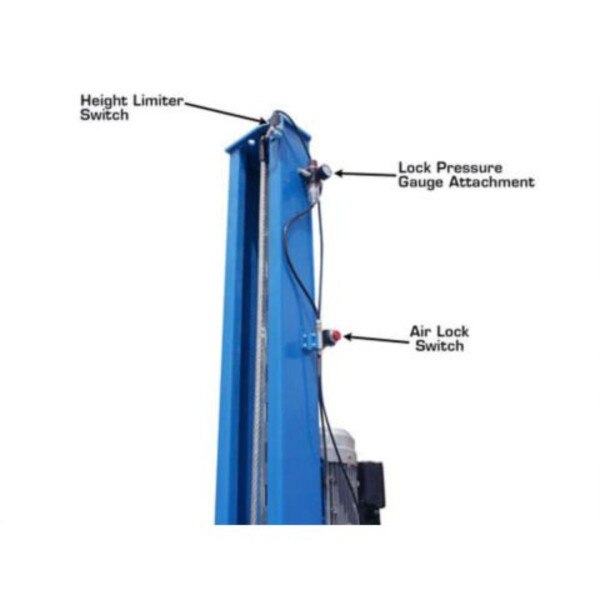

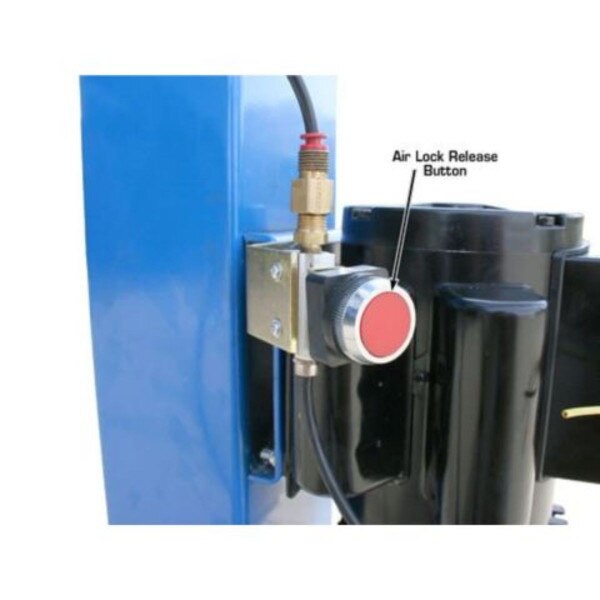

• Air Operated Single-Point Lock Release
  • External air supply required (not included).

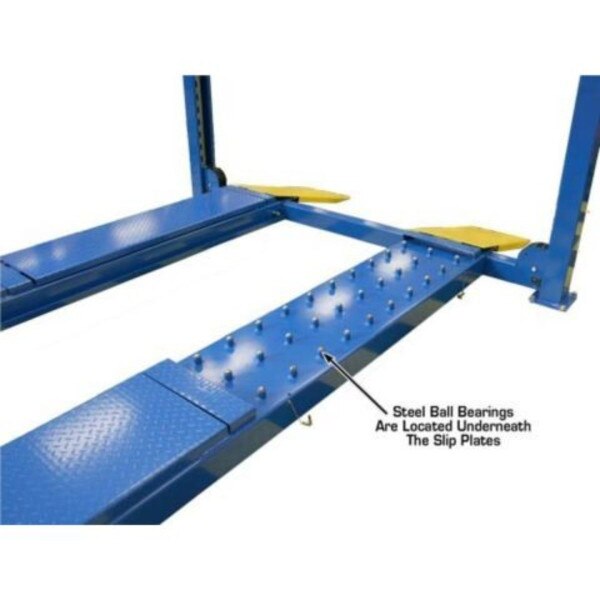

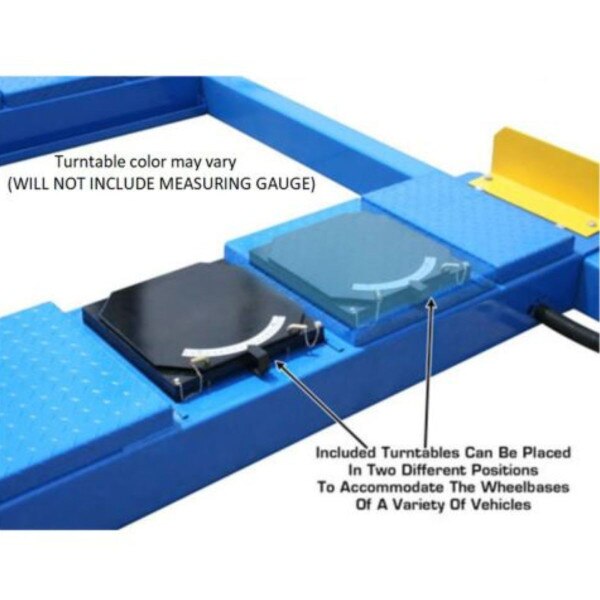

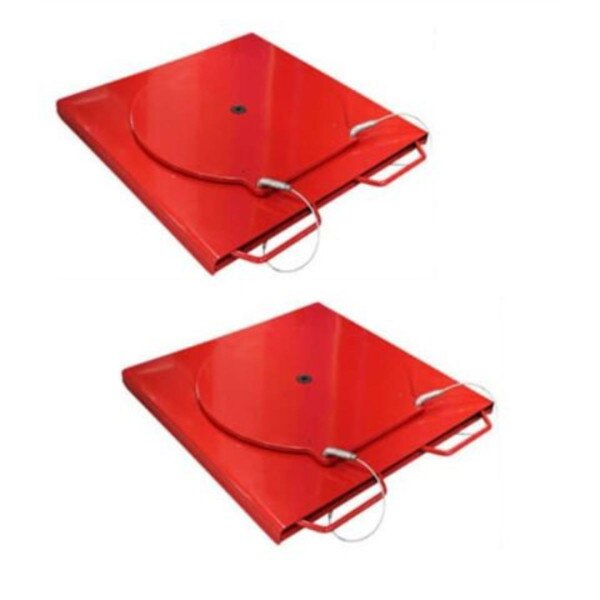

• Built-In Slip Plates & Alignment Turntables
  • Ensures precise alignment service.

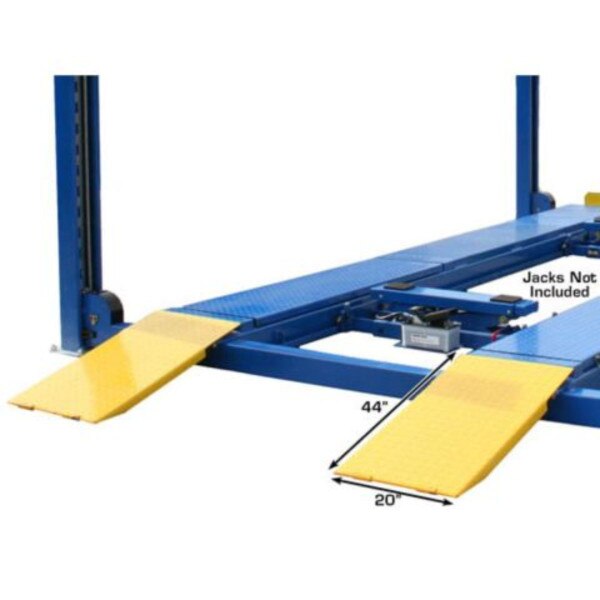

• Steel Approach Ramps Included
  • Additional drive-off ramps available (sold separately).
• Runway Extensions Available
  • Increases versatility for larger vehicles (sold separately).

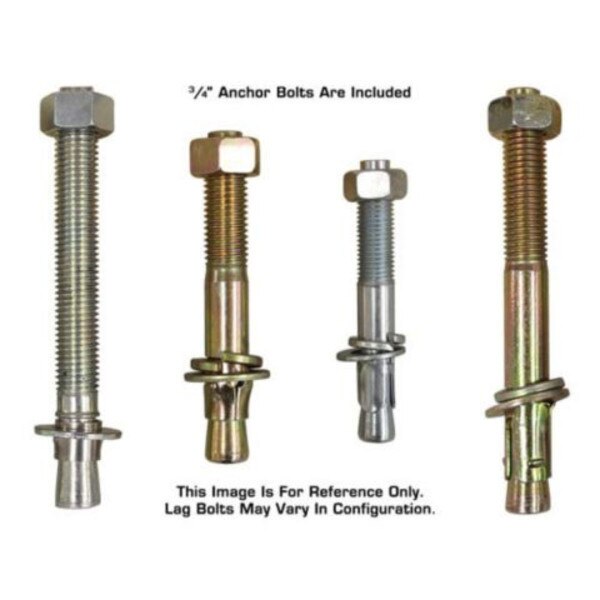

• Mounting Hardware Included
  • Complete installation package.
• RJ6 Rolling Bridge Jacks (Air Over Hydraulic)
  • Raises vehicle wheels off the lift runways for tire and brake services.
• Truck Adapter Set for Each Jack Included
  • Expands lifting capabilities.
• Freight Prepaid
  • No additional shipping costs.
• Forklift is REQUIRED to unload the lift from the truck.

Atlas® 412A Lift Specifications:

• Capacity: 12,000 lbs.
• Lifting Height (Top of Runway): 77 3/4" (6' 5 3/4")
• Clearance Under Runways: 70 1/4" (5' 10 1/4")
• Height of Columns: 89 3/4" (7' 5 3/4")
• Overall Width: 126 1/4" (10' 6 1/4")
• Overall Width with Motor: 135 1/4" (11' 3 1/4")
• Overall Length with Ramps: 236 1/2" (19' 8 1/2")
• Runway Length: 194 1/2" (16' 2 1/2")
• Runway Width: 20"
• Runway Thickness: 7 1/2"
• Width Between Runways: 43 1/4" (with Rail: 39 3/4")
• Outside Runway to Outside Runway: 83 1/4" (6' 11 1/4")
• Clearance Between Columns: 112 5/8" (9' 4 5/8")
• Length Between Columns: 183 1/4" (15' 3 1/4")
• Drive Thru Width: 98" (8' 2")
• Air Requirement: 85-115 PSI

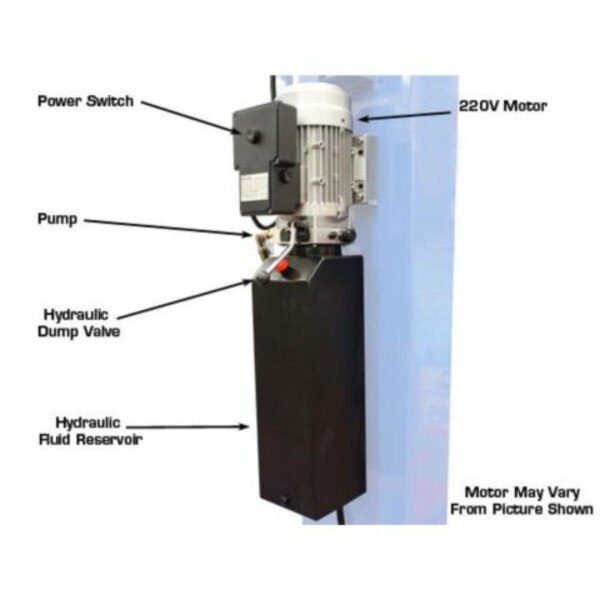

• Motor/Electrical Requirement: 220V, 1-Phase, 30-Amp Breaker Required
• Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)

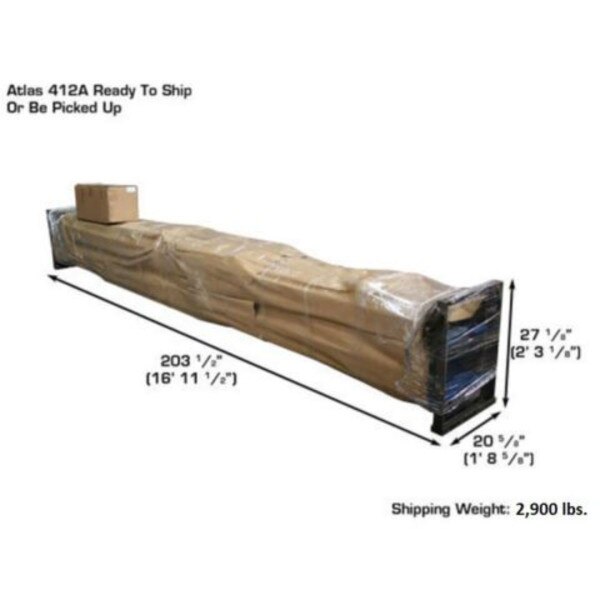

• Shipping Weight: 2,900 lbs.

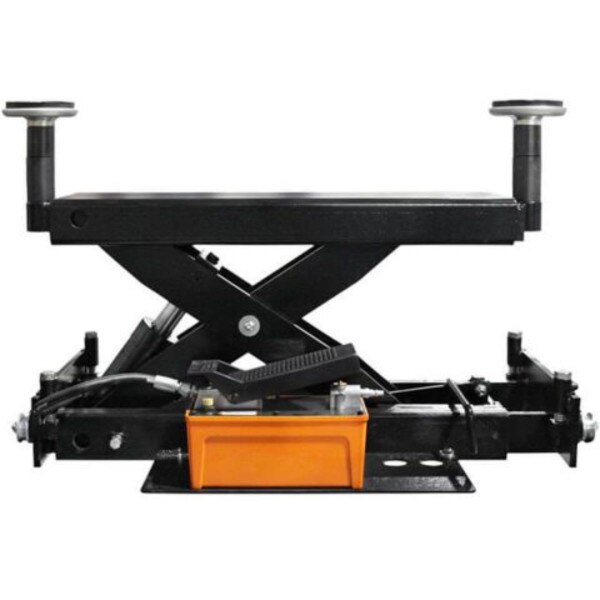

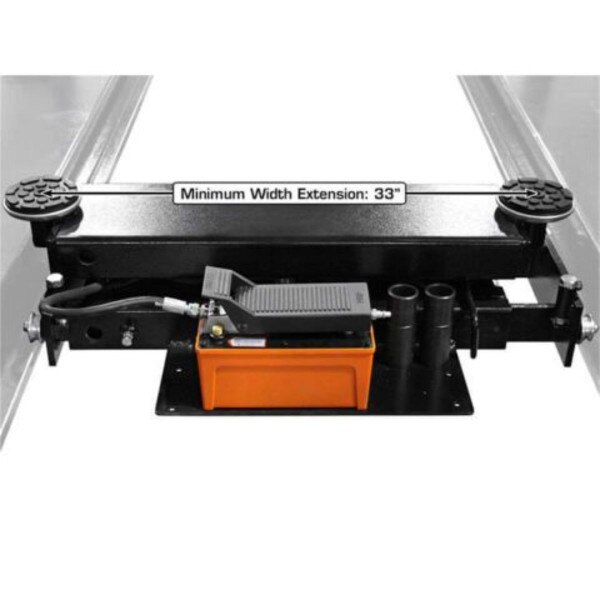

Atlas® RJ6BK Rolling Jack Specifications:

• Capacity: 6,000 lbs.
• Minimum Width: 35"
• Maximum Width: 55"
• Distance Between Runway Capability: 32" - 52"
• Minimum Lifting Height: 8 1/4"
• Maximum Lifting Height (with Adapters): 21"
• Air Requirement: 70-115 PSI
• Shipping Weight: 350 lbs.
• Adapter Heights: (2) 2", (2) 3"
• Arm Hole/Adapter Peg Size: 1 1/2"

Why Choose the Atlas® 412A Lift + RJ6 Combo?

• Versatile Service Capabilities
  • Designed for both general maintenance and precision alignment.
• Ideal for Professional Shops
  • High-quality build ensures durability and efficiency.
• All-In-One Package
  • Includes everything needed for installation and operation.
• Reliable & Safe
  • Slip plates, turntables, and locking systems ensure accuracy and security.
• Easy Offloading
  • A forklift is required for safe and efficient unloading from the delivery truck.
