CORGHI Artigilo 5000 Touchless Tire Changer w/Helper Arm

SKU: 443-18834
(0)No Reviews yet

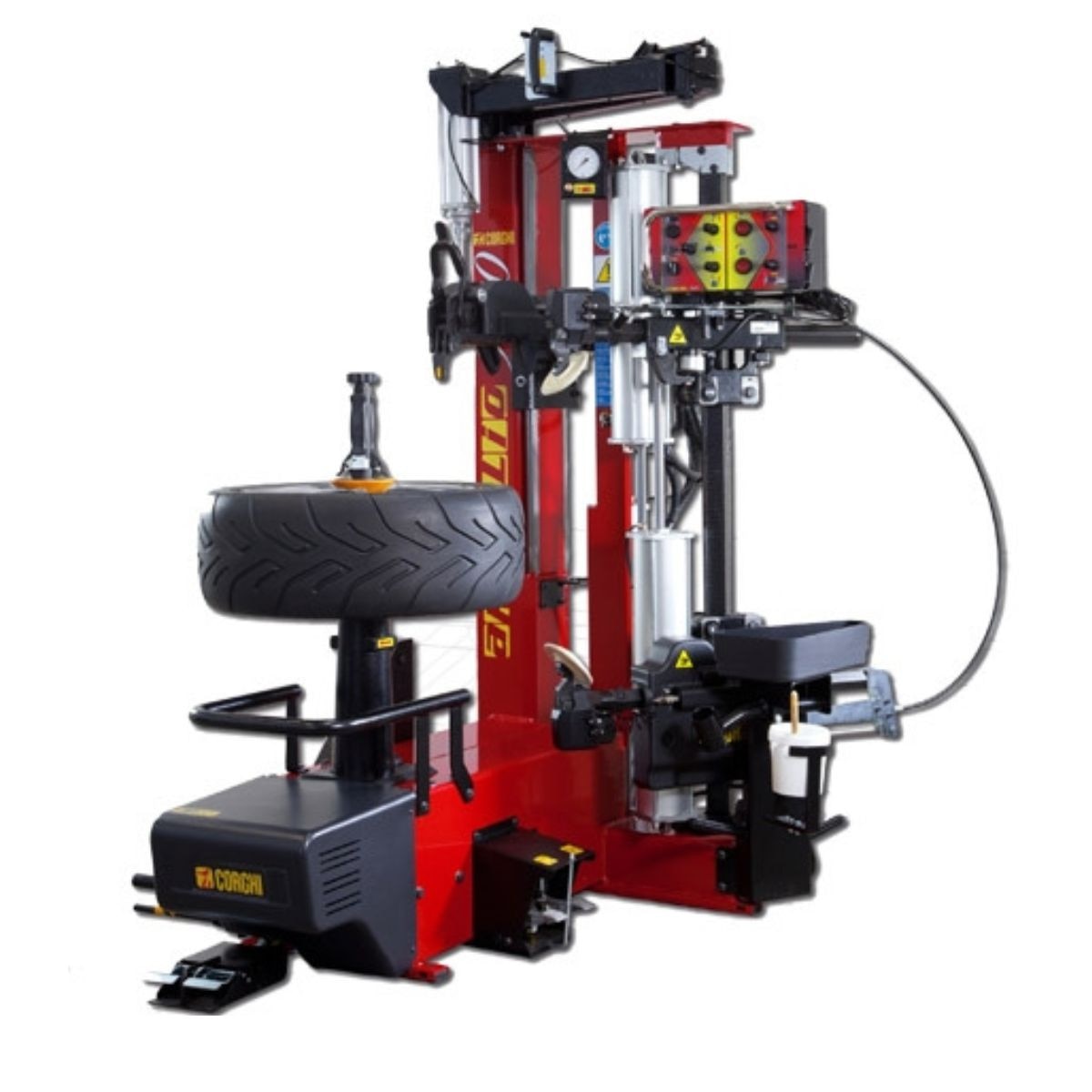

CORGHI Artiglio 5000 Automatic Tire Changer

The CORGHI Artiglio 5000 sets a new standard in tire-changing technology with its 3rd generation "Leva la leva" (leverless) functionality. Designed for vehicles, SUVs, and commercial vehicles with wheels up to 30 inches, this tire changer ensures unmatched efficiency, safety, and ease of use. Its Lite Smart CORGHI SYSTEM minimizes tire stress and offers a TOUCHLESS rim experience, safeguarding rims during operation.

Key Features:

  • Revolutionary "Leva la leva" Technology: Enables leverless tire removal for smoother, safer operations.
  • Lite Smart CORGHI SYSTEM: Reduces stress on tires while protecting rims from contact.

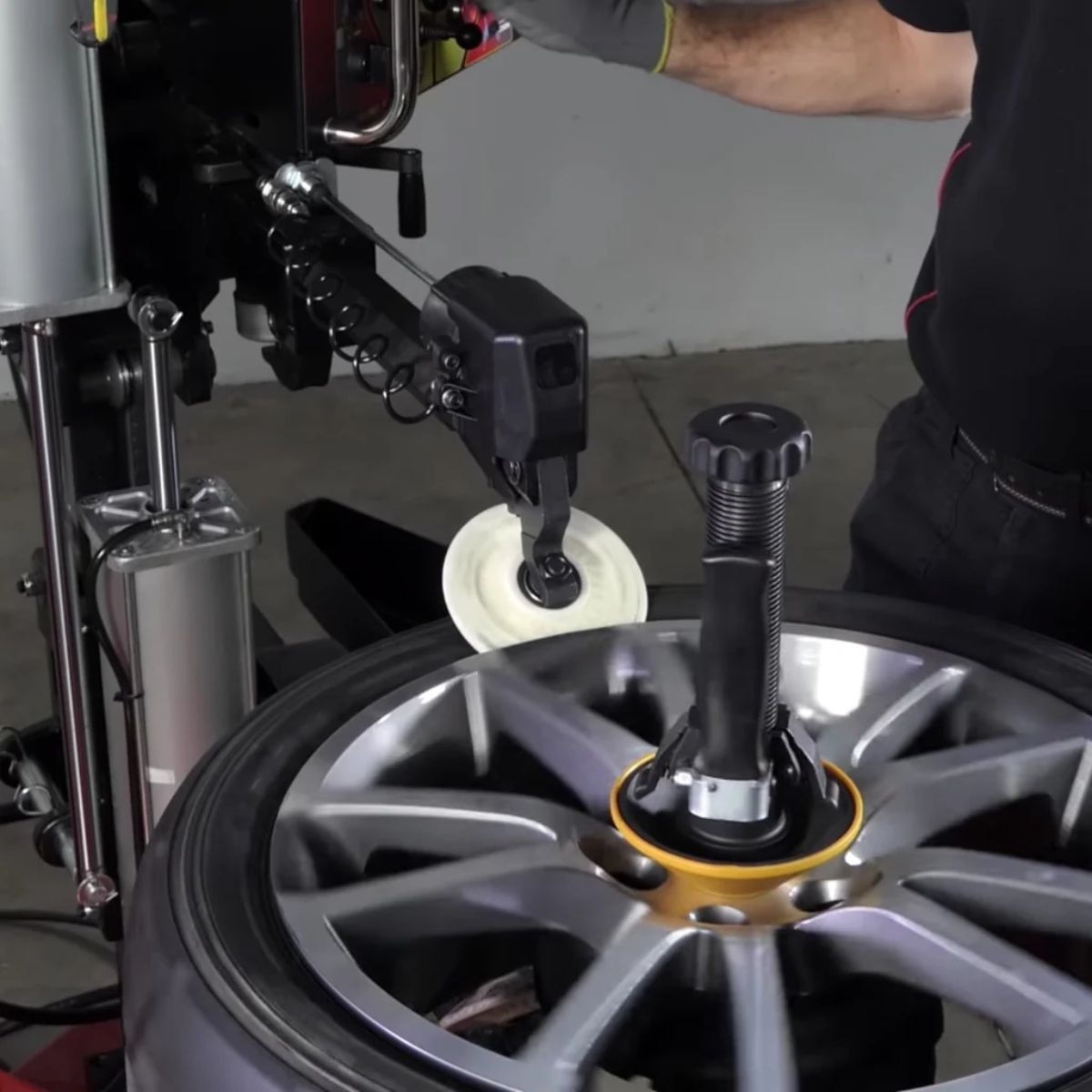

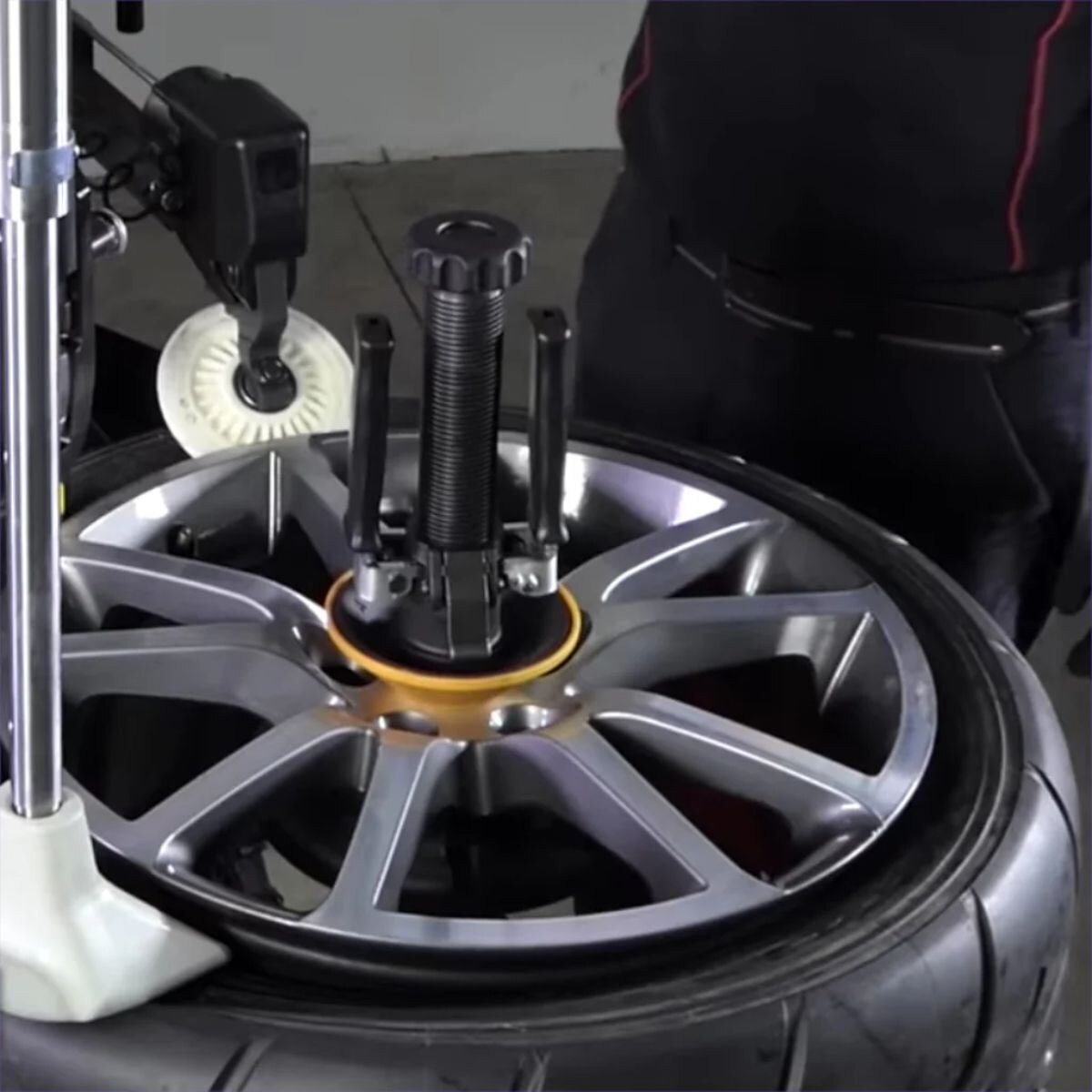

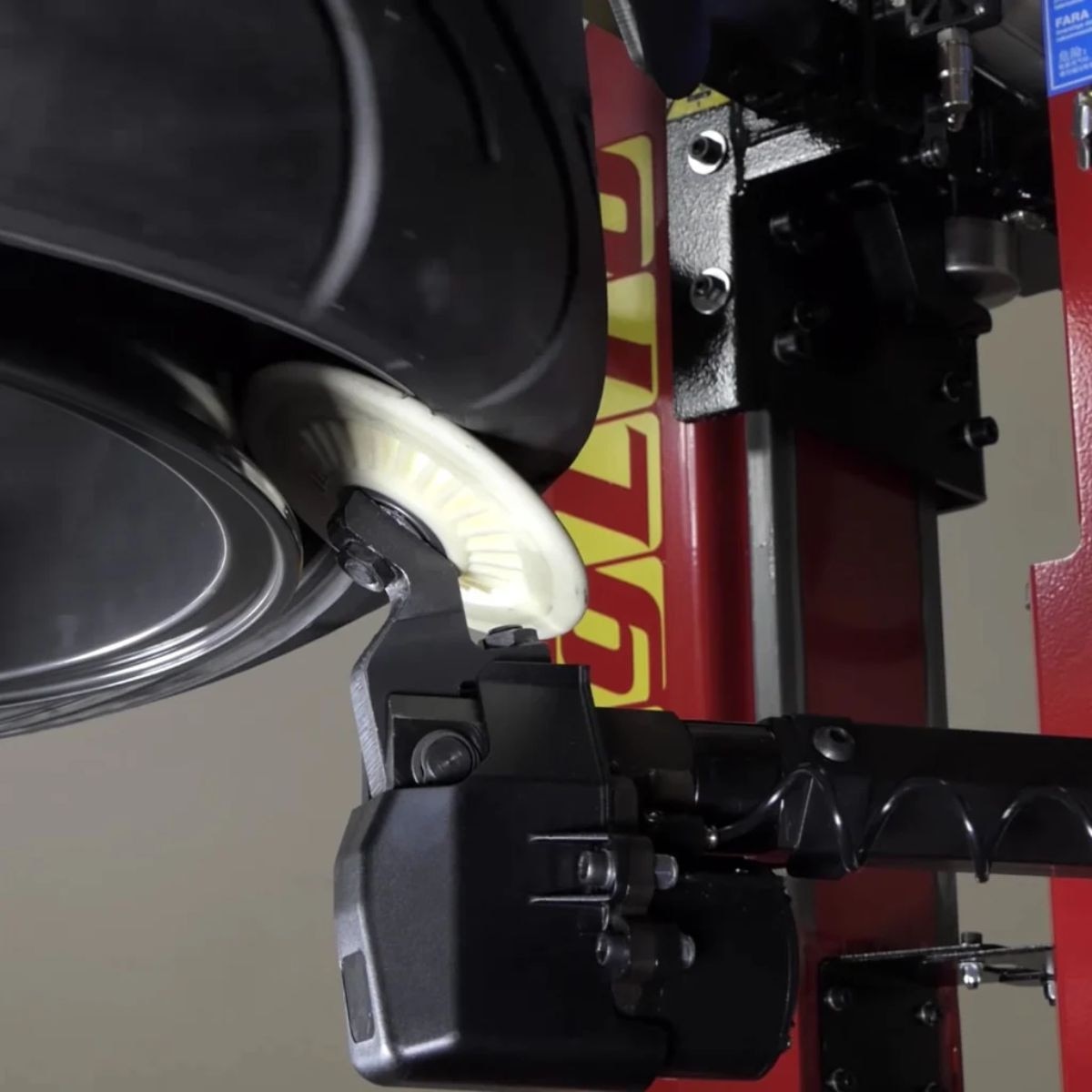

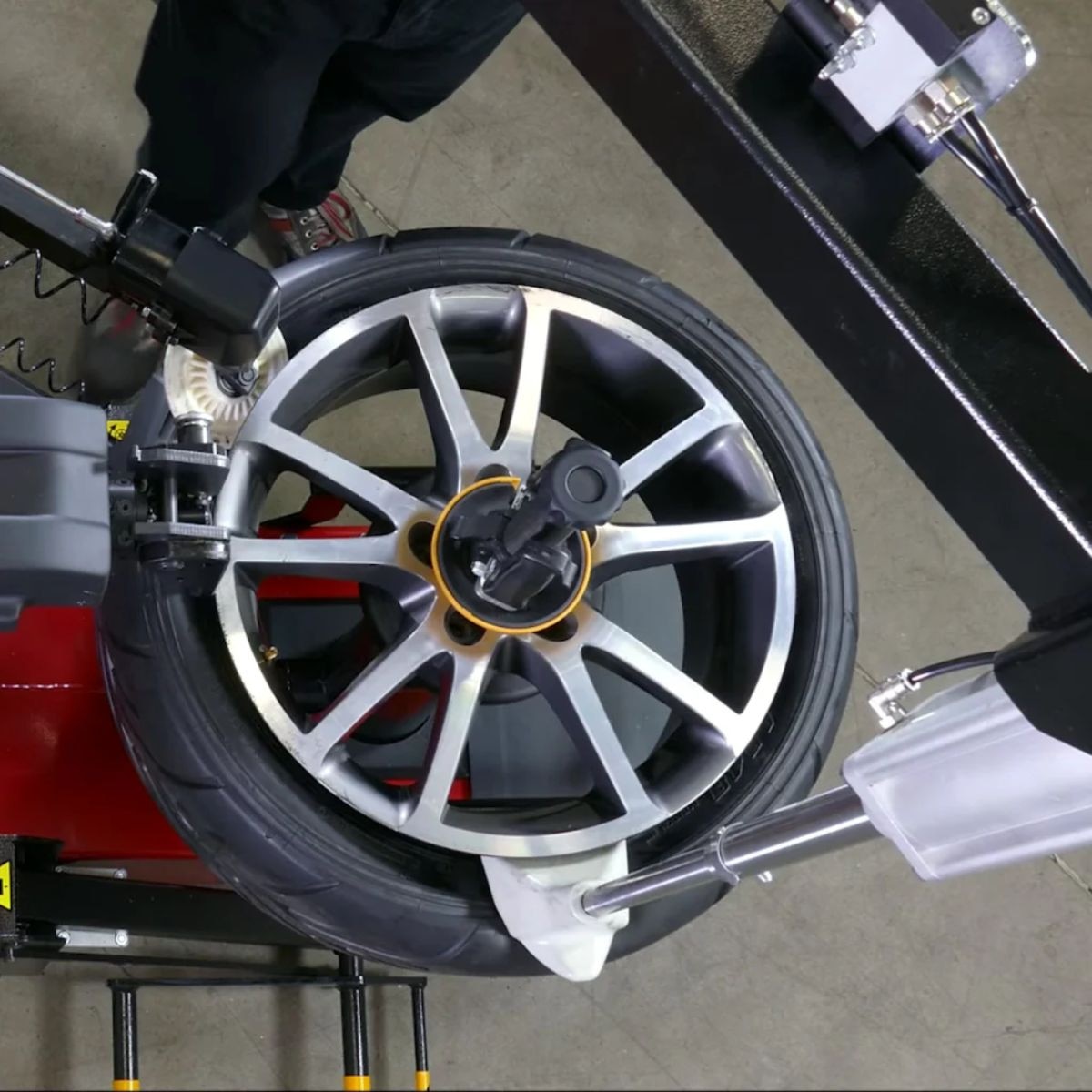

  • Dynamic Bead Breaking Device: Dual-specular bead breaker discs deliver precision and efficiency.

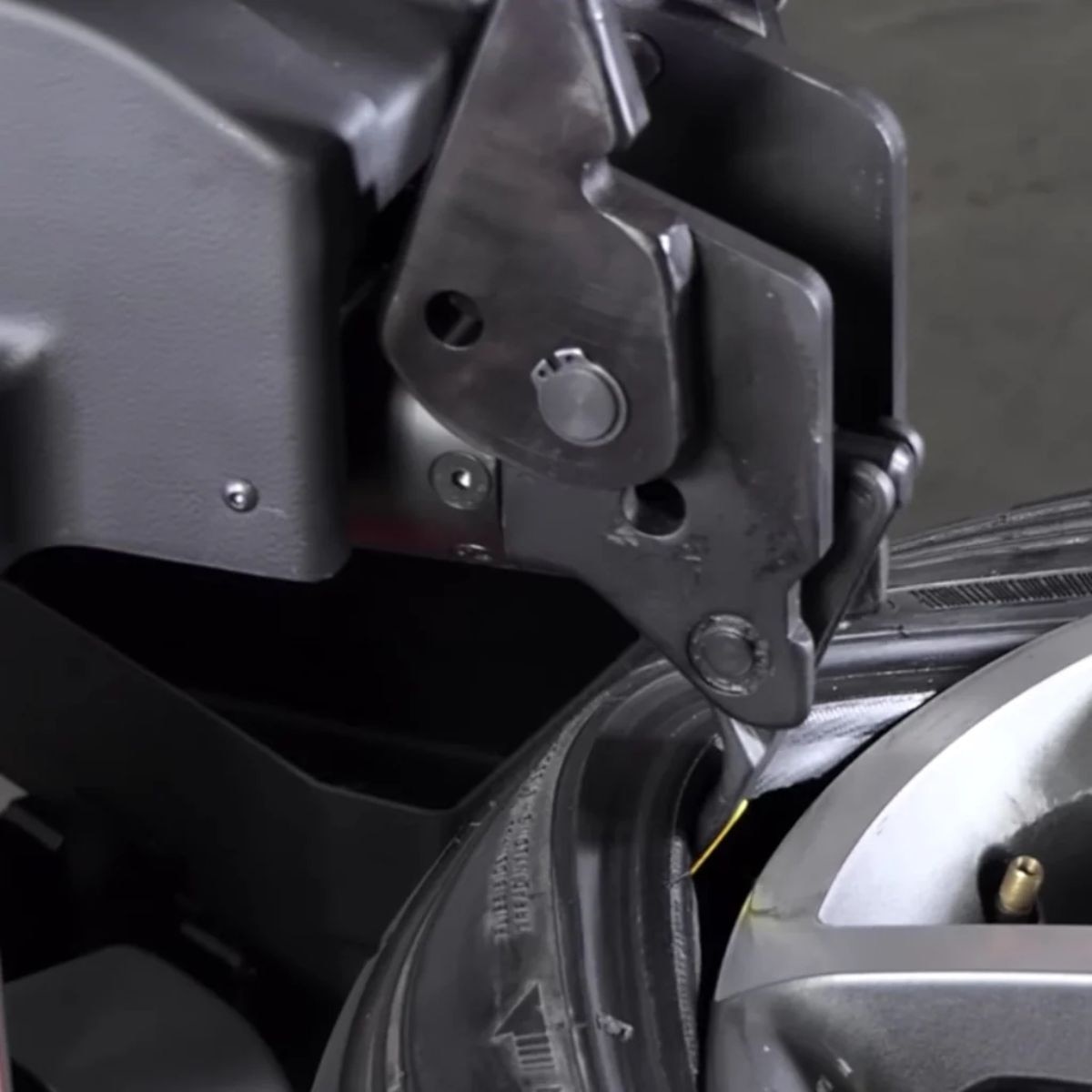

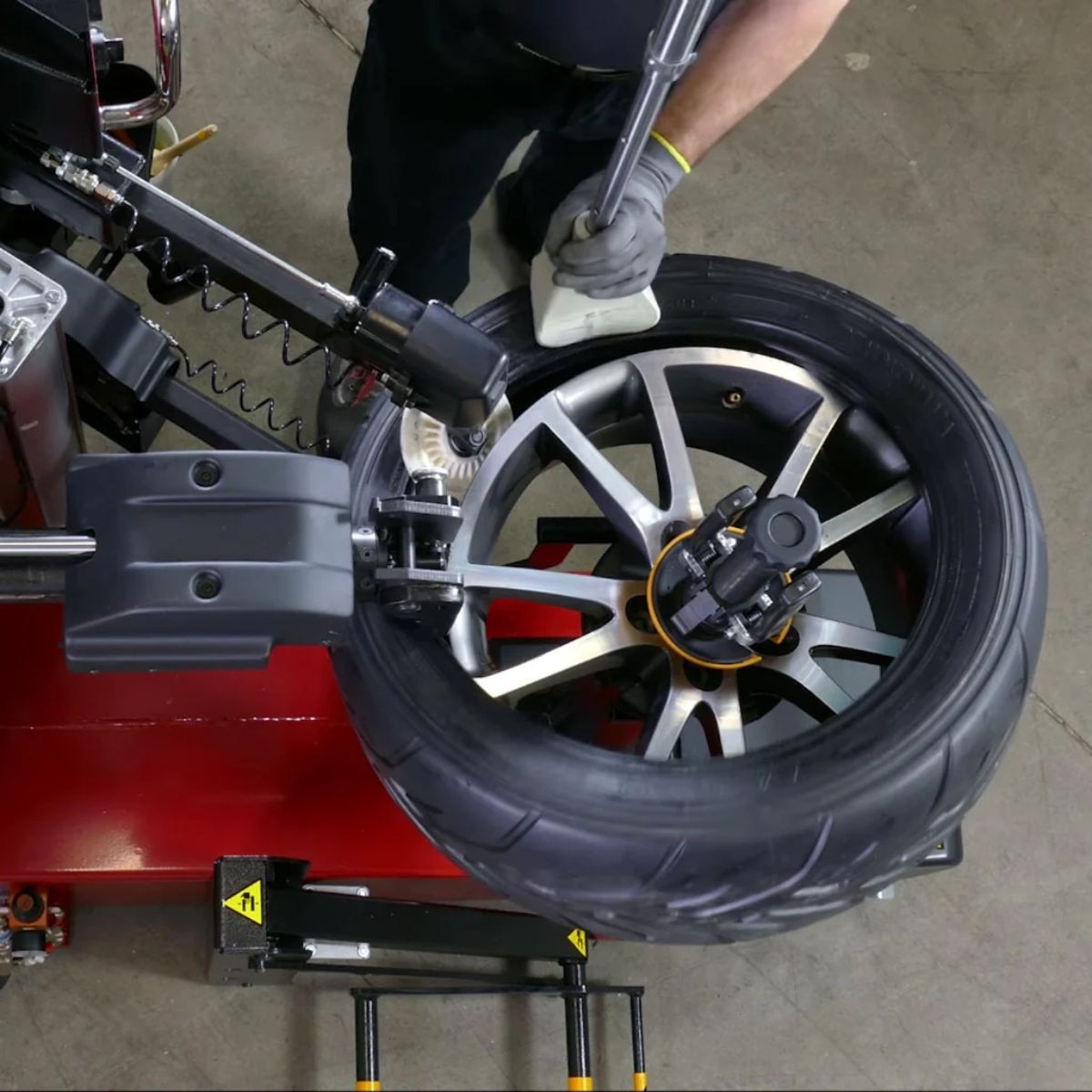

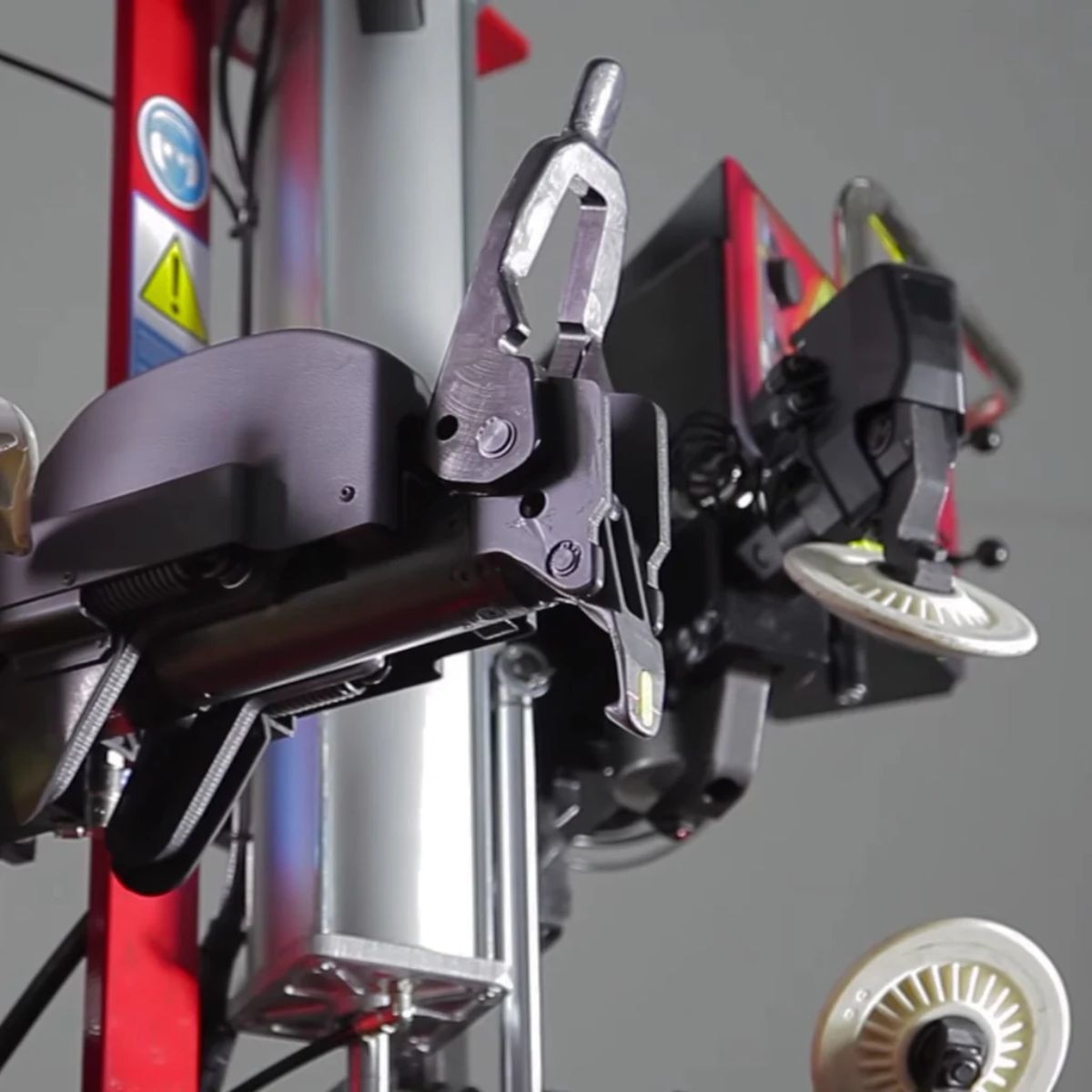

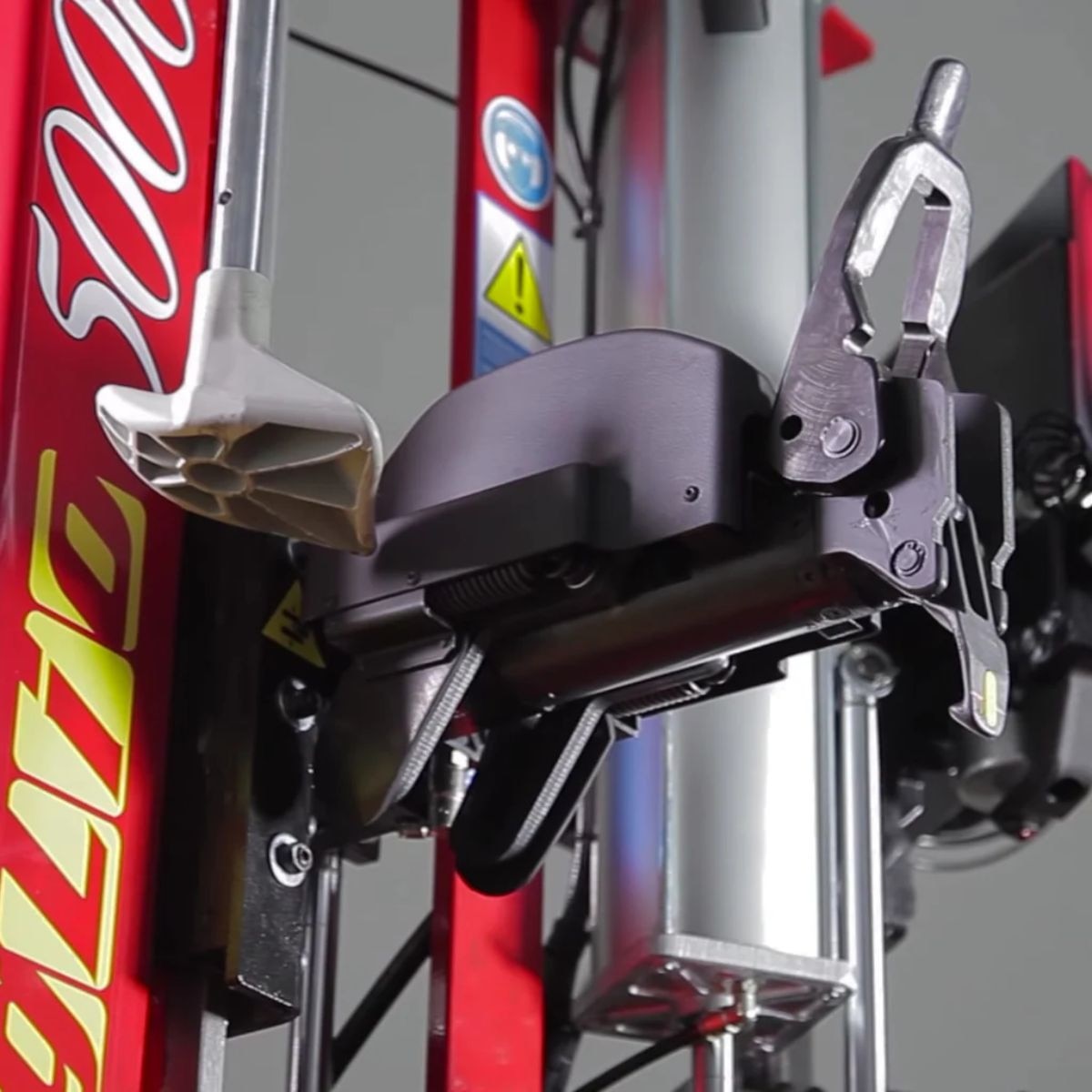

  • TOUCHLESS Mounting and Demounting Head Unit: Ensures stress-free handling without rim contact.

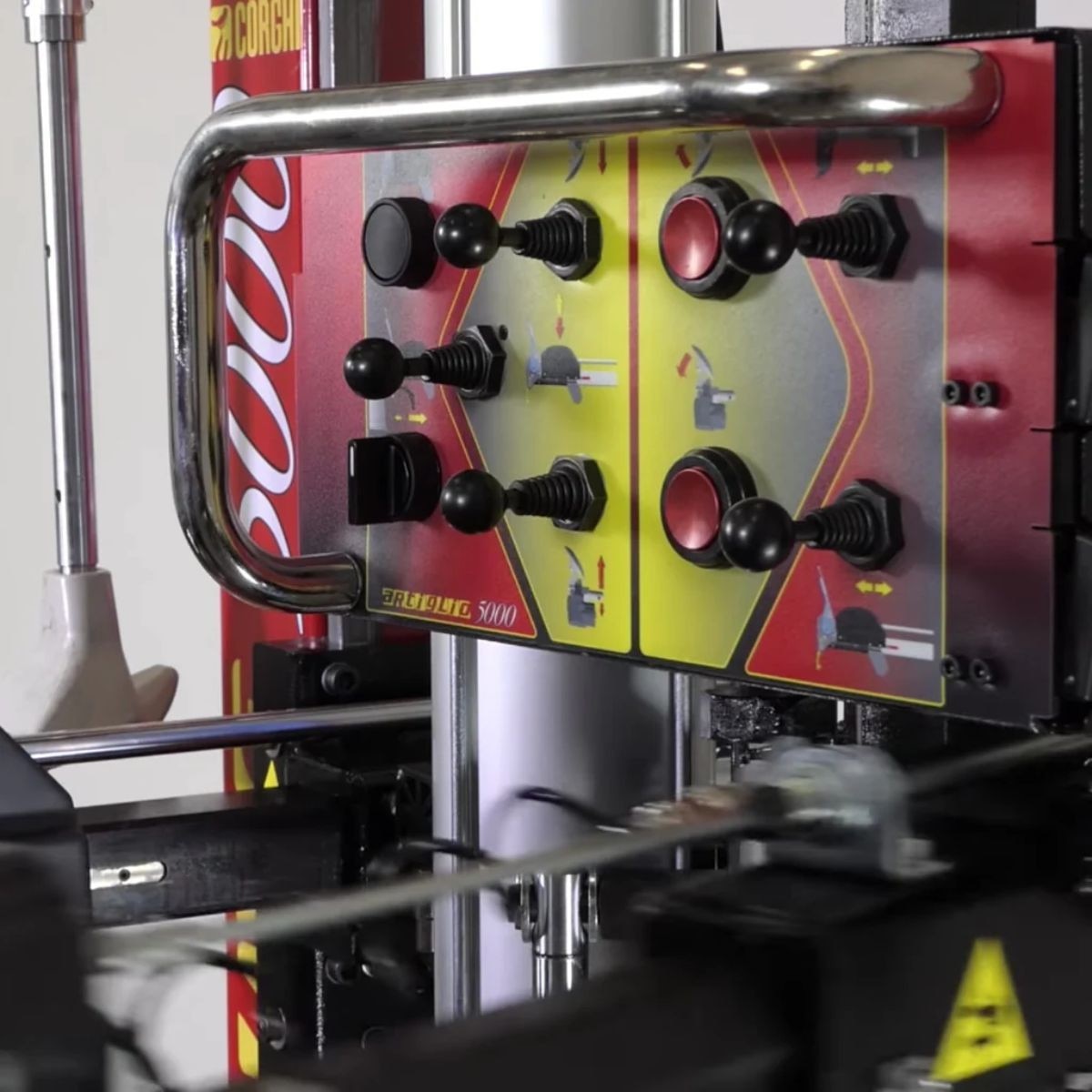

  • User-Friendly Controls: Intuitive and ergonomically designed console.
  • Heavy-Duty Construction: Built for professional, long-lasting performance.
  • Versatility: Handles conventional, low-profile, and Run Flat tires.

Technical Specifications:

Wheel Dimension Range:

  • Rim Diameter: 12” to 30”.
  • Maximum Tire Diameter: 47.2” (1200 mm).
  • Maximum Tire Width: 15” (from wheel support surface).

Tire Types Processed:

  • Conventional, Low Profile, and Run Flat.

Turntable:

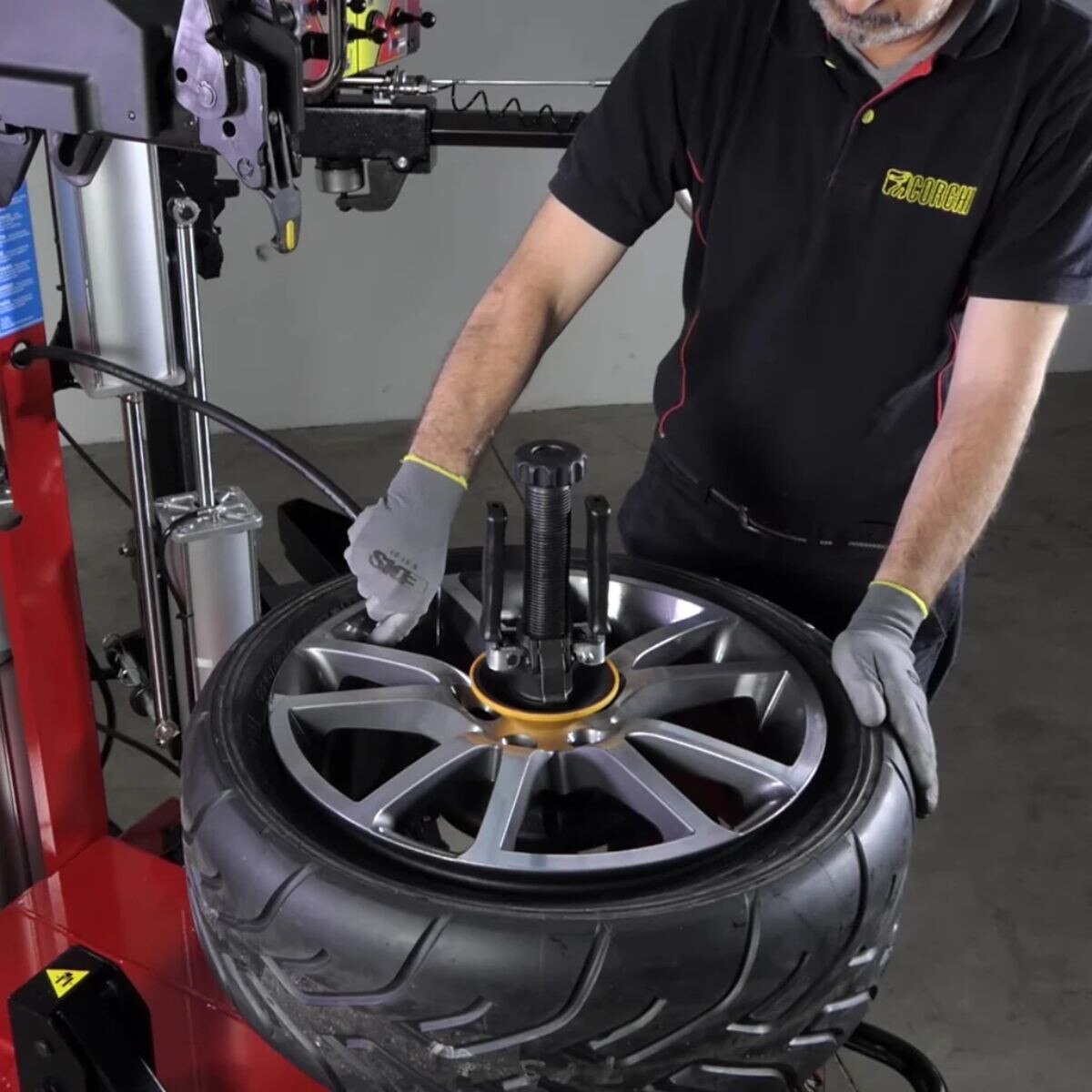

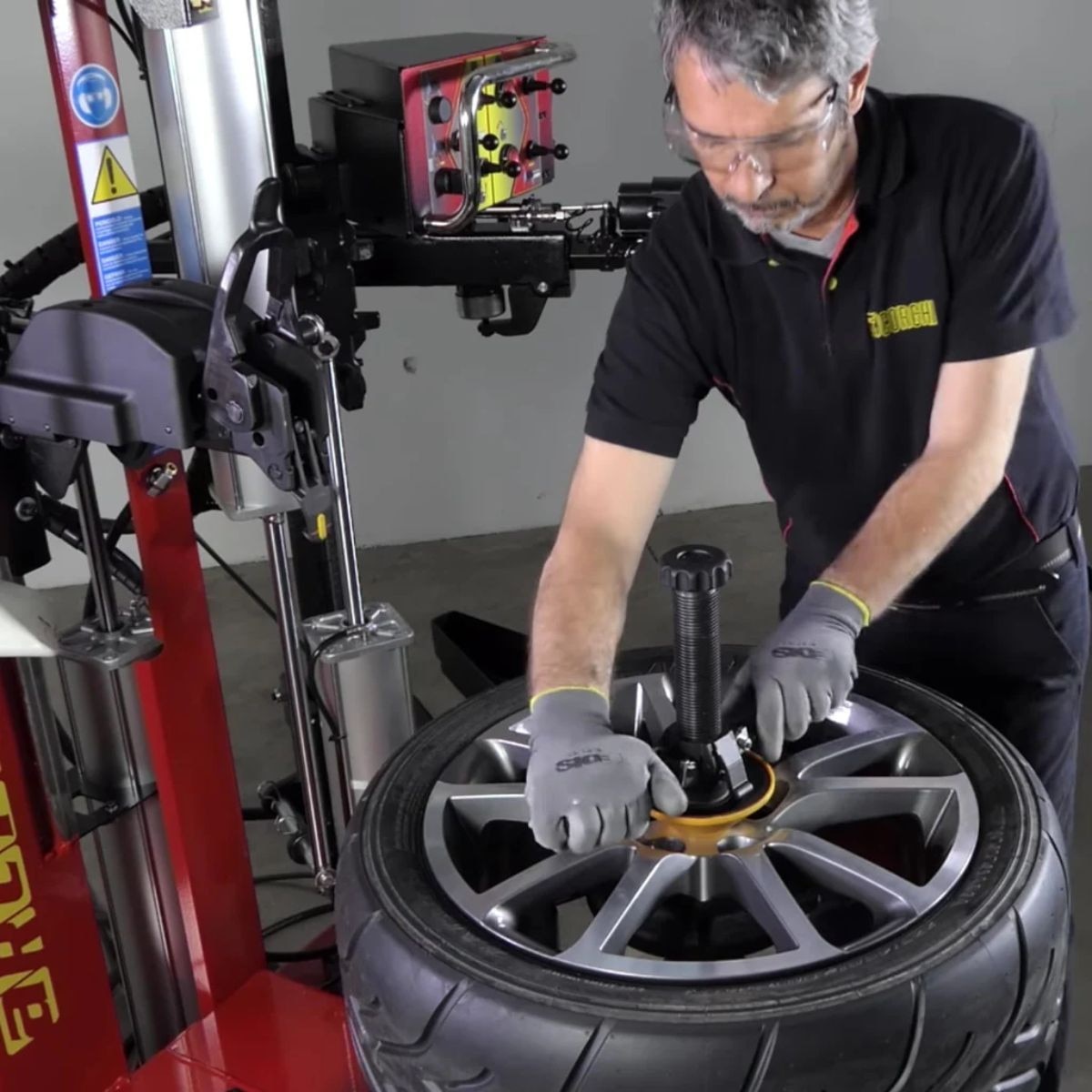

  • Clamping: Mechanical/Manual.
  • Drive System: 2-speed Moto-Inverter.
  • Rotation Torque: 811.8 ft/lbs (1100 Nm).
  • Rotation Speed: 7–18 rpm.

Bead Breaker:

  • Maximum Bead Breaking Range: 26.4” (670 mm).
  • Bead Breaker Stroke: 21.3” (540 mm).
  • Bead Breaking Force: 1710 lbf (7600 N).

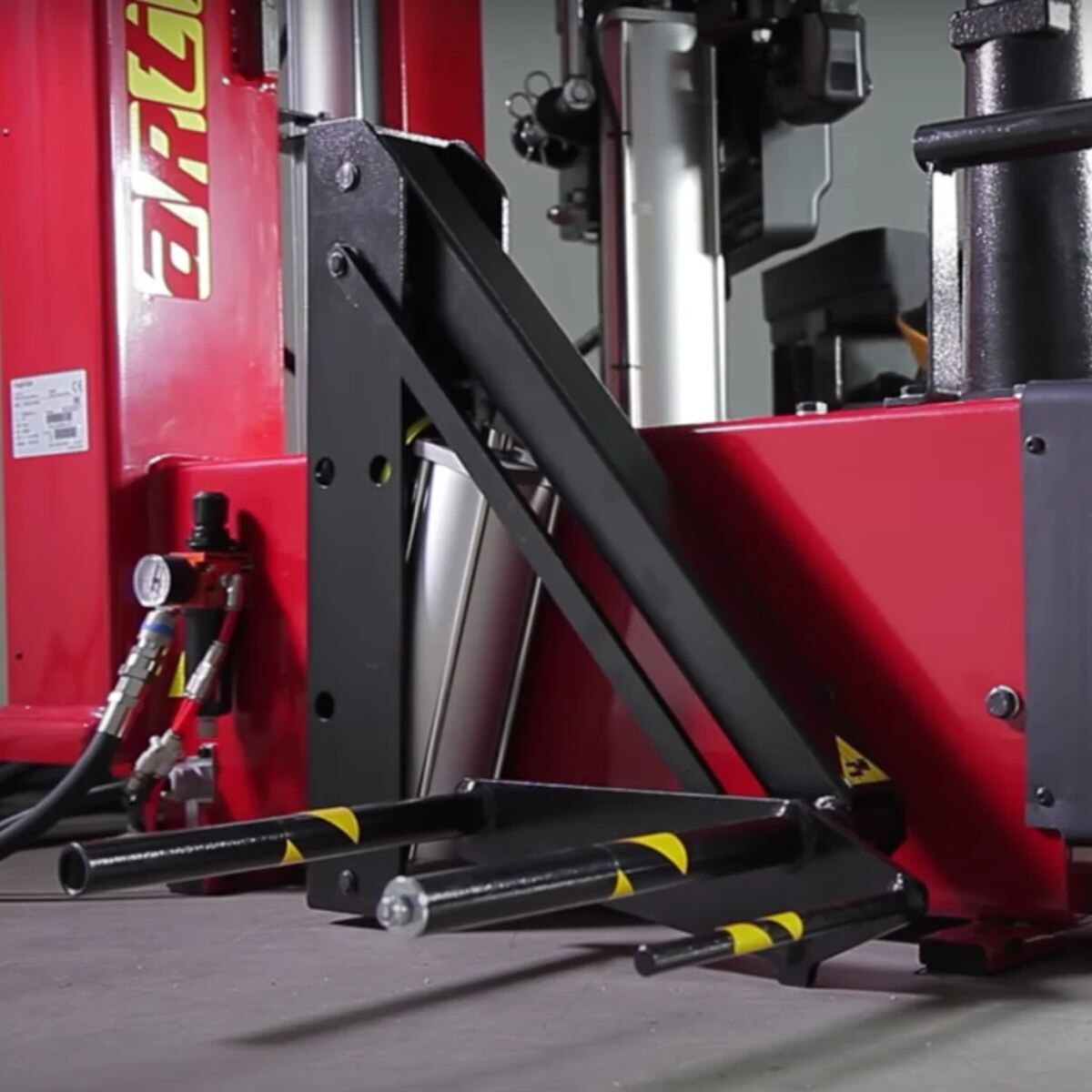

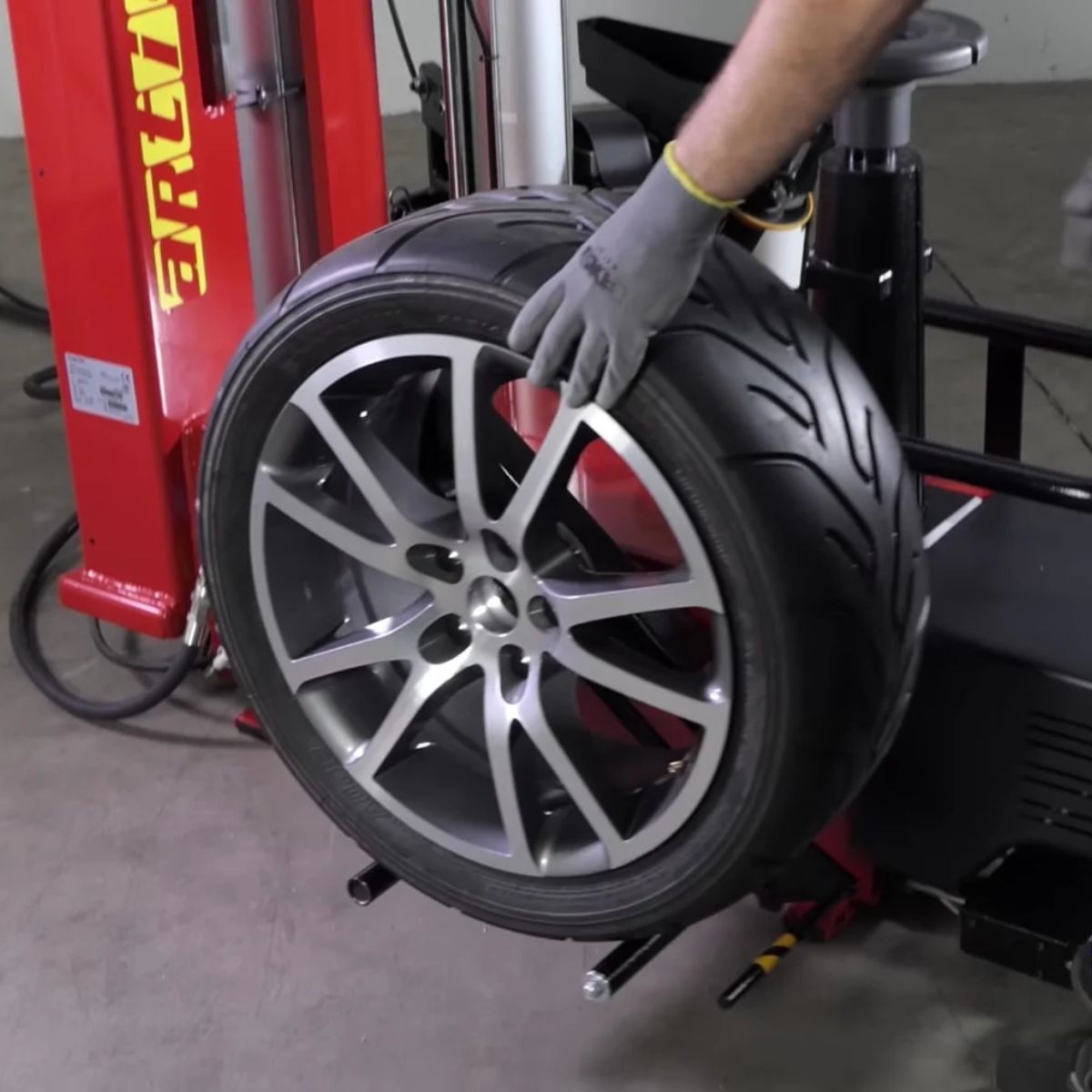

Wheel Loading/Unloading:

  • Drive: Pneumatic.
  • Maximum Wheel Weight: 187.4 lbs (85 kg).

Power Supply:

  • Electric 1Ph: 230V-0.98 kW, 50/60 Hz.
  • Alternative: 110V-0.98 kW, 50/60 Hz.

Pneumatic Operating Pressure:

  • Minimum 116 PSI (8 bar).

Weight (with wheel lift):

  • 683.4 lbs (310 kg).

Accessories on Request - Accesorios Bajo Pedido:

  1. Pick-up Rim Kit - Kit Llantas Furgón.
  2. Universal Flange for Close Center Rims - Brida Universal para Llantas sin Agujero Central.
  3. Reverse Wheel Flange - Brida para Ruedas de Canal Invertido.
  4. TI System Kit - Kit Entalonadura Rápida: TI System.
  5. Pax System Kit - Kit para Ruedas Pax System.
  6. Lower View Camera and Electronic Inflating Device - Kit Cámara + Inflatron (puede pedirse sólo con la máquina).

Warranty:

  • 3 Years Parts Warranty: Comprehensive coverage for all parts.
  • 1 Year Labor Warranty: Additional support for your investment.
