AFF 22-Ton Air/Hydraulic Axle Jack

SKU: 302-56502
(0)No Reviews yet


22 TON AIR ASSIST
TRUCK AXLE JACK - 1 PC HANDLE

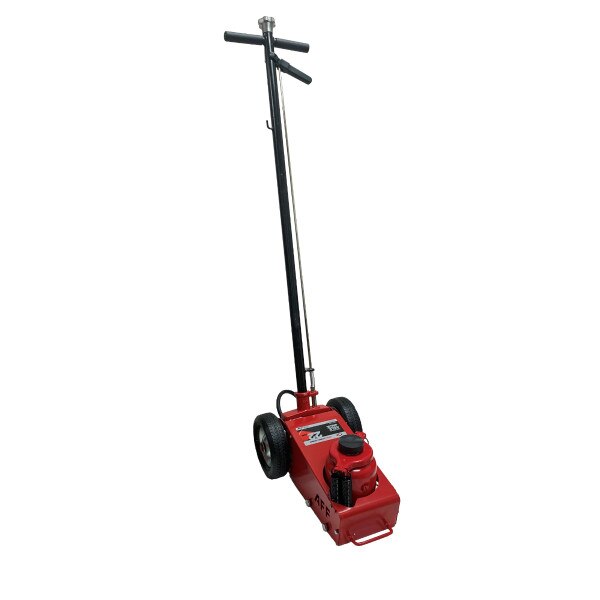

AFF 565F1 22-ton axle jack features air assist operation and a self-retracting spring return. Its heavy- duty design is ideal for truck and trailer shops, rail and bus work, roadside service calls, and much more.

Specially engineered air motor delivers fast and efficient operation
Long T-handle design allows easy access to vehicles with long overhangs
Large 8” diameter rubber wheels provide effortless travel in the shop or roadside
Fully welded hydraulic pump and cylinder delivers maximum strength and leak free operation
Heavy-duty wiper seals protect the system from contaminants and ensures long service life
Overload safety valve provides added operator safety

Model: 565F1
Capacity: 22 Tons
Ram Lift: 4-3/4"
Low Height: 8-1/4"
High Height w/ Extensions: 21-1/2"
Weight: 99lbs
