55-Ton Tall HD Lightweight Hydraulic Jack for Heavy-Duty

55 Ton Tall Heavy-Duty Hydraulic Jack
Model #10312

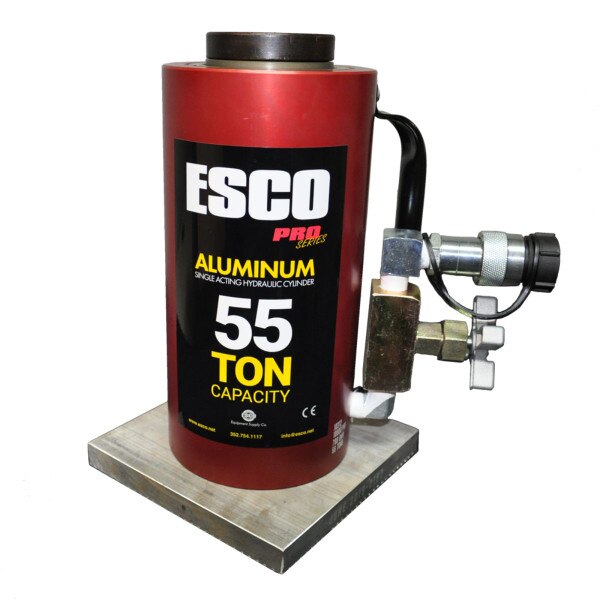

The ESCO Hydraulic 55 Ton Tall Jack is built for demanding off-highway tire work, offering exceptional strength, reliability, and ease of use. Crafted from lightweight aluminum, this jack provides heavy-duty performance without the bulk. It’s suitable for a variety of applications, including OTR, mining, agricultural, and construction environments.

Features & Benefits:

• Lightweight & Durable Construction: Made from aluminum for easy handling and long-term durability.
• High Performance: Designed for use with 10,000 PSI pumps, ensuring consistent and reliable lifting power.

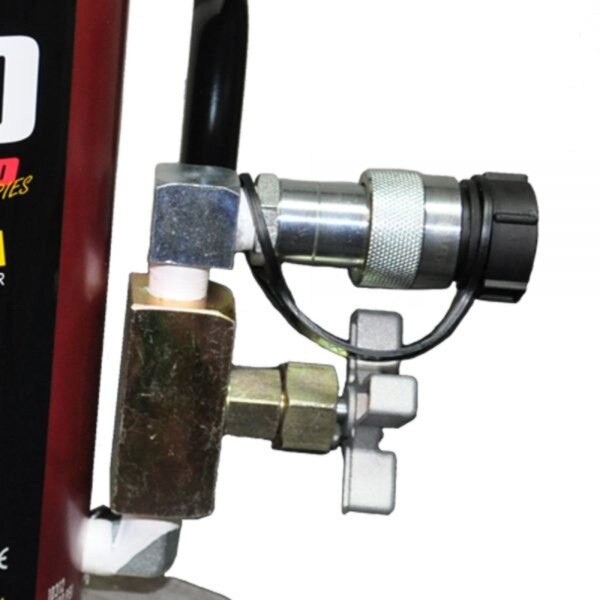

• Complete Assembly: Comes fully assembled with a valve, coupler, and 8" x 8" base plate for immediate use.
• Heavy-Duty Design: Features a robust 11/16" cylinder wall to withstand intense working conditions.
• Ideal Applications: Perfect for heavy equipment maintenance, large tire changes, and demanding industrial tasks.

Specifications:

• Lifting Capacity: 55 Tons
• Stroke: 6 in. | 152mm
• Max Pressure: 10,000 PSI
• Minimum Height (Including Base Plate): 12 in. | 308mm
• Maximum Height (Including Base Plate): 18 in. | 460mm
• Saddle Diameter: 3 in. | 79mm
• Cylinder Width: 5.25 in. | 133mm
• Cylinder Wall Thickness: 11/16 in. | 17mm
• Base Plate Dimensions: 8 x 8 in. | 203 x 203mm
• Weight: 33 lbs. | 15 kg
• Warranty: 3 years (registration required for warranty extension)
• UPC: 816904021696
