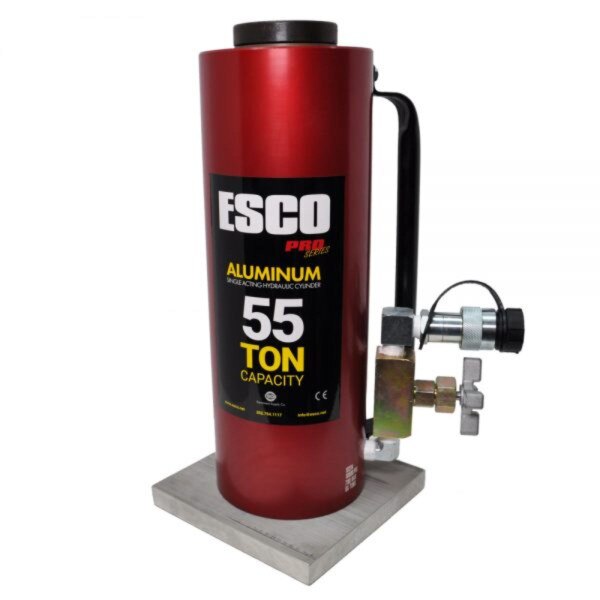

55-Ton High Lift HD Lightweight Hydraulic Jack

55 Ton High Lift Hydraulic Jack
Model #10314

The ESCO Hydraulic 55 Ton High Lift Jack is engineered for demanding mining applications, offering exceptional performance and reliability. Its lightweight aluminum construction ensures easy handling, while maintaining heavy-duty capabilities. Ideal for OTR tires, mining, agricultural, and construction needs, this jack provides the high lift capacity needed for challenging tasks.

Features & Benefits:

• Robust Capacity: Capable of handling loads up to 55 tons with a high lift range.
• Durable & Lightweight: Aluminum and steel construction for a perfect balance of strength and portability.
• Ready to Use: Fully assembled with valve, coupler, and an 8" x 8" base.
• High-Pressure Compatible: Designed for 10,000 PSI hydraulic systems.
• Heavy-Duty Cylinder Wall: 11/16" thick wall ensures long-lasting performance.

Specifications:

• Capacity: 55 Tons
• Stroke: 6 in. | 152mm
• Maximum Pressure: 10,000 PSI
• Minimum Height (Including Base Plate): 16 in. | 411mm
• Maximum Height (Including Base Plate): 26 in. | 662mm
• Saddle Diameter: 3 in. | 79mm
• Cylinder Width: 5.25 in. | 133mm
• Cylinder Wall Thickness: 11/16 in. | 17mm
• Base Plate Dimensions: 8 x 8 in. | 203 x 203mm
• Weight: 41 lbs. | 19 kg
• Warranty: 3 years (with product registration)
• UPC: 816904021702

Safety Note:
WARNING: This product contains chemicals known to the State of California to cause cancer or birth defects and/or other reproductive harm.
